Temperature range | Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters | Dimensions | 129 x 268 x 35 mm | |
Material | Aluminum/ABS plastic | ||
Colour | silver (frontpanel)/ RAL 9001 (body) | ||
Fixation method | screws | ||
Colour of LC adapters | blue (UPC), green (APC), aqua (OM3), magenta (OM4) | ||
Capacity | 12 fibers | ||
Cable entry | 5mm speed pipe (from MTCD) | ||
Optical performance | IL<0,25dB per connector, (@1310/1550nm) RL>50dB (UPC), RL>60dB (APC) per connector, (@1310/1550nm) | ||
| Identification | Label with serial number | ||
| Packaging | Each module in cardboard box, bulk pack in master cardboard box | ||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |

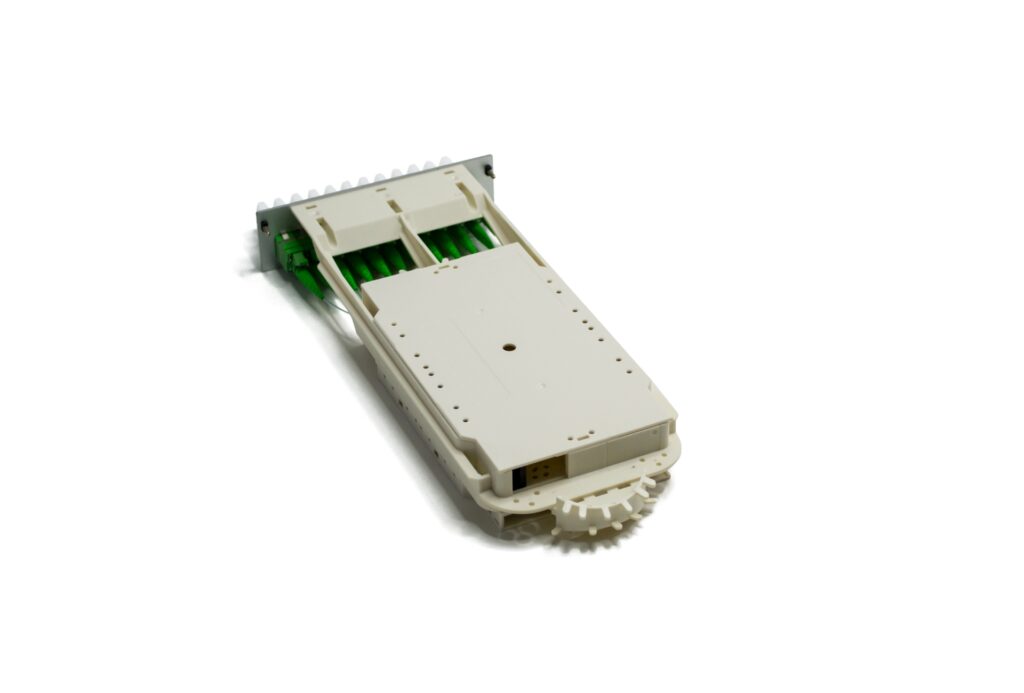

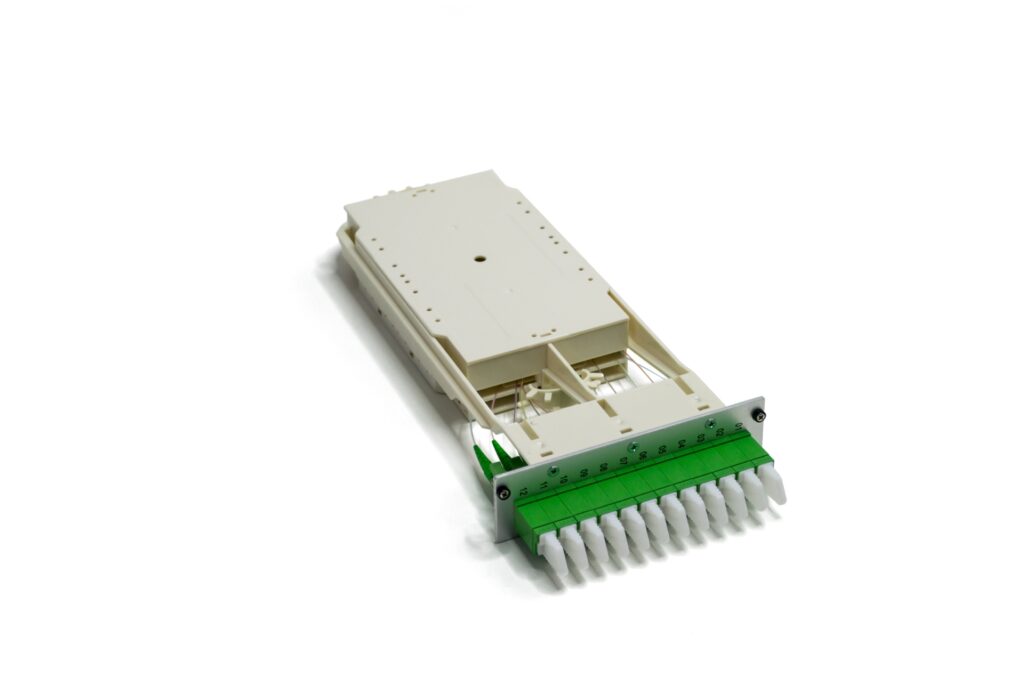

| Wendy splice module 12x E2000 (12xE2000/UPC OS2 pigtail) | W129-ESX-ALM |
| Wendy splice module 12x E2000 (12xE2000/APC OS2 pigtail) | W129-CSX-ALM |
| Wendy splice module 12x E2000 (12xE2000/PC OM3 pigtail) | W123-ESX-ALM |
| Wendy splice module 12x E2000 (12xE2000/PC OM4 pigtail) | W124-ESX-ALM |
