MPO/MTP® Interconnections

MTP to MTP trunk cable

MTP to LC Duralino fanout

MTP to LC Uniboot fanout

MTP to LC direct split

MTP panel system

40G to 10G fanout

100G to 10G fanout

100G to 40G fanout

Products

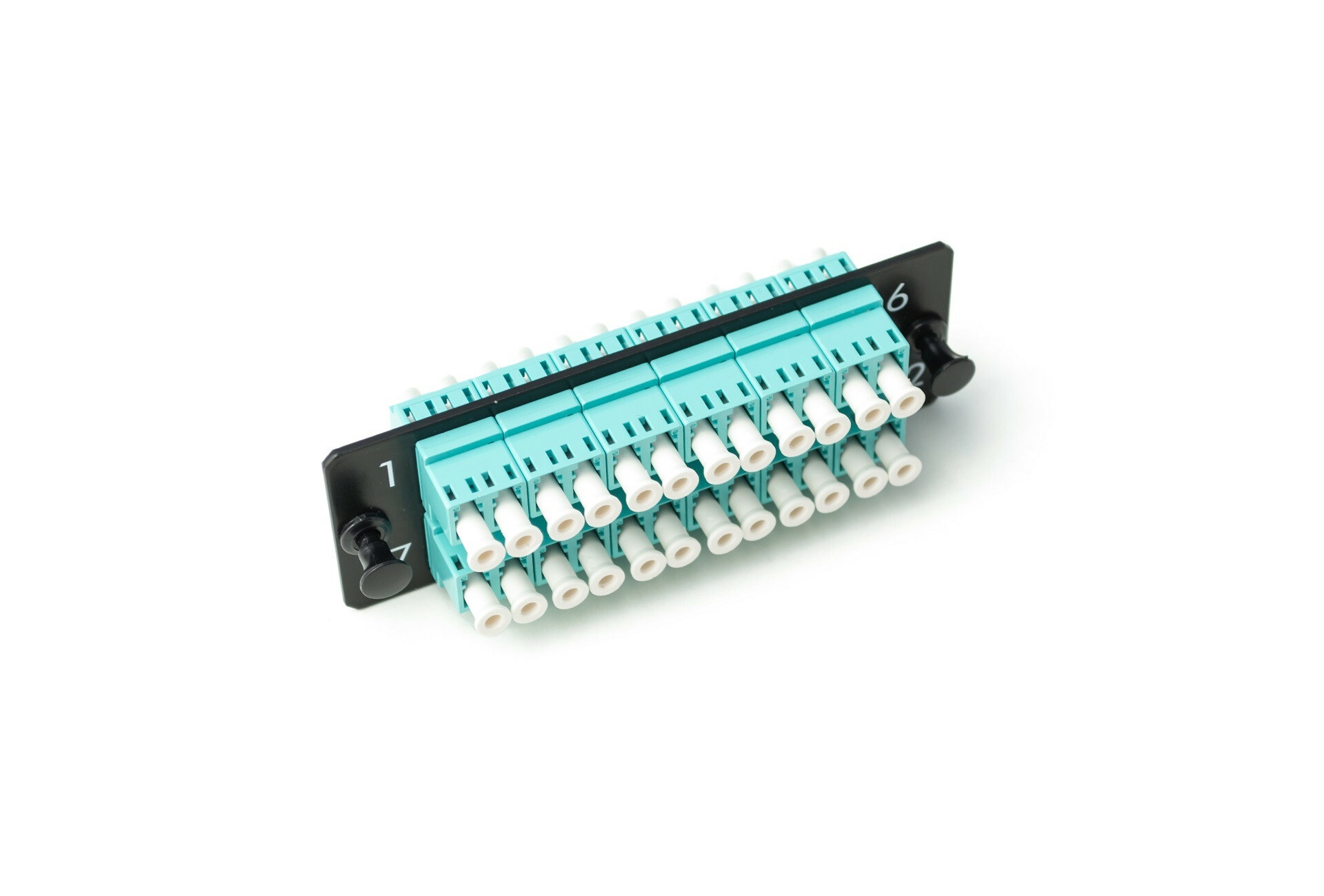

12xLC duplex adapter plate

Adapter plate loaded with 12xLC duplex adapters for direct patching of LC preterm cables to additional extention LC cables.

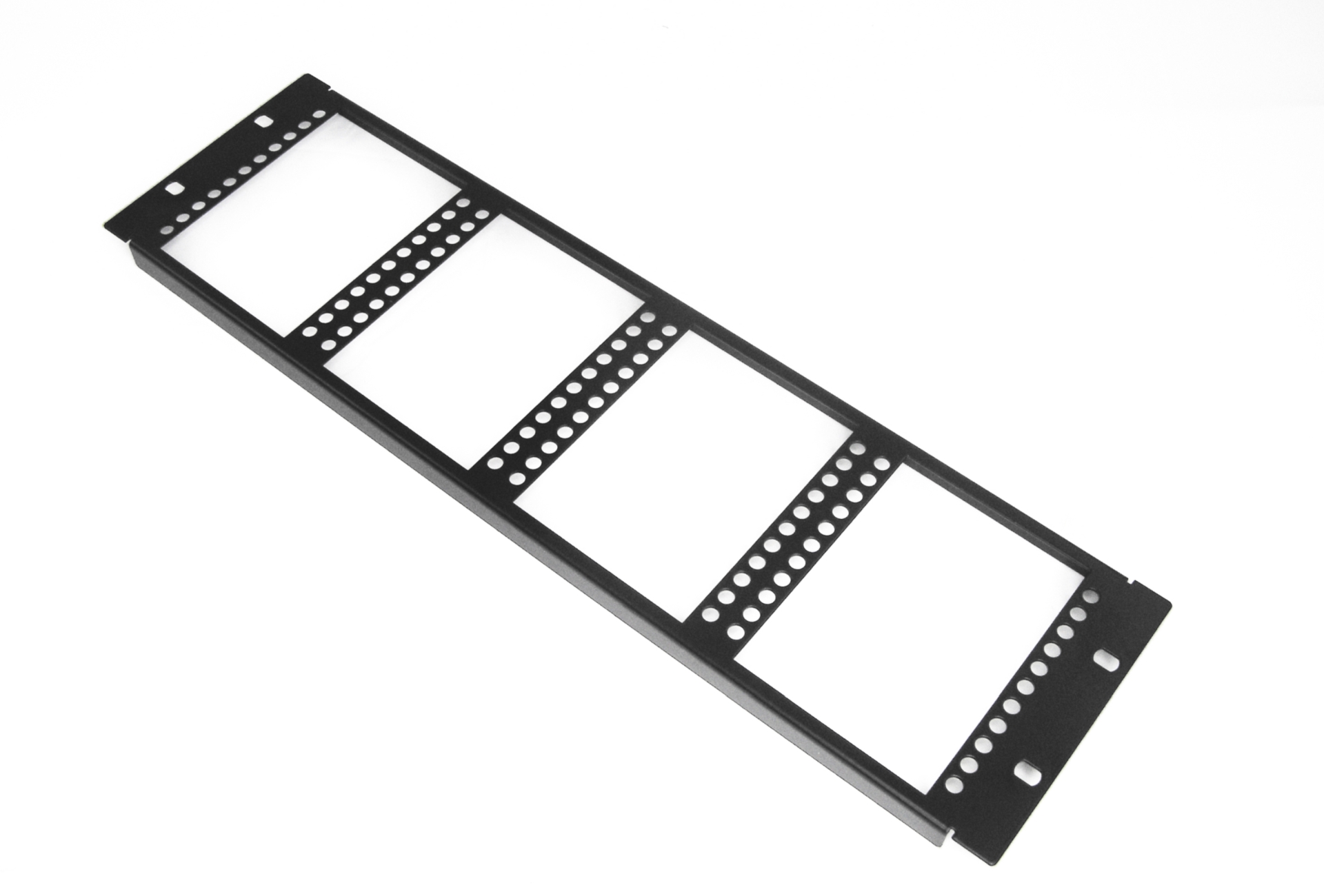

19″ frame holders

Simple holder for 12 or 24 P&P Modules and stable modules support. Fast deployment and modular solution for rack fixing of P&P modules.

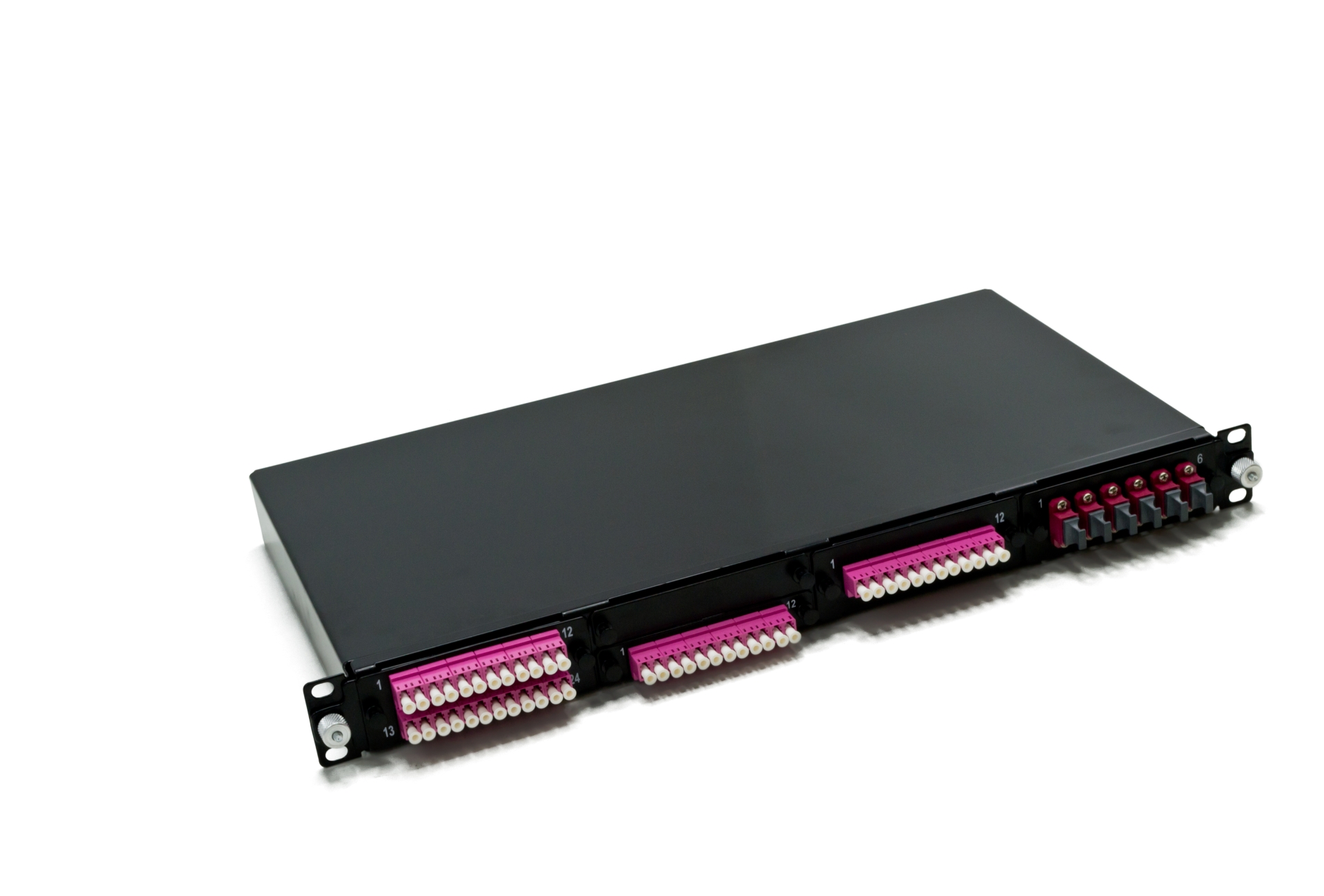

1U 19″ panel, 4 module capacity

1U Plug & Play panel with capacity of 4 standard size modules is modular time and space saving solution for DataCenters. Panel is designed to accommodate up to 96 connections based on 4×24-fiber modules or 8×12-fiber half-size modules, both with LC connectors.

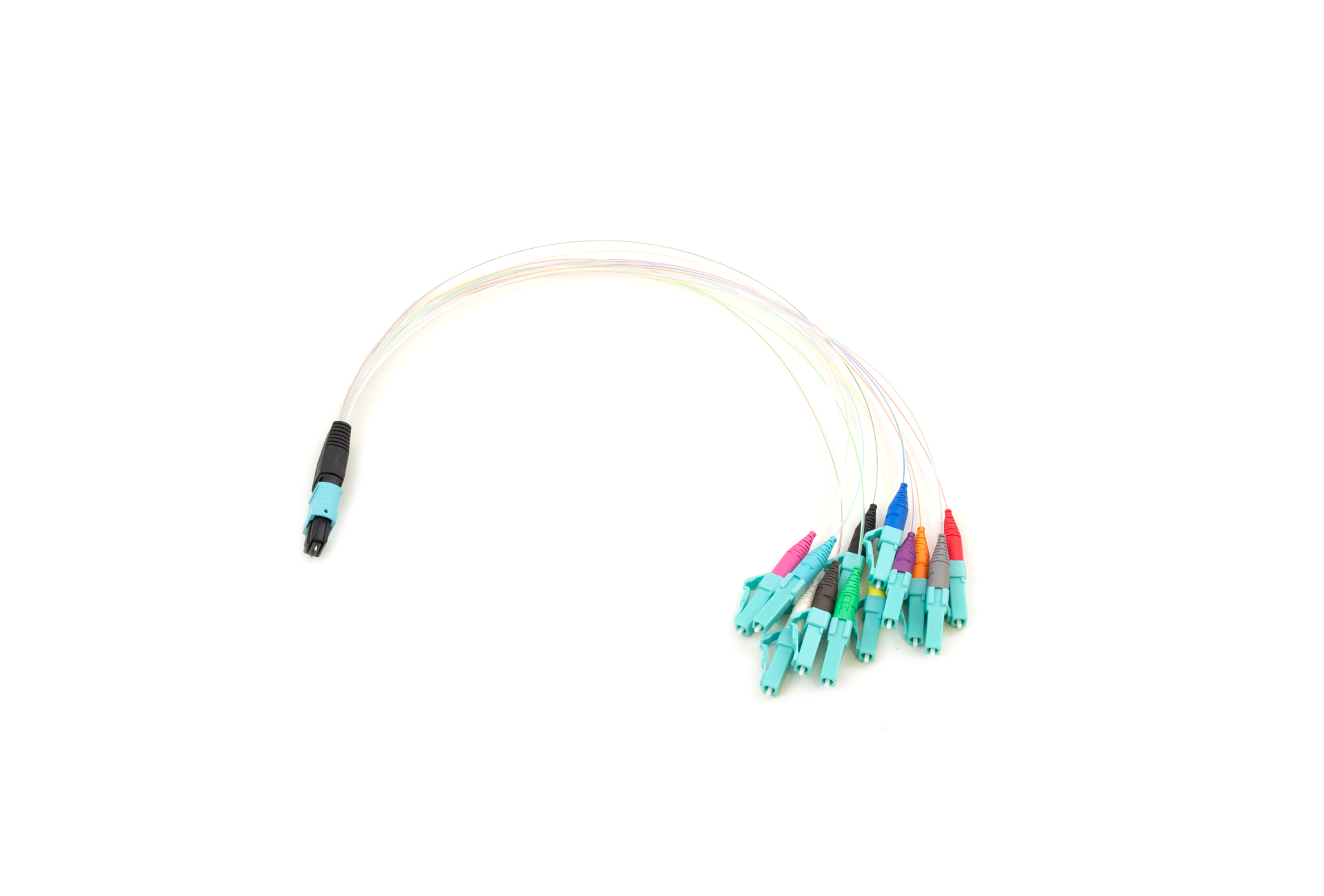

1x12f MTP to 12xLC 900um 12-fiber direct split

MTP-LC 12-fiber direct split (MTP to LC trunk) is suitable product for data-center applications. It is typically mounted in the MTP Plug & Play cassettes or patchpanels. Fanouting is made directly in the MTP connector, therefore no additional furcation points are required.
Direct splits MTP fanouts are designed to fit in to any application with small space requirements.
MTP® PRO connector optional

1x12F MTP to 6xE2000 compact module

Standard size Plug & Play module for 12 connections. Used as splitting point from back-bone MTP cable to individual E2000 ports.

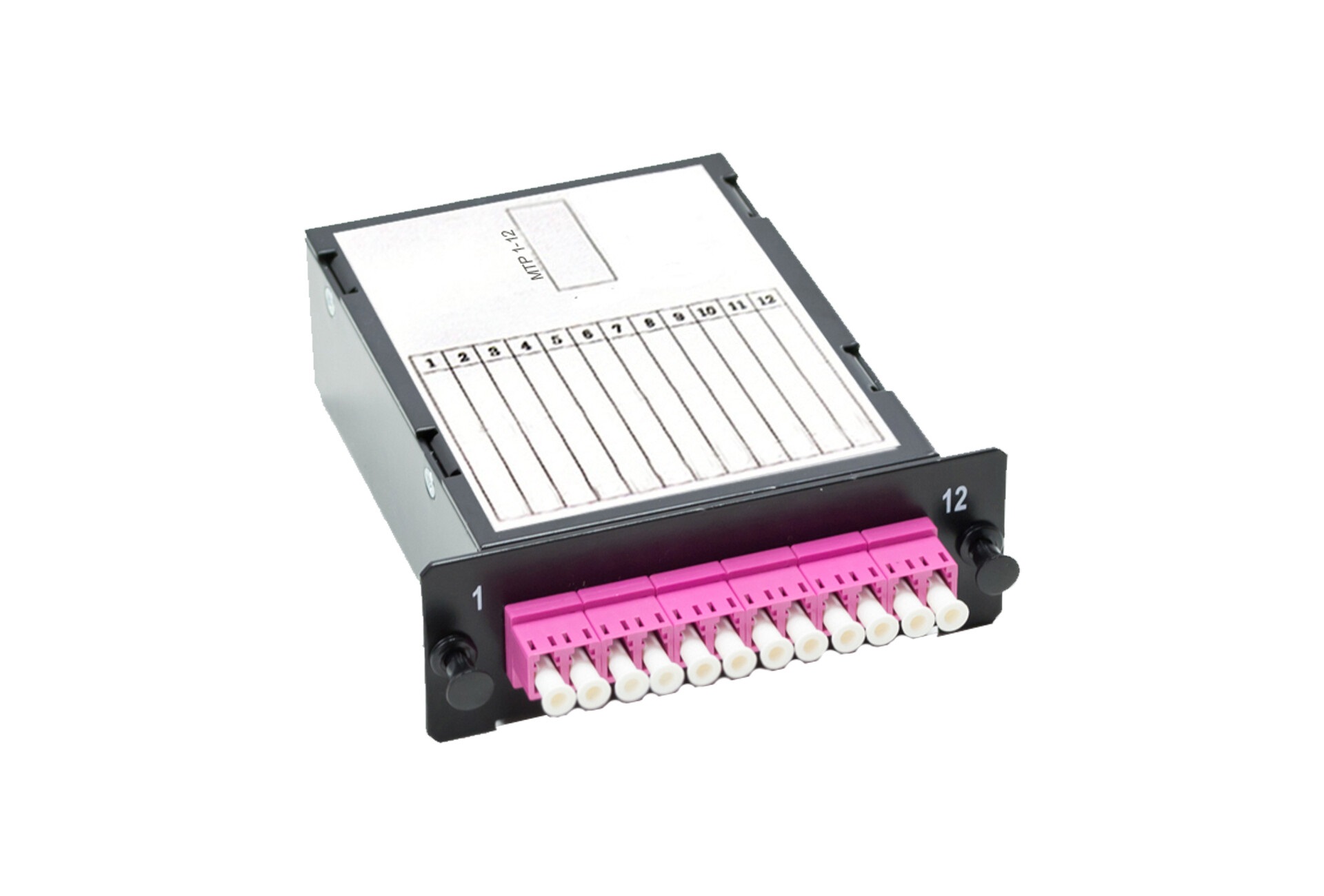

1x12f MTP to 6xLC duplex module

Standard size Plug & Play module for 12 connections. Used as splitting point from back-bone MTP cable to individual LC ports.

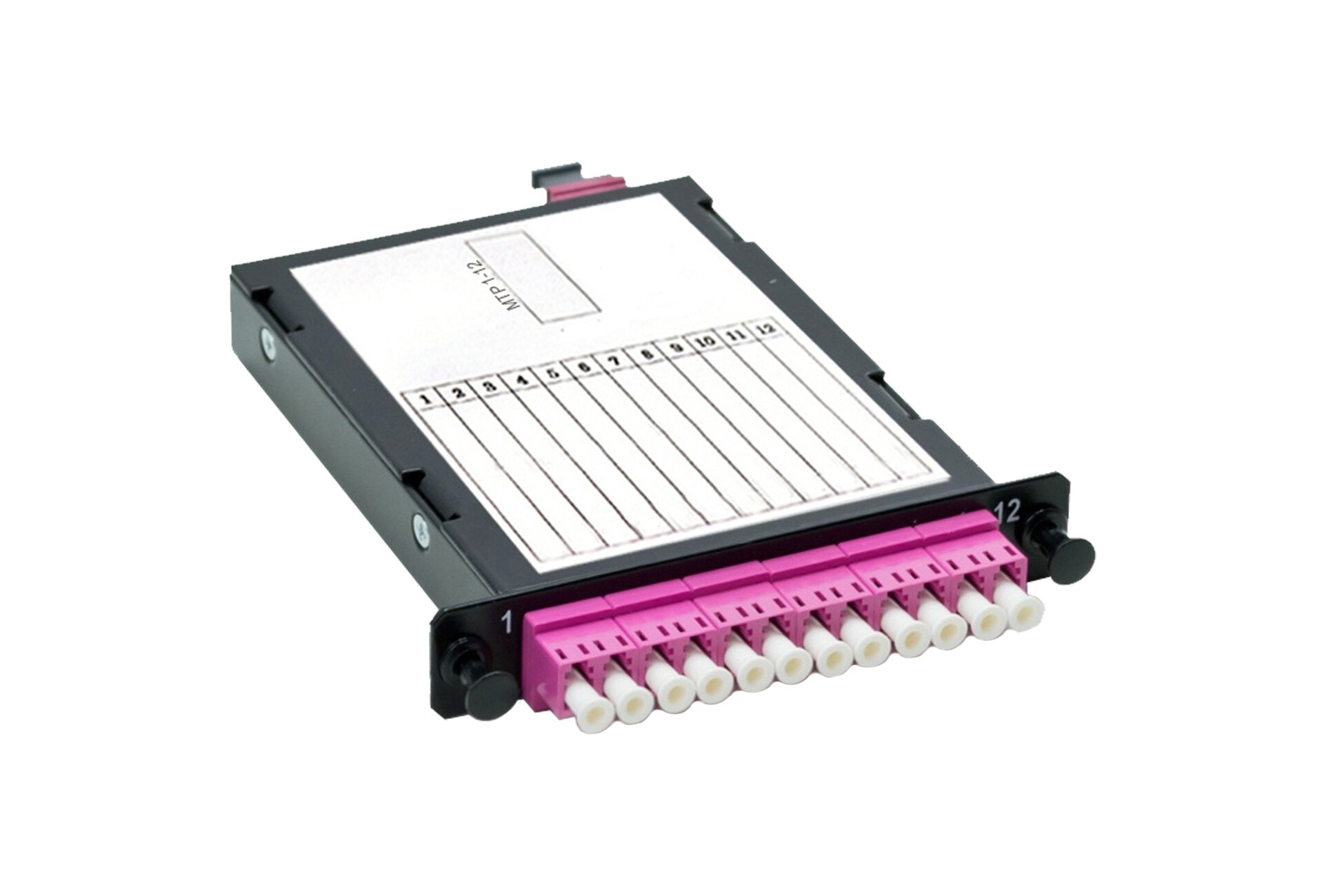

1x12f MTP to 6xLC duplex module half size

Half size Plug & Play module for 12 connections. Used as splitting point from back-bone MTP cable to individual LC ports, saving space and offering possibility to load up to 8 modules in standard 1U Plug & Play panel

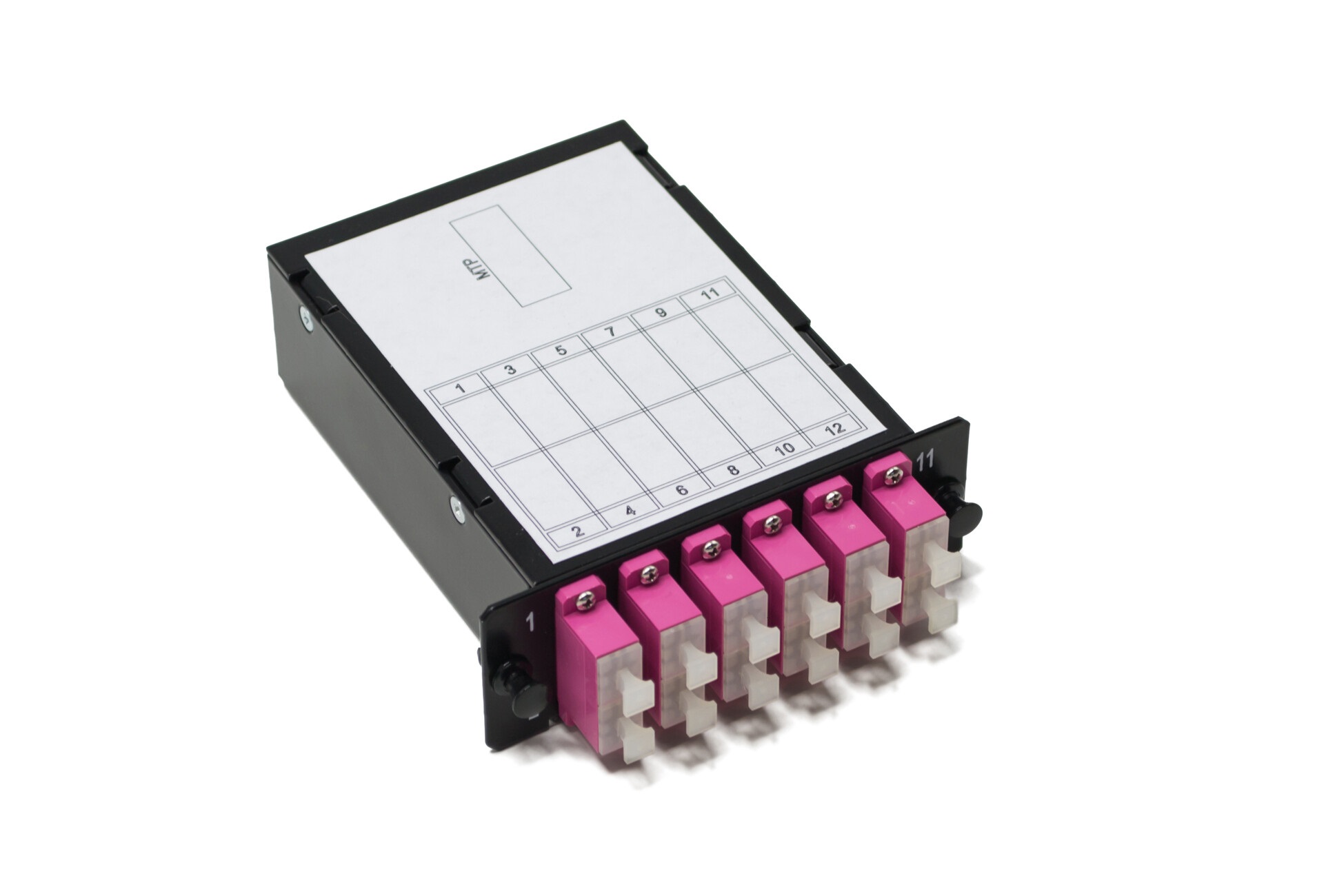

1x12F MTP to 6xSC duplex module

Standard size Plug & Play module for 12 connections. Used as splitting point from back-bone MTP cable to individual SC ports.

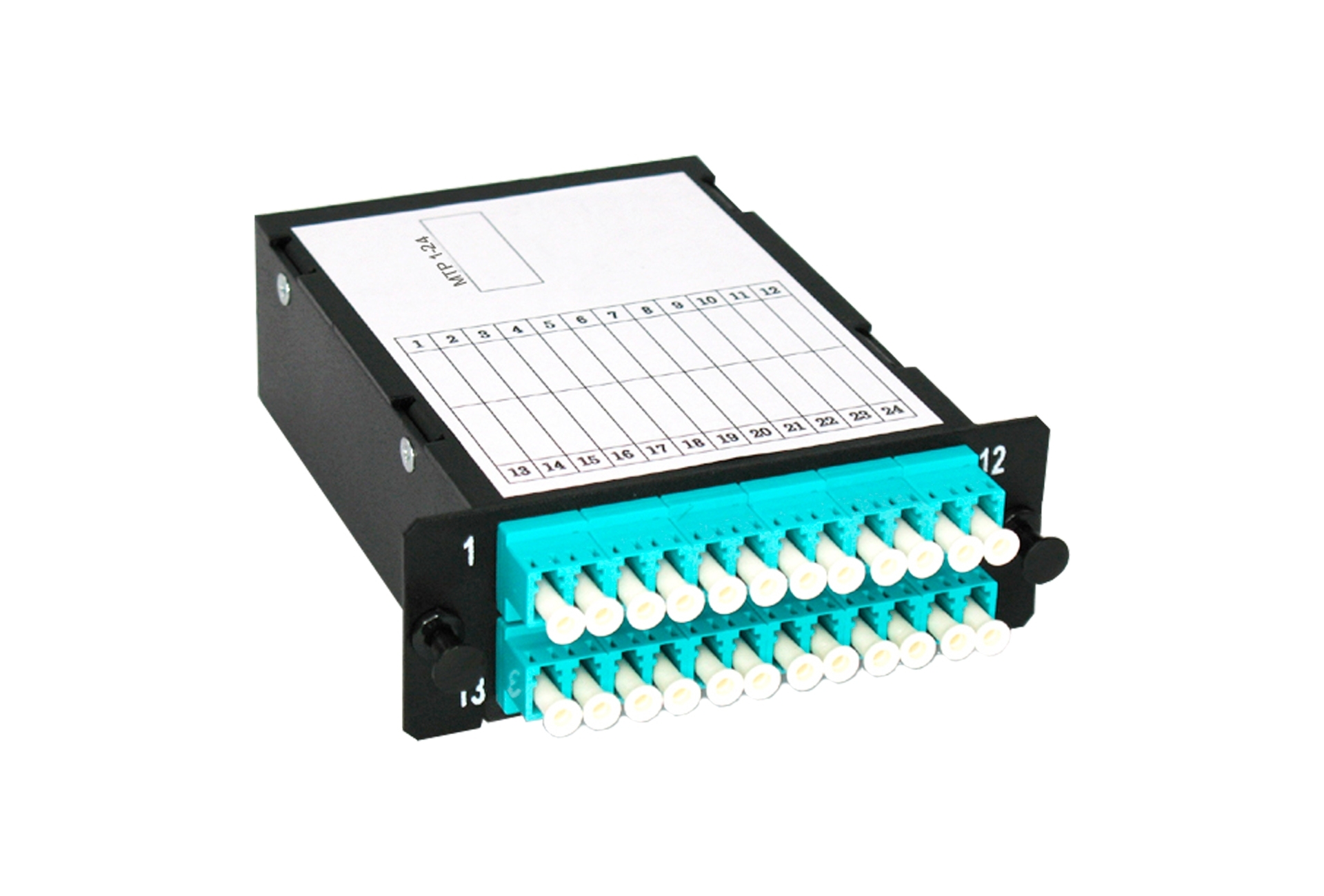

1x24f MTP to 12xLC duplex module

Standard size Plug & Play module for 24 connections. Used as splitting point from back-bone MTP 24-fiber cable to 24xLC port.

1x24f MTP to 24xLC 900um 24-fiber direct split

MTP-LC 24-fiber direct split (MTP to LC trunk) is suitable product for data-center applications. It is typically mounted in the MTP Plug & Play cassettes or patchpanels. Fanouting is made directly in the MTP connector, therefore no additional furcation points are required.
Direct splits MTP fanouts are designed to fit in to any application with small space requirements.
MTP® PRO connector optional.

2x12f MTP to 12xLC duplex module

Standard size Plug & Play module for 24 connections. Used as splitting point from 2 back-bone MTP cables to 24xLC port in high-density DataCenter.

2x16f MTP to 08x MDC module

Standard size Plug & Play module for 32 connections
Used as splitting point from back-bone MTP cable to individual MDC ports

2x16f MTP to 08x SN module

Standard size Plug & Play module for 32 connections
Used as splitting point from back-bone MTP cable to individual SN ports

6xLC duplex adapter plate

Adapter plate loaded with 6xLC duplex adapters for direct patching of LC preterm cables to additional extention LC cables.

6xMTP adapter plate

Adapter plate for direct patching of MTP back-bone cables to additional extention MTP cables.

MTP 16F loopback

MTP 16F Loopback is used for testing MTP 16F transceiver ports by creating a loop of signal from transceiver to receiver within one MPO/MTP plug. It forms an optical link, which allows testing of the optical network segment by segment. Utilizing MTP 16F loopback provides a cost-effective way to evaluate MTP 16F ports during R&D validation, product diagnostics and testing.
