    1x12f MTP – 04x SN 900um 08-fiber direct split

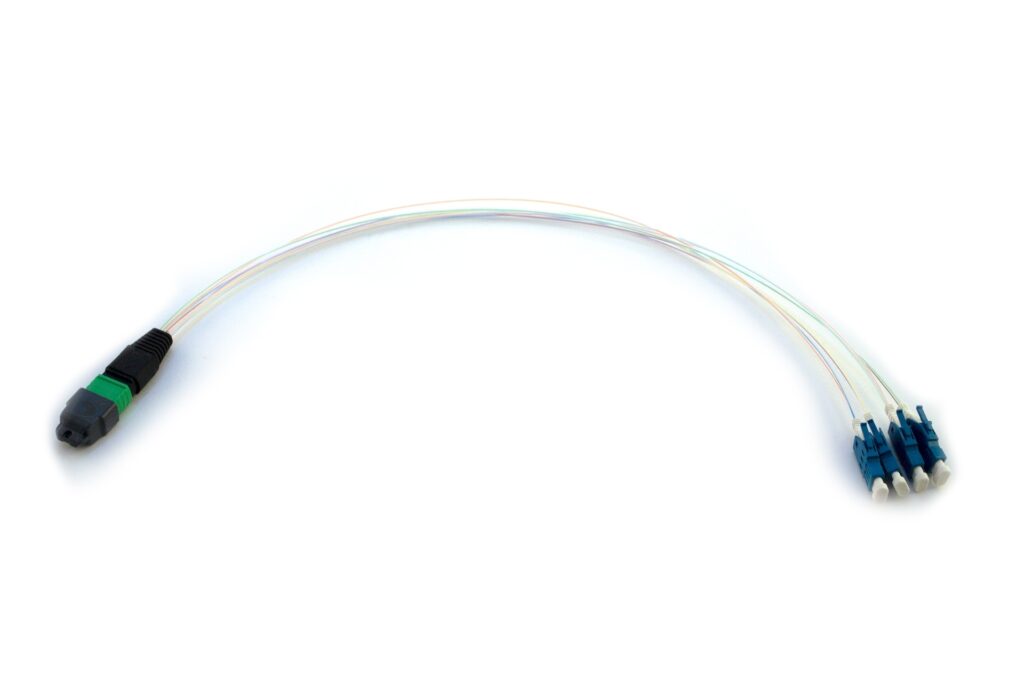

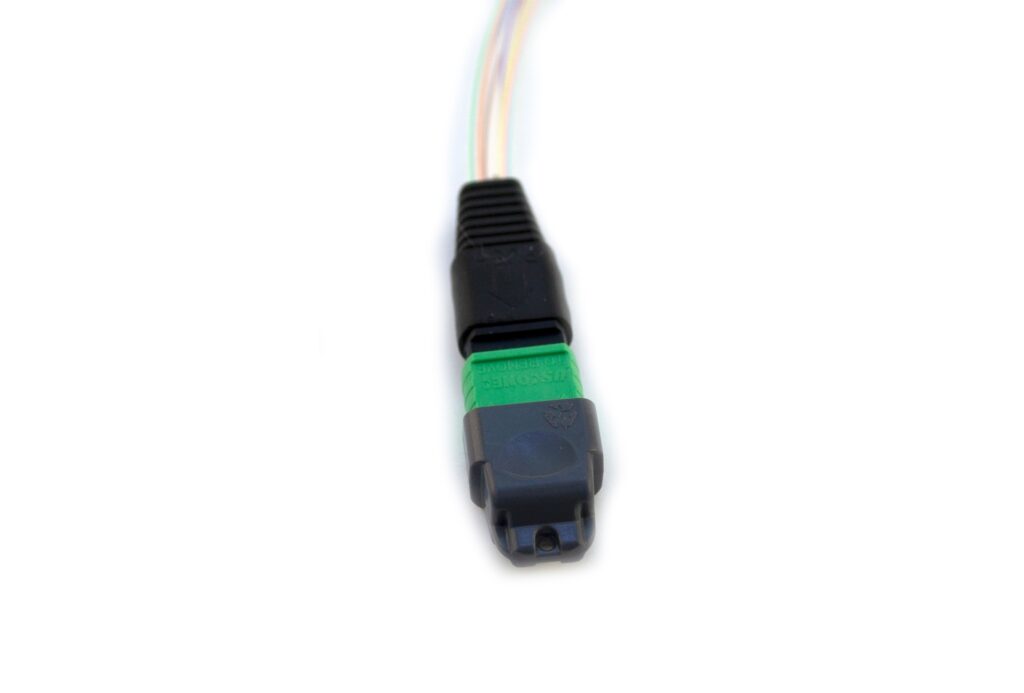

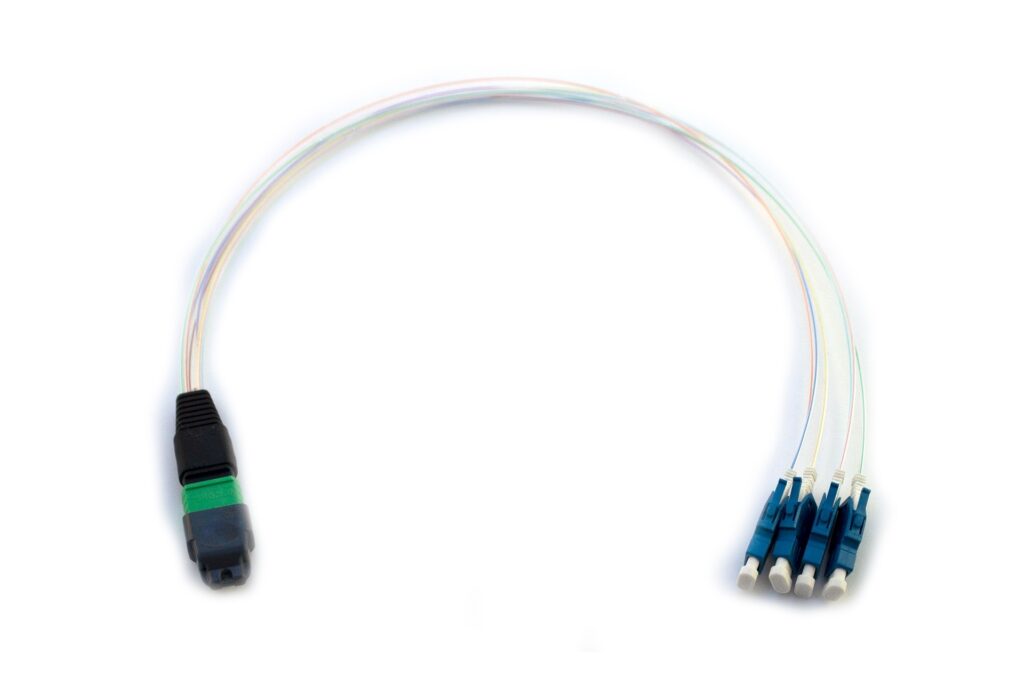

    • MTP-SN BTW1 8-fibre direct split is a product designed for data centre applications. It is normaly mounted in the new generation of MTP Plug & Play cassettes or patch panels for high-density applications. With the SN BTW1 connector, we can triple the number of connections in one 1U patch panel. The direct split product is produced with out any addotional furcation point, therefore we have a direct connection between MTP and SN BTW1 connector.

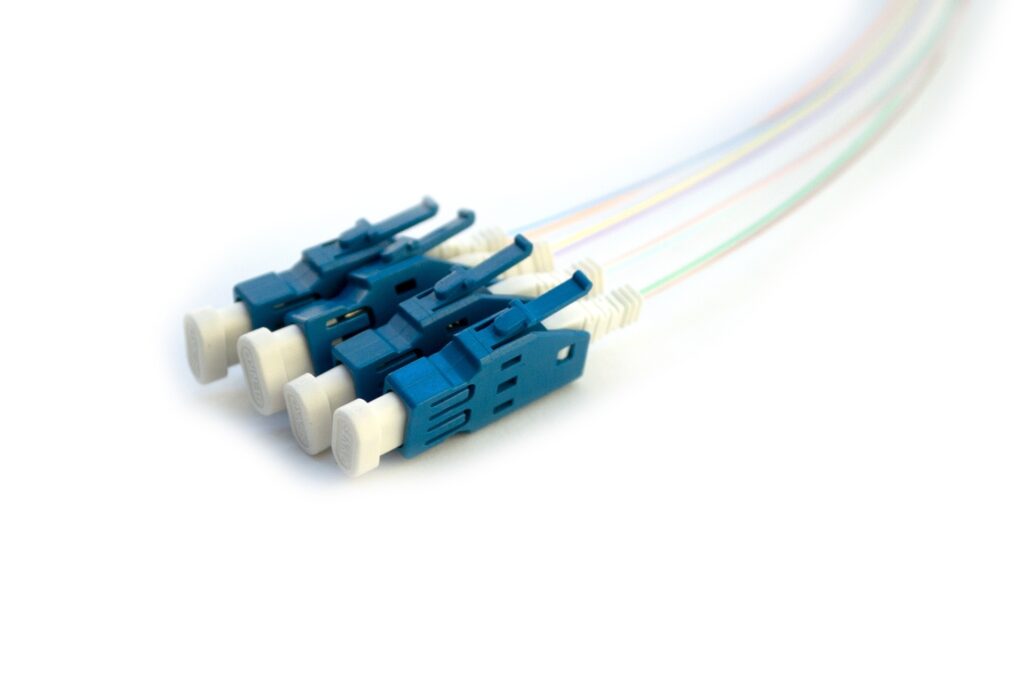

    • The SN BTW1 connector was designed mainly for “behind the wall” applications. In applications where space requirements are critical, the SN BTW1-based direct split fanouts are the right choice.
    • Products are also available with MTP® PRO connectors.
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    Nylon
    Cable construction
    		Bare fibers
    Outer diameter
    		0.9mm
    Fiber count
    		8
    Fiber type
    SM OS2 or MMF OM3/OM4/OM5
    Temperature rangeOperation: -25°C to +70°C
    Storage: -25°C to +85°C
    Installation: -25°C to +80°C
    Connector parameters
    		MTP/MTP PRO SM/MMSN BTW1 SM/MM
    Compliance
    US CONEC standard
    		Telcordia GR-326
    Colour of housing
    SM – Green (APC)
    MM – Aqua/Magenta/Lime Green
    		SM – Blue (UPC)
    MM – Aqua/Magenta/Lime Green
    Colour of boot
    		BlackWhite
    Polish
    		Angled (APC) / Flat MM (PC)Flat SM (UPC) / Flat MM (PC)
    Insertion Loss
    (acc. IEC 61300-3-4 method B)
    <0,35dB
    (@1310/1550nm & @850/1300nm)
    		<0,25dB (@1310/1550nm & @850/1300nm)
    Return Loss
    (acc. IEC 61300-3-6)
    >50dB (APC) (@1310/1550nm)
    >20dB (@850/1300nm)
    		>50dB (UPC) (@1310/1550nm)
    >20dB (@850/1300nm)
    IdentificationTraceability label with unique serial number.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box.
    Description
    Partnumber/Ordering code
    1x12f MTP(F) – 04x SN/UPC 900um 08-fiber OS2 direct splitF089-F99-xxx-D
    1x12f MTP(M) – 04x SN/UPC 900um 08-fiber OS2 direct splitF089-M99-xxx-D
    1x12f MTP(F) – 04x SN/PC 900um 08-fiber OM3 direct splitF083-F99-xxx-D
    1x12f MTP(M) – 04x SN/PC 900um 08-fiber OM3 direct splitF083-M99-xxx-D
    1x12f MTP(F) – 04x SN/PC 900um 08-fiber OM4 direct splitF084-F99-xxx-D
    1x12f MTP(M) – 04x SN/PC 900um 08-fiber OM4 direct splitF084-M99-xxx-D
    1x12f MTP(F) – 04x SN/PC 900um 08-fiber OM5 direct splitF085-F99-xxx-D
    1x12f MTP(M) – 04x SN/PC 900um 08-fiber OM5 direct splitF085-M99-xxx-D
    * also available with MTP PRO connector. For more information see the drawing.
