Interconnections

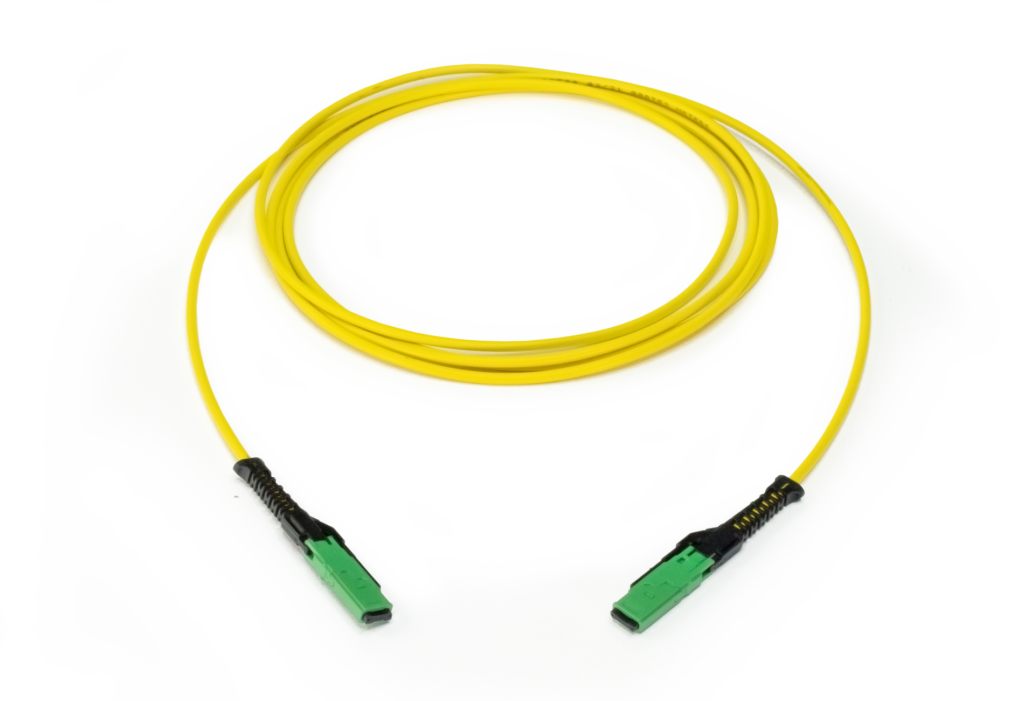

1x16f MMC to 1x16f MMC 16-fiber cable

  • The MMC jumper serves as a fundamental component for advanced hyperscale and AI systems, specifically those utilizing datacenter clusters exceeding 800G. Notable features of the MMC connector include the DirectConec™ push-pull boot advantage and its compact form factor design. Available in 1×16 and 2×12 fiber count configurations, supporting both single-mode (OS2) and multimode (OM3, OM4) options, this jumper satisfies requirements for high fiber count in very small form factors (VSFF).





Share this entry
Temperature range
Indoor controlled environment (-10°C/+60°C)
Cable parameters
Jacket material
OFNP
Cable construction
Round single jacket cable
Outer diameter
2.3mm
Fiber count
16
Fiber type
SM OS2 or MMF OM3/OM4
Temperature range Operation: -10°C to +70°C
Storage: -25°C to +70°C
Installation: -5°C to +50°C
CPR
N/A
Connector parameters
MMC SM MMC MM
Compliance
Telcordia GR-1435 Telcordia GR-1435
Colour of housing
Green (APC) Green (APC)
Colour of boot
Black Black
Polish
Angled (APC) Angled (APC)
Insertion Loss
(acc. IEC 61300-3-4 method B)
<0,35dB
(@1310/1550nm)
<0,35dB (@850/1300nm)
Return Loss
(acc. IEC 61300-3-6)
>60dB
(@1310/1550nm)
>20dB (@850/1300nm)
Identification Traceability label with unique serial number on both ends of cable assembly.
Packaging
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
Description
Partnumber/Ordering code
1x16f MMC/APC(F) to 1x16f MMC/APC(F) 16-fiber OS2 cable, Polarity A V169-AAA-XXX
1x16f MMC/APC(M) to 1x16f MMC/APC(M) 16-fiber OS2 cable, Polarity A V169-BBA-XXX
1x16f MMC/APC(F) to 1x16f MMC/APC(M) 16-fiber OS2  cable, Polarity A V169-ABA-XXX
*For more combination pleasw see the drawing.
