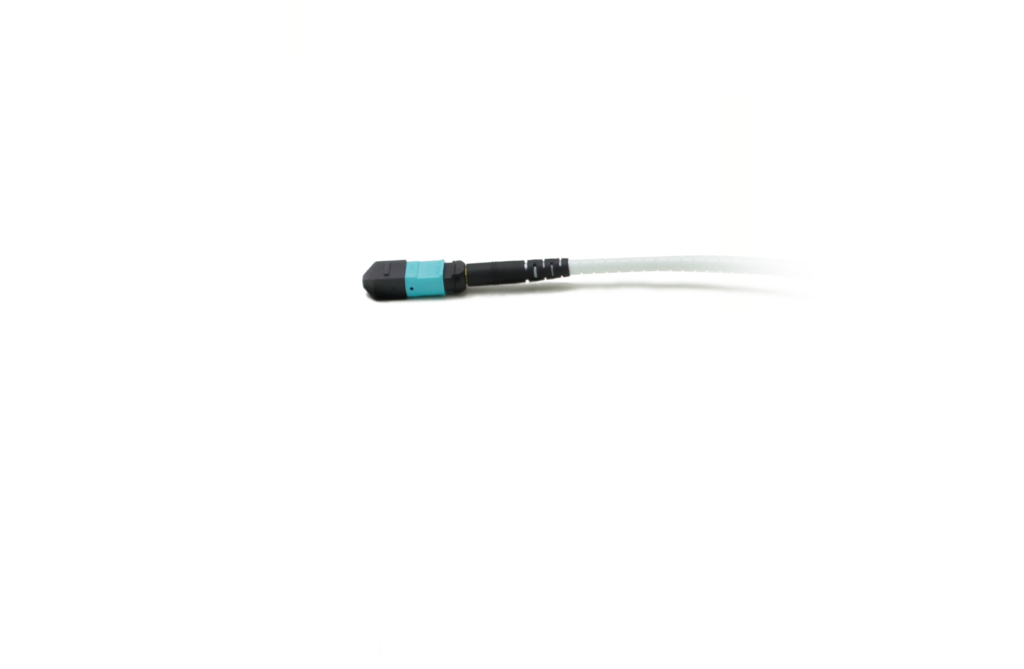

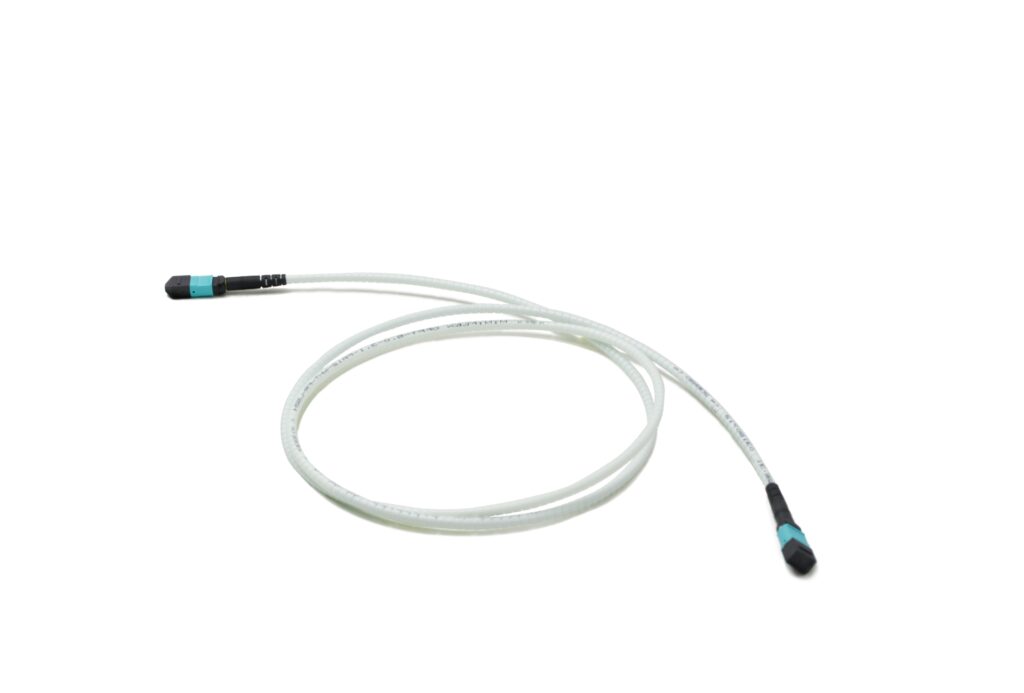

    1x24f MTP to 1x24f MTP 24-fiber Miniflex trunk cable

    • Protecting the fiber on it’s route from one active device to another – Miniflex trunk cable ensures that even a non-professional treatment of the trunk cable will not jeopardize the interconnection.
    • MTP® PRO connector optional.
    Ask a question
    DATASHEET
    DRAWING
    Share this entry
    Temperature range
    		 Indoor controlled environment (-10°C/+60°C)
    Cable parameters
    Jacket material
    LSZH
    Cable construction
    		 Miniflex cable
    Outer diameter
    		 4.0mm
    Fiber count
    		 24
    Fiber type
    SM OS2 or MMF OM3/OM4/OM5
    Temperature range Operation: -20°C to +85°C
    Installation: -20°C to +60°C
    Connector parameters
    		MTP/MTP PRO SM MTP/MTP PRO MM
    Compliance
    US CONEC standard
    		 US CONEC standard
    Colour of housing
    Green
    		 Aqua/Magenta/Lime Green
    Colour of boot
    		 Black Black
    Polish
    		 Angled (APC) Flat (PC)
    Insertion Loss
    (acc. IEC 61300-3-4 method B)
    <0,35dB
    (@1310/1550nm)
    		 <0,35dB (@850/1300nm)
    Return Loss
    (acc. IEC 61300-3-6)
    >50dB
    (@1310/1550nm)
    		 >20dB (@850/1300nm)
    Identification Traceability label with unique serial number on both ends of cable assembly.
    Packaging
    Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
    Description
    Partnumber/Ordering code
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OS2 Miniflex trunk cable, Polarity A
    T249-GGA-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OS2 Miniflex trunk cable, Polarity C
    T249-GGC-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OS2 Miniflex trunk cable, Polarity X
    T249-GGX-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 Miniflex trunk cable, Polarity A
    T243-GGA-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 Miniflex trunk cable, Polarity B
    T243-GGB-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 Miniflex trunk cable, Polarity C
    T243-GGC-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM3 Miniflex trunk cable, Polarity X
    T243-GGX-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 Miniflex trunk cable, Polarity A
    T244-GGA-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 Miniflex trunk cable, Polarity B
    T244-GGB-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 Miniflex trunk cable, Polarity C
    T244-GGC-XXX-M
    1x24f MTP(F) to 1x24f MTP(F) 24-fiber OM4 Miniflex trunk cable, Polarity X
    T244-GGX-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OS2 Miniflex trunk cable, Polarity A
    T249-GNA-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OS2 Miniflex trunk cable, Polarity C
    T249-GNC-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OS2 Miniflex trunk cable, Polarity X
    T249-GNX-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity A
    T243-GNA-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity B
    T243-GNB-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity C
    T243-GNC-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity X
    T243-GNX-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity A
    T244-GNA-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity B
    T244-GNB-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity C
    T244-GNC-XXX-M
    1x24f MTP(F) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity X
    T244-GNX-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OS2 Miniflex trunk cable, Polarity A
    T249-NNA-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OS2 Miniflex trunk cable, Polarity C
    T249-NNC-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OS2 Miniflex trunk cable, Polarity X
    T249-NNX-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity A
    T243-NNA-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity B
    T243-NNB-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity C
    T243-NNC-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM3 Miniflex trunk cable, Polarity X
    T243-NNX-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity A
    T244-NNA-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity B
    T244-NNB-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity C
    T244-NNC-XXX-M
    1x24f MTP(M) to 1x24f MTP(M) 24-fiber OM4 Miniflex trunk cable, Polarity X
    T244-NNX-XXX-M
    *also available with MTP PRO connector. For more information see the drawing.
