Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round cable | ||
|
Outer diameter |
5.5mm | ||
|
Fiber count |
72 | ||
|
Fiber type |
MMF OM3/OM4
|
||
| Temperature range | Operation: -20°C to +70°C | ||
| Storage: -40°C to +70°C | |||
|
Installation: -20°C to +60°C
|
|||

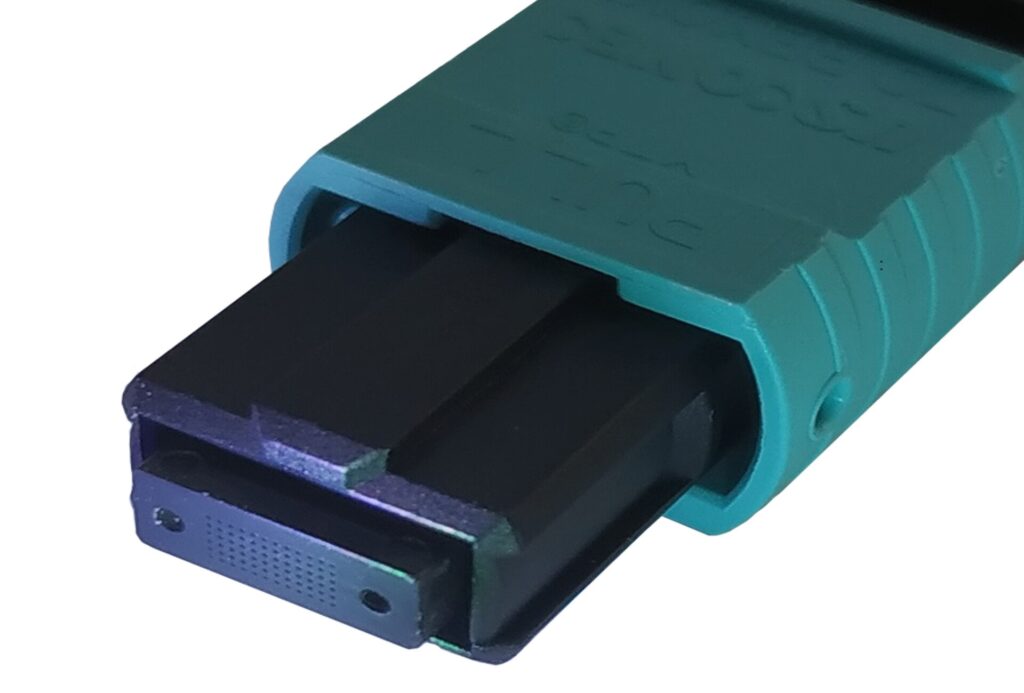

| Connector parameters | MTP MM | ||
|
Compliance |
US CONEC standard |
||
|
Colour of housing
|
Aqua/Magenta |
||
|
Colour of boot
|
Black | ||
|
Polish
|
Flat (PC) | ||
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<1,5dB
(@850nm)
|
||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

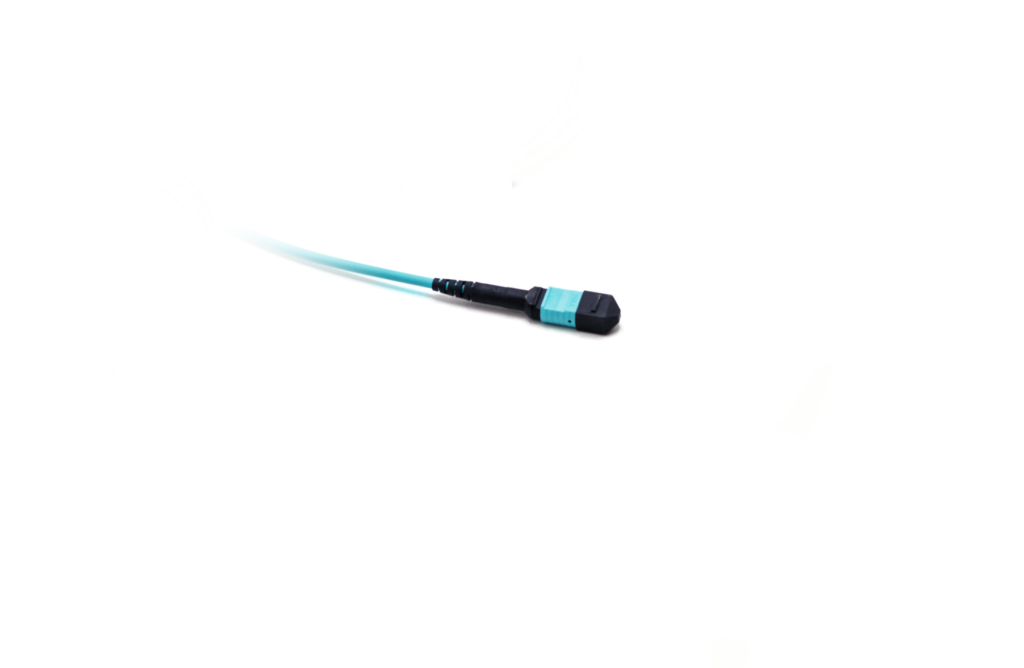

| 1x72f MTP(F) to 1x72f MTP(F) 72-fiber OM3 patch cable |
P723-44X-XXX |
| 1x72f MTP(F) to 1x72f MTP(M) 72-fiber OM3 patch cable |
P723-45X-XXX |
| 1x72f MTP(M) to 1x72f MTP(M) 72-fiber OM3 patch cable | P723-55X-XXX |
| 1x72f MTP(F) to 1x72f MTP(F) 72-fiber OM4 patch cable | P724-44X-XXX |
| 1x72f MTP(F) to 1x72f MTP(M) 72-fiber OM4 patch cable |
P724-45X-XXX |
| 1x72f MTP(M) to 1x72f MTP(M) 72-fiber OM4 patch cable | P724-55X-XXX |
