Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Round cable | ||
|
Outer diameter |
2x 1,2mm | ||
|
Fiber count |
24 | ||
|
Fiber type |
MMF OM3 / OM4
|
||
|
Temperature range |
Operation: -10°C to +60°C
|
||
|
Storage: -10°C to +60°C
|
|||
|
Installion: N/A
|
|||
| Connector parameters | PRIZM LT | MTP | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
N/A |
Aqua / Magenta | |
|
Colour of boot
|
N/A | Black | |
|
Polish
|
N/A | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<2,0dB (@850nm)
|
<0,35dB (@850nm) | |
|
Return Loss
(GUARANTEED VALUE |
N/A
|
>20dB (@850nm) | |
| Identification | Marking sleeve with unique serial number. | ||
| Packaging |
Each assembly in antistatic bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |

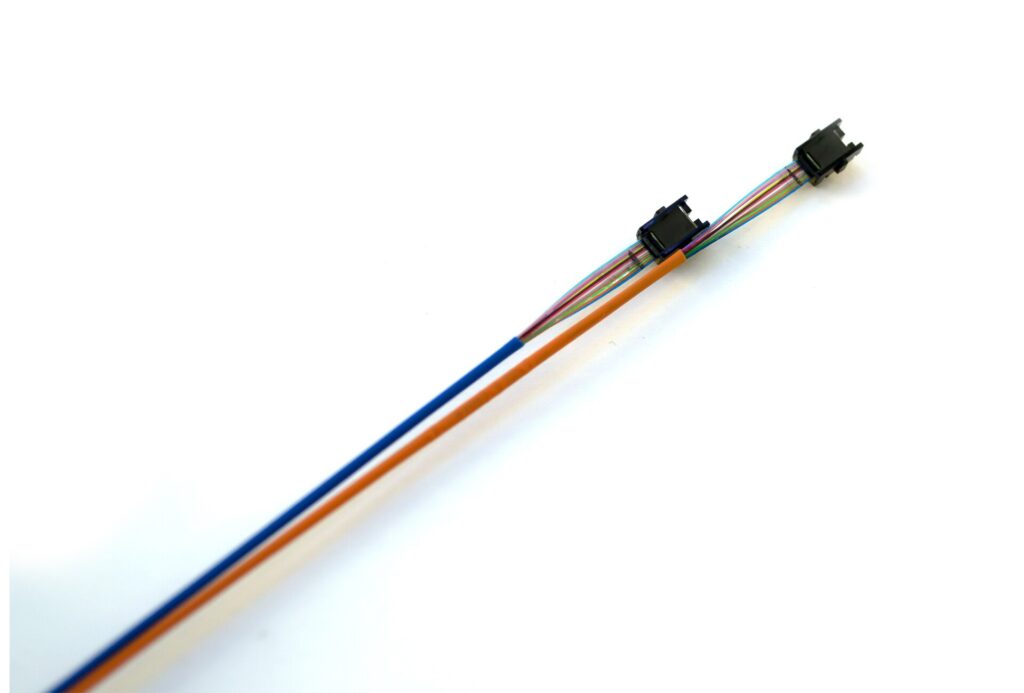

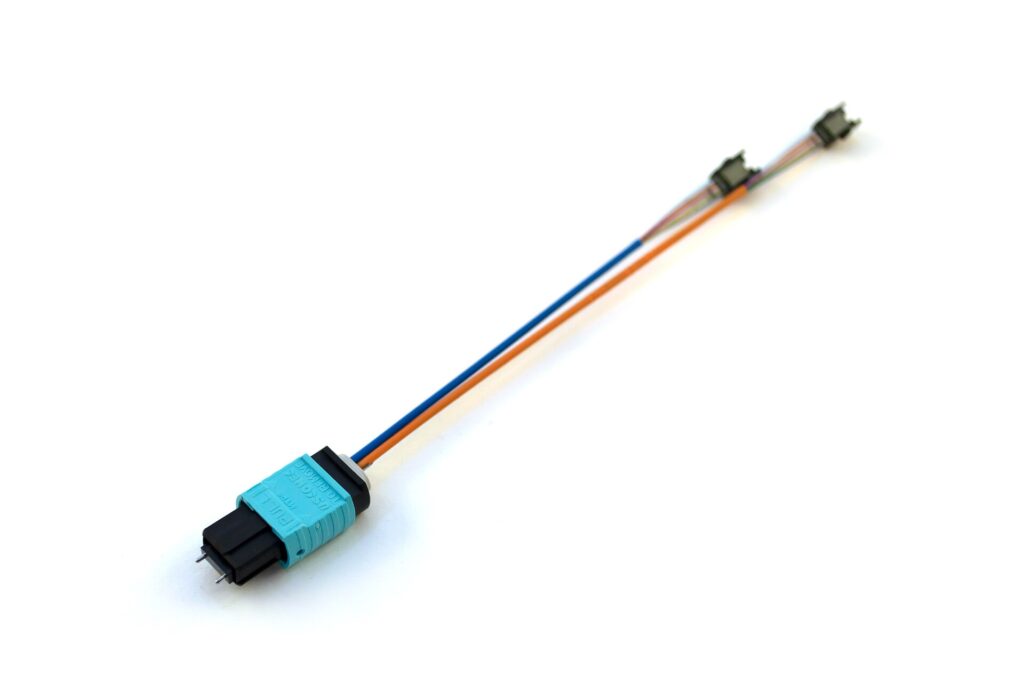

| 01x MTP(F) – 02x PRIZM LT 24F OM3 ROUND JUMPER TYPE A | B243-OG2-xxxx-3A |

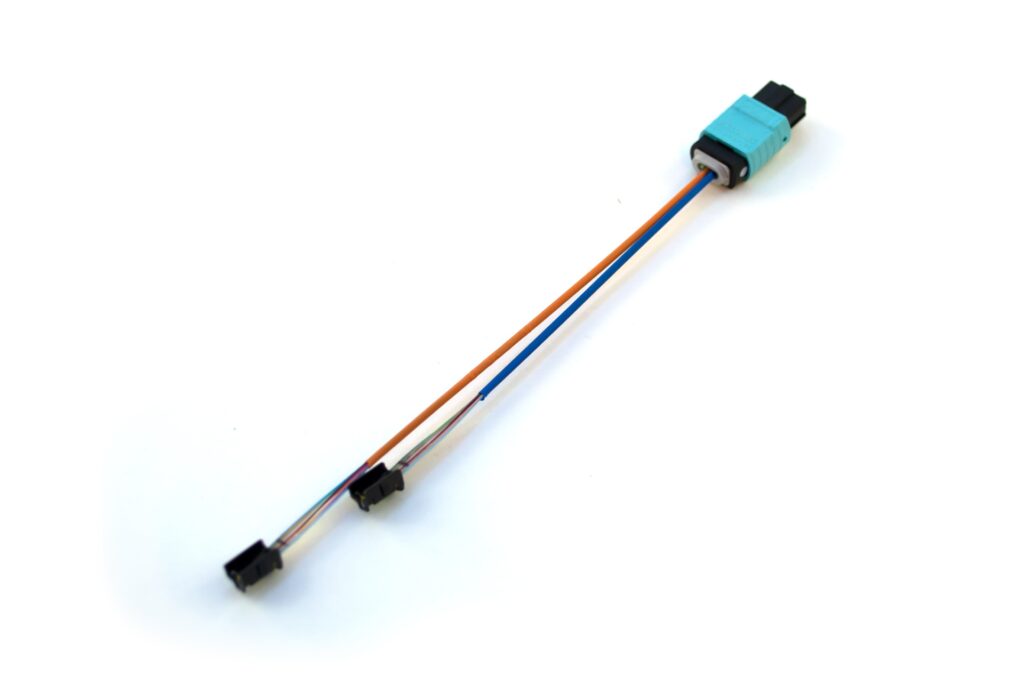

| 01x MTP(M) – 02x PRIZM LT 24F OM3 ROUND JUMPER TYPE A | B243-ON2-xxxx-3A |
| 01x MTP(F) – 02x PRIZM LT 24F OM4 ROUND JUMPER TYPE A | B244-OG2-xxxx-3A |
| 01x MTP(M) – 02x PRIZM LT 24F OM4 ROUND JUMPER TYPE A | B244-ON2-xxxx-3A |
* for more combination please see the drawing.
