Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
|
Cable construction |
Micro-Bundle | ||
|
Outer diameter |
5.7mm | ||
|
Fiber count |
48 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
|
CPR |
Cca-s1a, d1, a1
|
||

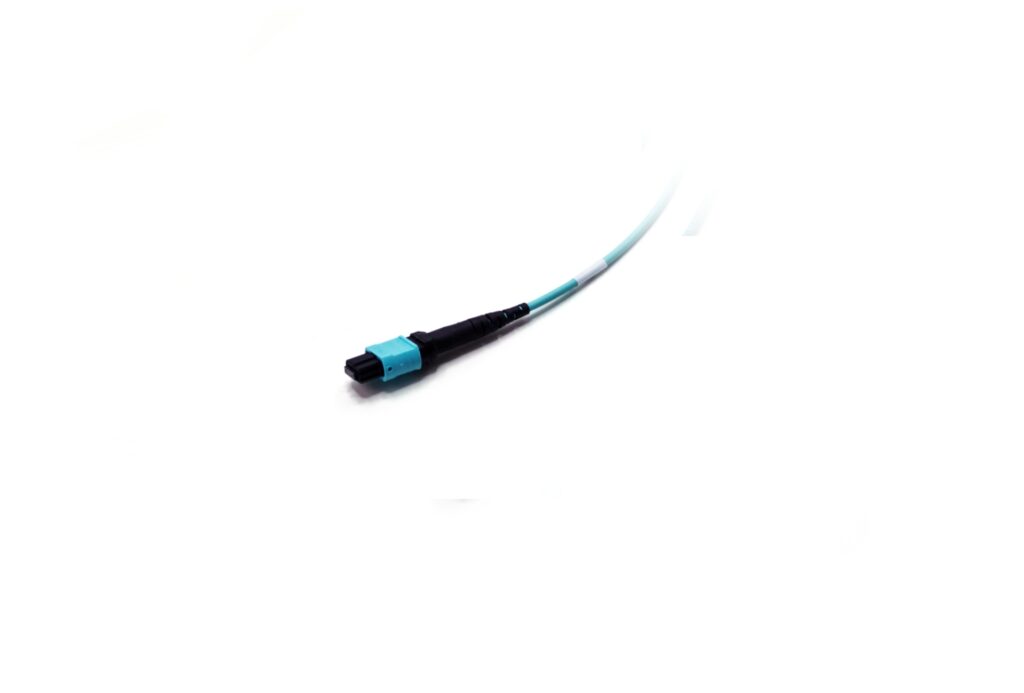

| Connector parameters | MTP/MTP PRO SM | MTP/MTP PRO MM | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
Green |
Aqua/Magenta/Lime Green | |
|
Colour of boot
|
Black | Black | |
|
Polish
|
Angled (APC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm)
|
<0,35dB (@850/1300nm) | |
|
Return Loss
(acc. IEC 61300-3-6)
|
>50dB
(@1310/1550nm)
|
>20dB (@850/1300nm) | |

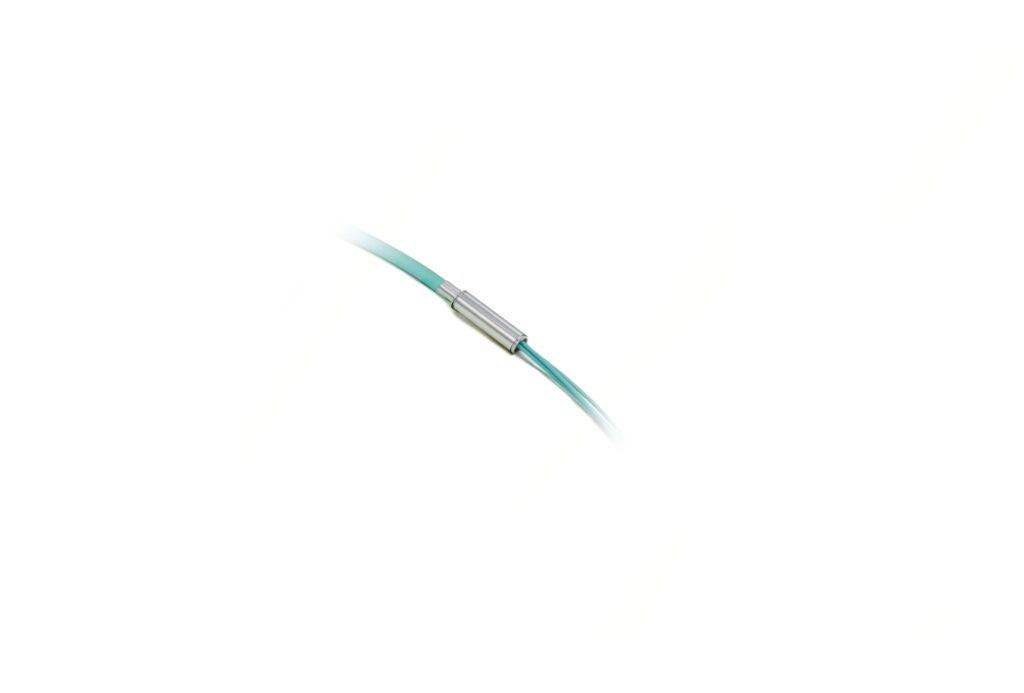

| Fanout |
Material (body / other parts) |
ABS* / metal
|
|
|
Duralino body diameter |
15.5mm | ||
|
IP Rating |
IP40 | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
|
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|

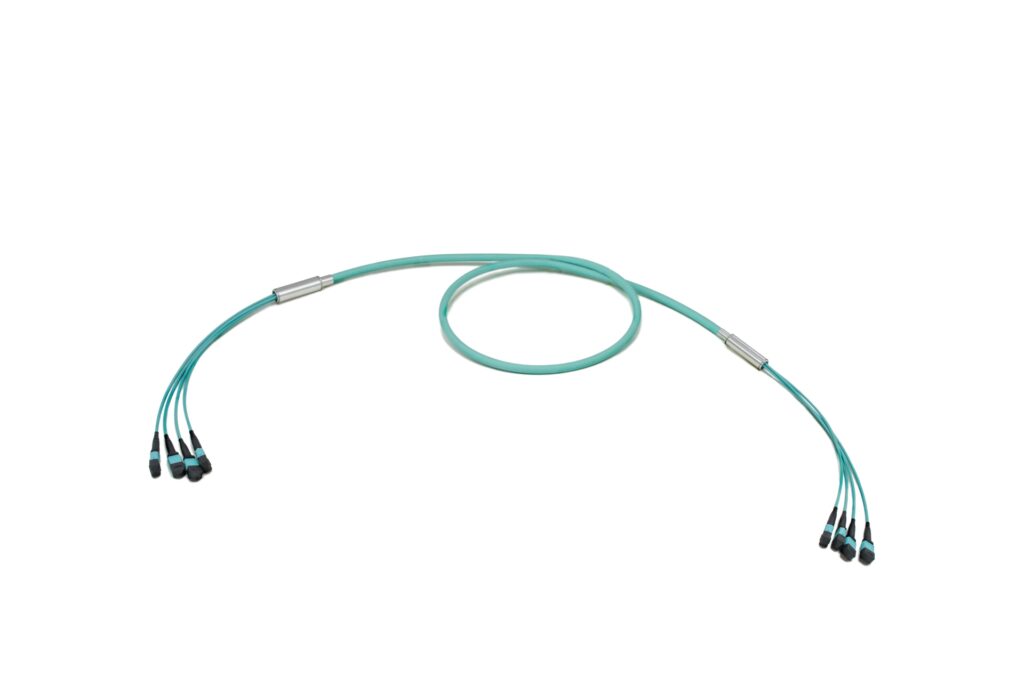

Description |
Partnumber/Ordering code |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OS2 trunk cable, Polarity A |
T489-FFA-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OS2 trunk cable, Polarity A |
T489-FMA-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OS2 trunk cable, Polarity A |
T489-MMA-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM3 trunk cable, Polarity A |
T483-FFA-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM3 trunk cable, Polarity A |
T483-FMA-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM3 trunk cable, Polarity A |
T483-MMA-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM4 trunk cable, Polarity A |
T484-FFA-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM4 trunk cable, Polarity A |
T484-FMA-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM4 trunk cable, Polarity A |
T484-MMA-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM5 trunk cable, Polarity A |
T485-FFA-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM5 trunk cable, Polarity A |
T485-FMA-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM5 trunk cable, Polarity A |
T485-MMA-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OS2 trunk cable, Polarity B |
T489-FFB-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OS2 trunk cable, Polarity B |
T489-FMB-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OS2 trunk cable, Polarity B |
T489-MMB-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM3 trunk cable, Polarity B |
T483-FFB-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM3 trunk cable, Polarity B |
T483-FMB-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM3 trunk cable, Polarity B |
T483-MMB-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM4 trunk cable, Polarity B |
T484-FFB-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM4 trunk cable, Polarity B |
T484-FMB-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM4 trunk cable, Polarity B |
T484-MMB-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM5 trunk cable, Polarity B |
T485-FFB-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM5 trunk cable, Polarity B |
T485-FMB-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM5 trunk cable, Polarity B |
T485-MMB-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OS2 trunk cable, Polarity C |
T489-FFC-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OS2 trunk cable, Polarity C |
T489-FMC-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OS2 trunk cable, Polarity C |
T489-MMC-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM3 trunk cable, Polarity C |
T483-FFC-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM3 trunk cable, Polarity C |
T483-FMC-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM3 trunk cable, Polarity C |
T483-MMC-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM4 trunk cable, Polarity C |
T484-FFC-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM4 trunk cable, Polarity C |
T484-FMC-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM4 trunk cable, Polarity C |
T484-MMC-XXX |
| 4x12f MTP(F) to 4x12f MTP(F) 48-fiber OM5 trunk cable, Polarity C |
T485-FFC-XXX |
| 4x12f MTP(F) to 4x12f MTP(M) 48-fiber OM5 trunk cable, Polarity C |
T485-FMC-XXX |
| 4x12f MTP(M) to 4x12f MTP(M) 48-fiber OM5 trunk cable, Polarity C |
T485-MMC-XXX |

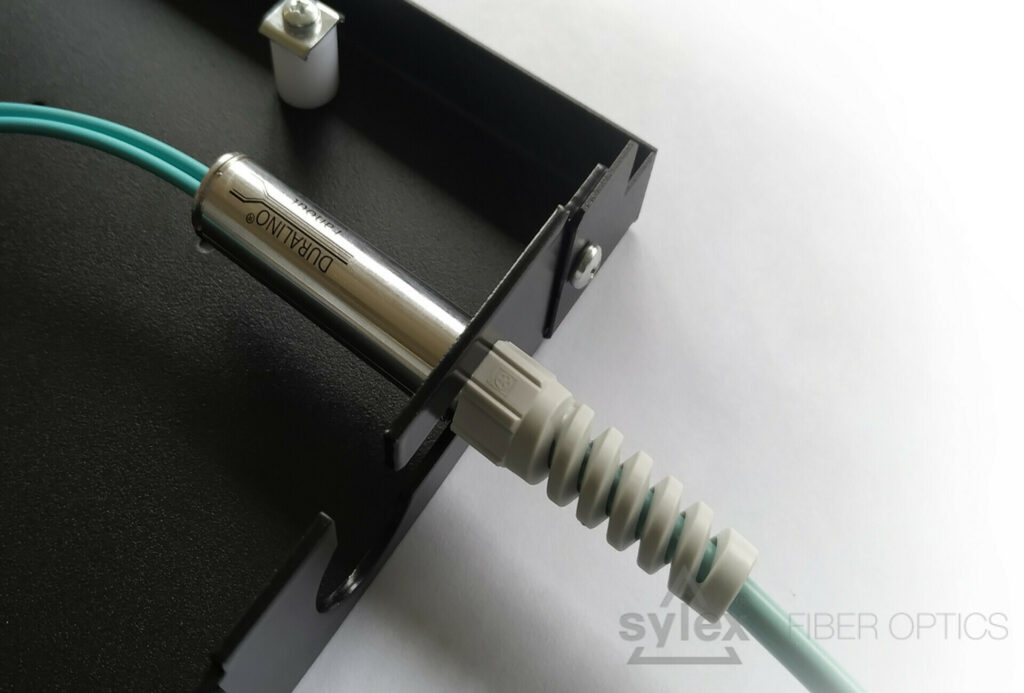

*also available with grommet and with MTP PRO connector. For more information see the drawing.
