Temperature range |
Indoor / Outdoor environment | ||
| Tube parameters |
Tube type |
Square locked type
|
|
|
Tube material |
Stainless steel | ||
|
Outer diameter |
2.9mm | ||
|
Fiber count |
1-12F | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4/OM5
|
||
| Temperature range | -40°C to +75°C | ||
|
Optional sheeting |
PVC / Olefin elastomer
|
||
| Connector parameters | MTP/MTP PRO SM / MM | LC SM Uniboot / LC MM Uniboot | |
|
Compliance |
US CONEC standard |
Telcordia GR-326 | |
|
Colour of housing
|
SM – Green (APC)
MM – Aqua/Magenta/Lime Green |
SM – Blue (PC)/Green (APC) MM – Aqua/Magenta/Lime Green | |
|
Polish
|
Angled (APC) / Flat (PC) | Angled (APC) / Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,35dB
(@1310/1550nm / @850/1300nm)
|
<0,25dB (@1310/1550nm / @850/1300nm) | |
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

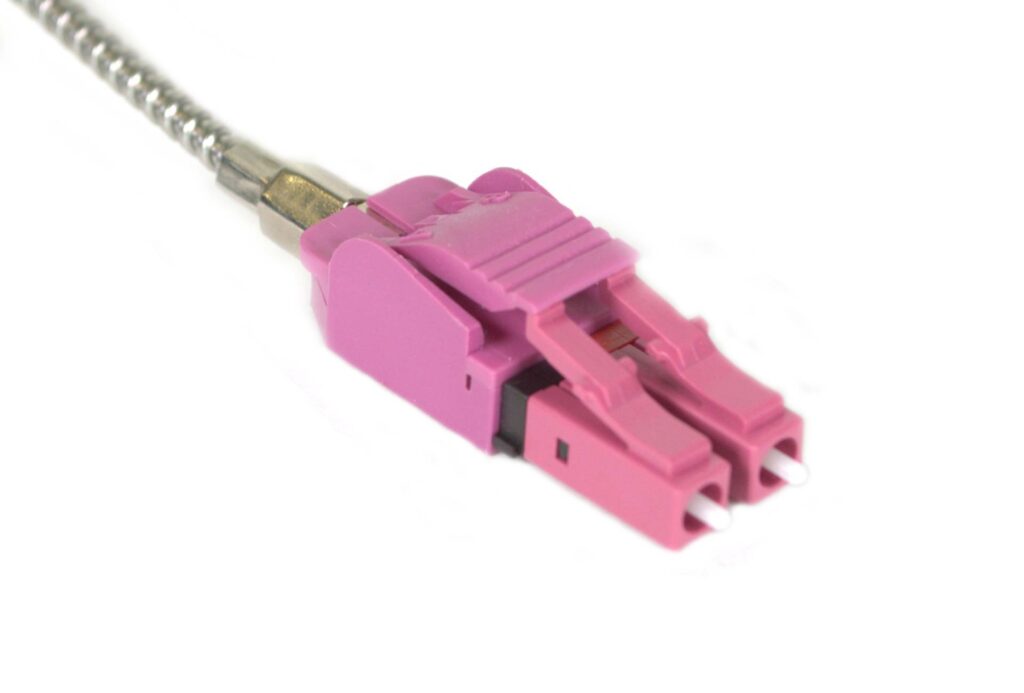

| LCD/UPC-LCD/UPC OS2 armored duplex patchcord | SSS9-LLU-XXX |
| LCD/APC-LCD/APC OS2 armored duplex patchcord | SSS9-AAU-XXX |
| LCD/PC-LCD/PC OM3 armored duplex patchcord | SSS3-LLU-XXX |
| LCD/PC-LCD/PC OM4 armored duplex patchcord | SSS4-LLU-XXX |
| LCD/PC-LCD/PC OM5 armored duplex patchcord | SSS5-LLU-XXX |

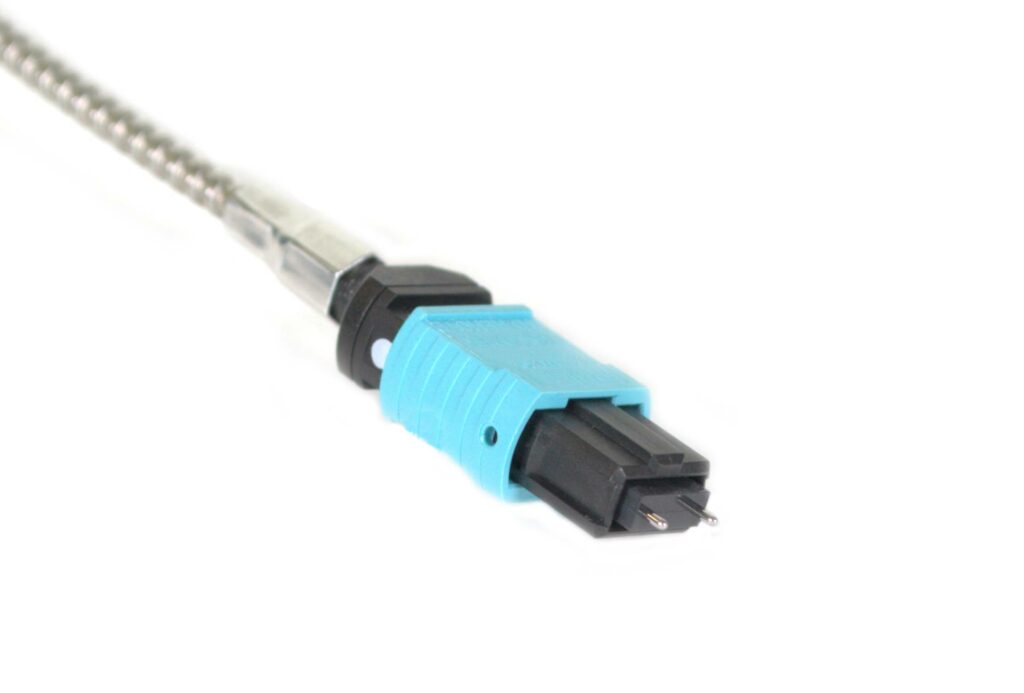

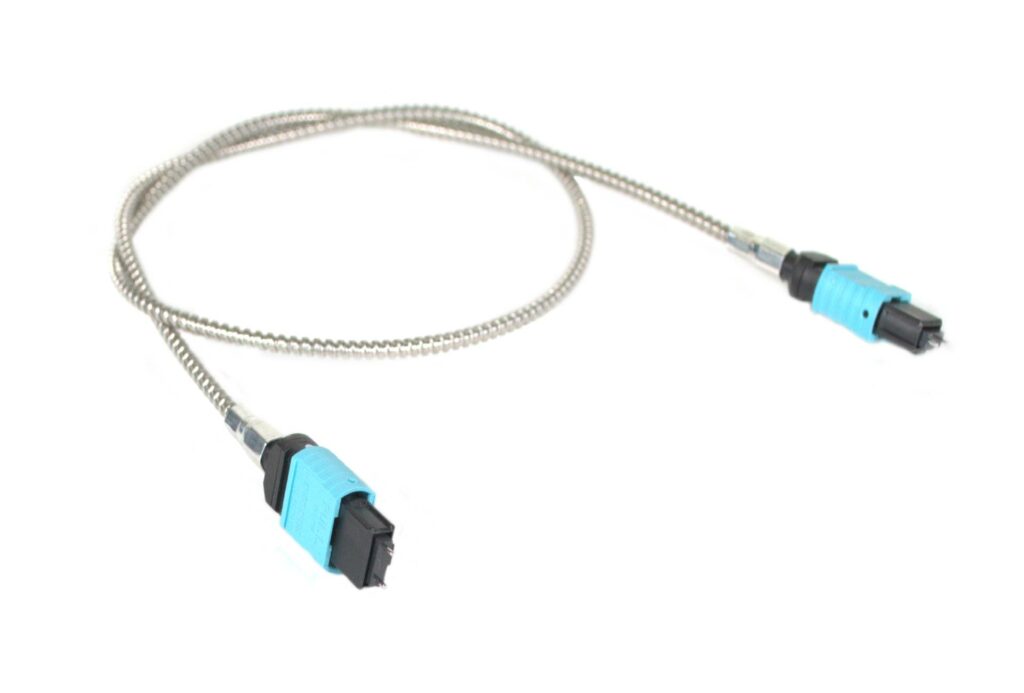

| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OS2 armored patch cable, Polarity A | SSS9-FFA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OS2 armored patch cable, Polarity A | SSS9-MMA-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM3 armored patch cable, Polarity A | SSS3-FFFA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM3 armored patch cable, Polarity A | SSS3-MMA-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM4 armored patch cable, Polarity A | SSS4-FFA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM4 armored patch cable, Polarity A | SSS4-MMA-XXX |
| 1x12f MTP(F) to 1x12f MTP(F) 12-fiber OM5 armored patch cable, Polarity A | SSS5-FFA-XXX |
| 1x12f MTP(M) to 1x12f MTP(M) 12-fiber OM5 armored patch cable, Polarity A | SSS5-MMA-XXX |
*also available with MTP PRO connector. For more information see the drawing.
