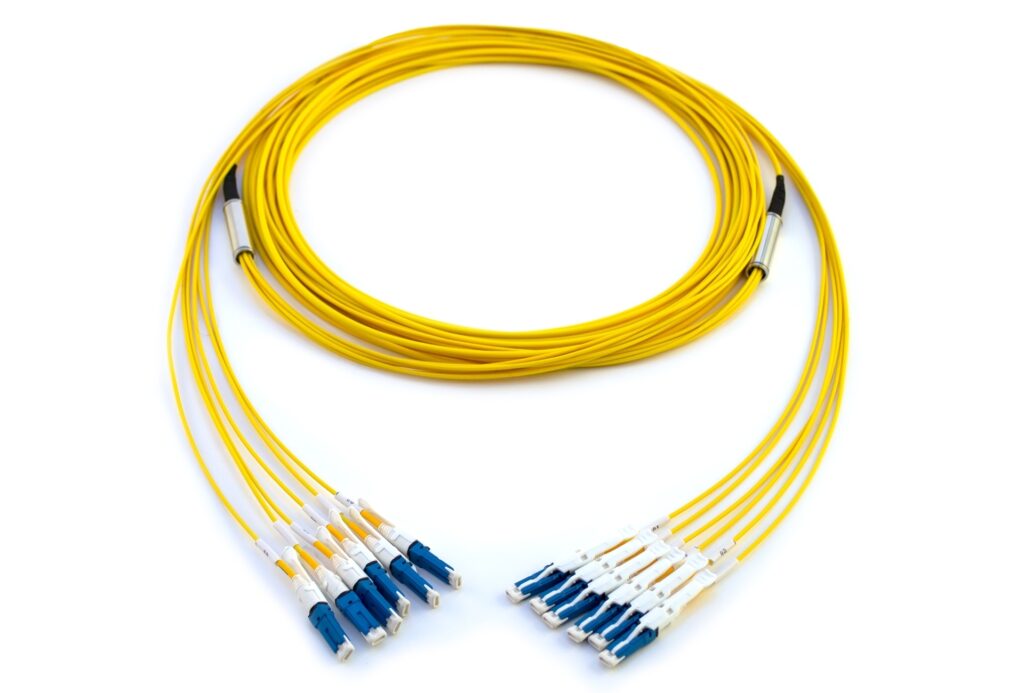

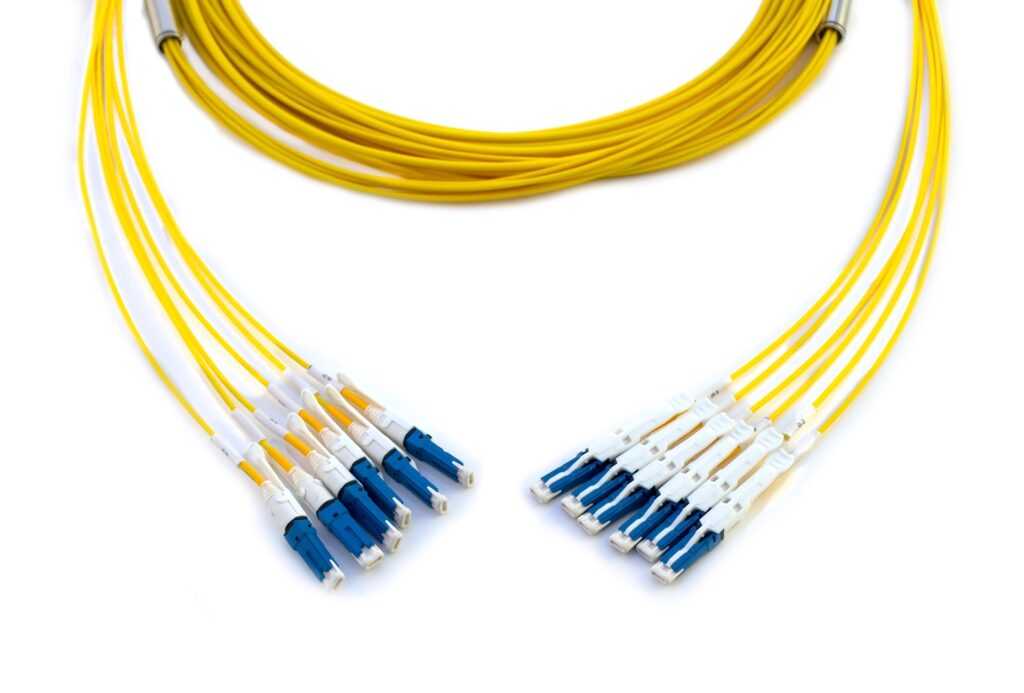

CS – CS 12F-fiber Duralino trunk

  • The CS duplex trunk is typically terminated with 4 connectors. This simple design can be directly used for cross-connection of the newly designed QSFP-DD (400 to 2x 200 Gbit/sec) or SFP-DD (100 to 4x 25 Gbit/sec) transceivers.

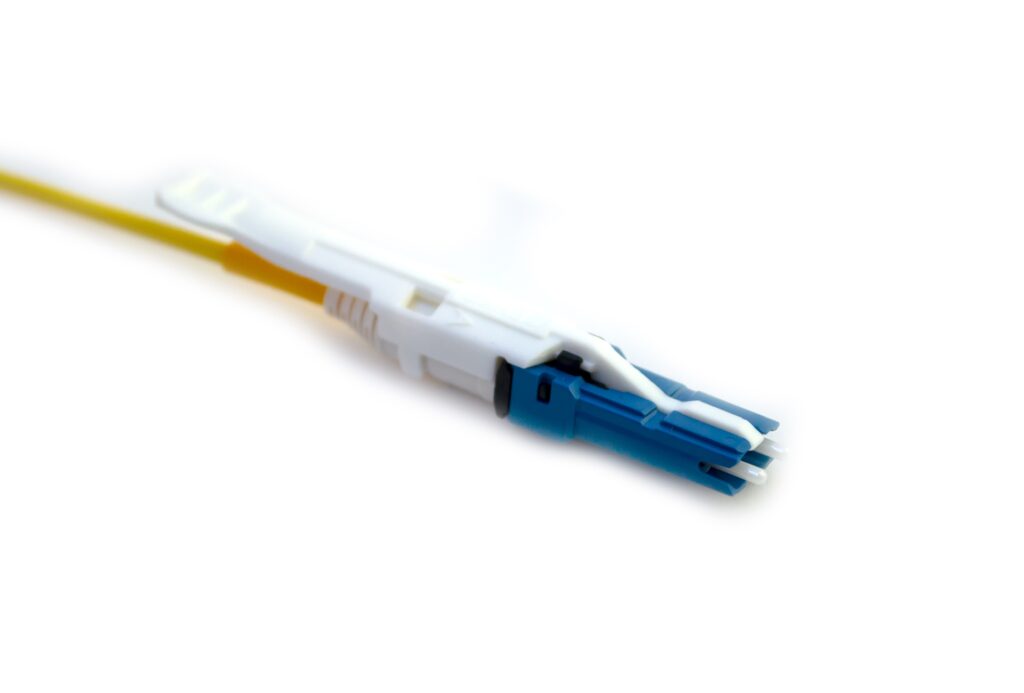

  • The CS connector is based on the same 125um ferrules as LC connectors, offering equal optical and transmission parameters. In an environment where migration from 10, 40 or 100 Gbit/sec to 400 Gbit/sec is a must, the CS connector benefits from its size, which allows more then double the density in one 1U patch panel as compared to the LC connector.
  • The CS connector is ideal designed for serial, paralel and WDM optical schemes.
  • We can offer you SM (OS2) and MM (OM3, OM4, OM5) versions of trunks up to 144 fibres. Aside from the pure CS connector-based products, the hybrid versions with various types of single-fibre connectors are available as well
  • OFNP cable option available
Share this entry
Temperature range
Indoor controlled environment (-10°C/+60°C)
Cable parameters
Jacket material
LSZH
Cable construction Round single jacket cable
Outer diameter 3,0mm
Fiber count 12
Fiber type SMF OS2, MMF OM3/OM4/OM5
Temperature range Operation: -10°C to +70°C
Storage: -25°C to +70°C
Installation: -5°C to +50°C
CPR
Cca-s1a, d1, a1 / B2ca-s1a, d1, a2
Connector parameters

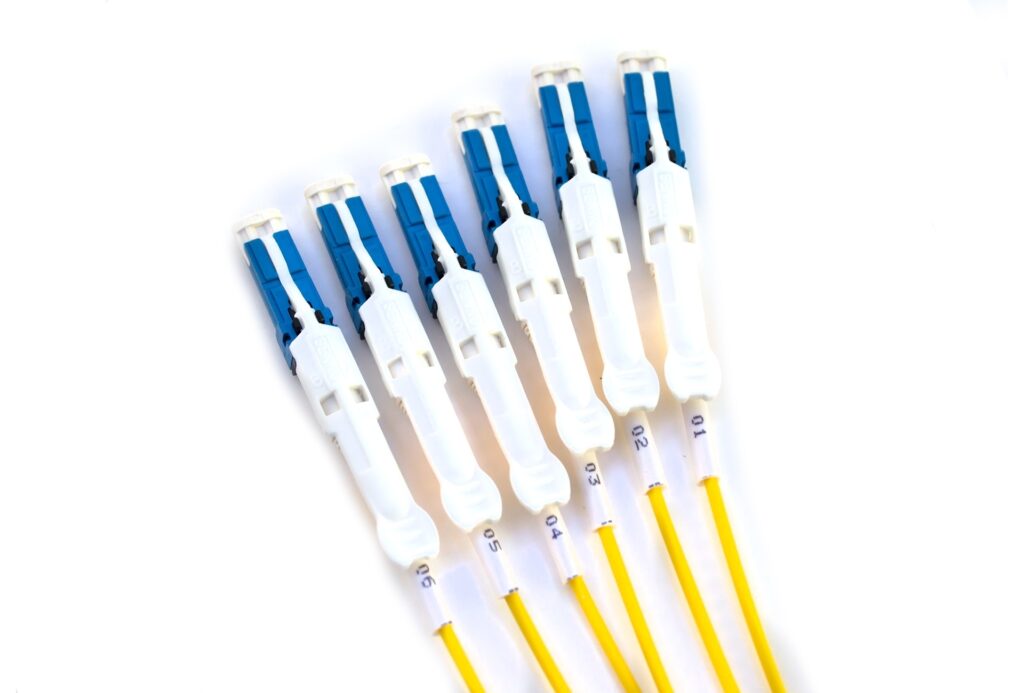

CS SM/MM
Compliance Telecordia GR-326
Colour of housing SM – Blue (UPC)
MM – Aqua/Magenta/Lime Green
Colour of boot White
Polish Flat SM (UPC) /  Flat MM (PC)
Insertion Loss (acc. IEC 61300-3-4 method B) <0,25dB (@850/1300nm & @1310/1550nm)
Return Loss (acc. IEC 61300-3-6) >50dB (UPC) (@1310/1550nm)
>20dB (@850/1300nm)
Fanout
Material (body / other parts)
ABS* / metal
Duralino body diameter
15.5mm
IP Rating
IP40
Identification Traceability label with unique serial number on both ends of cable assembly.
Packaging
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on reel
* Fanout metal body optional
Description
Partnumber/Ordering code
CS/UPC – CS/UPC 12F-fiber Duralino trunk OS2T129-002-xxx
CS/PC – CS/PC 12F-fiber Duralino trunk OM3T123-002-xxx
CS/PC – CS/PC 12F-fiber Duralino trunk OM4T124-002-xxx
CS/PC – CS/PC 12F-fiber Duralino trunk OM5T125-002-xxx

* For more information see the drawing.
