Temperature range |

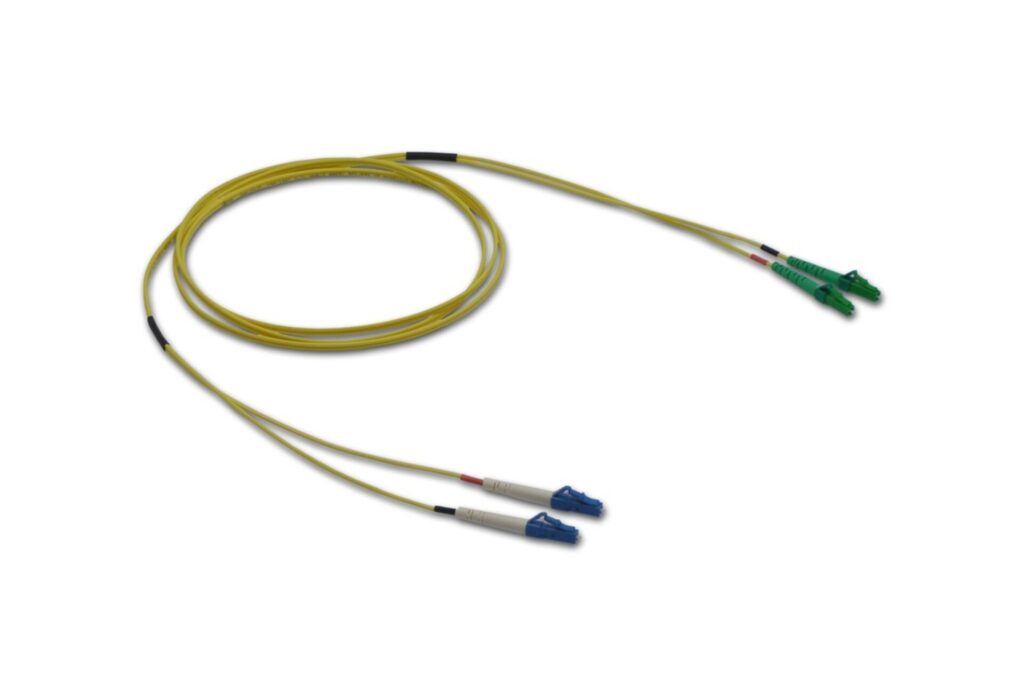

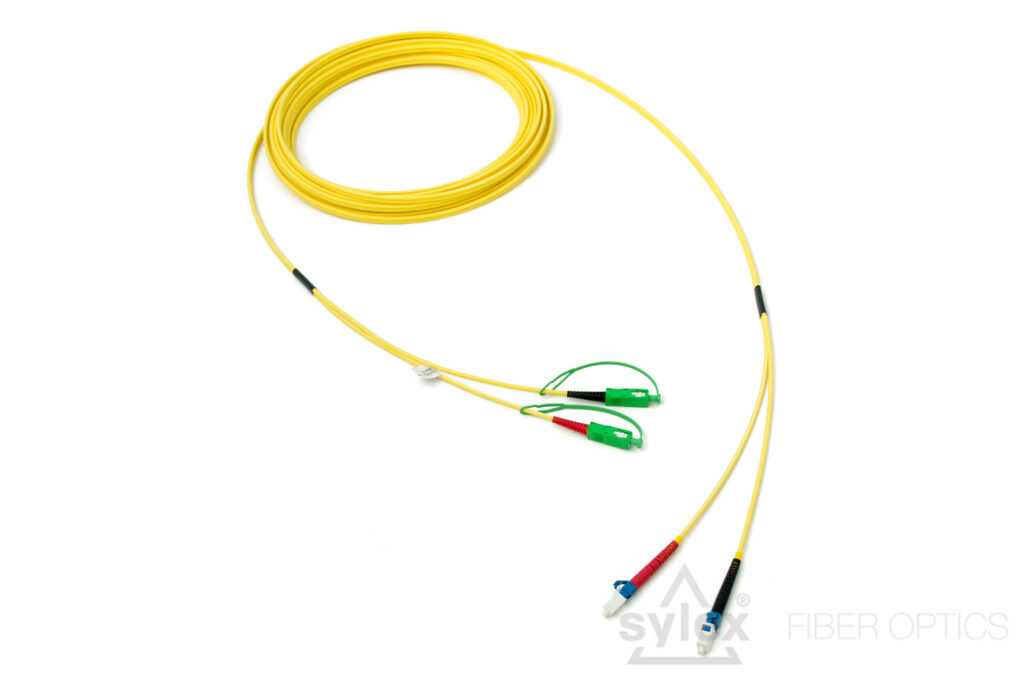

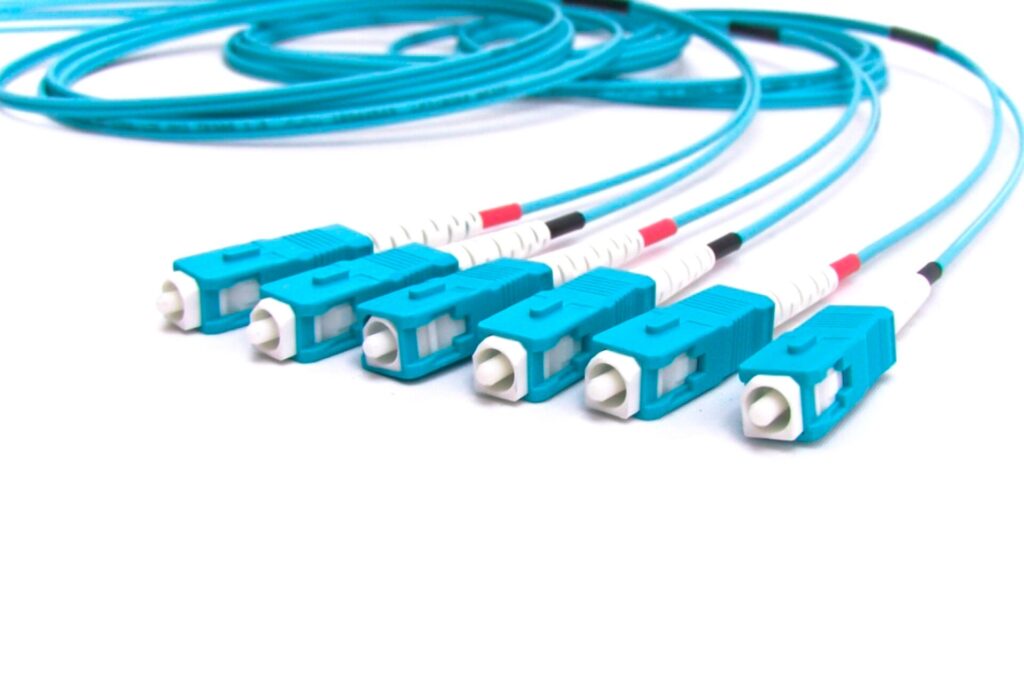

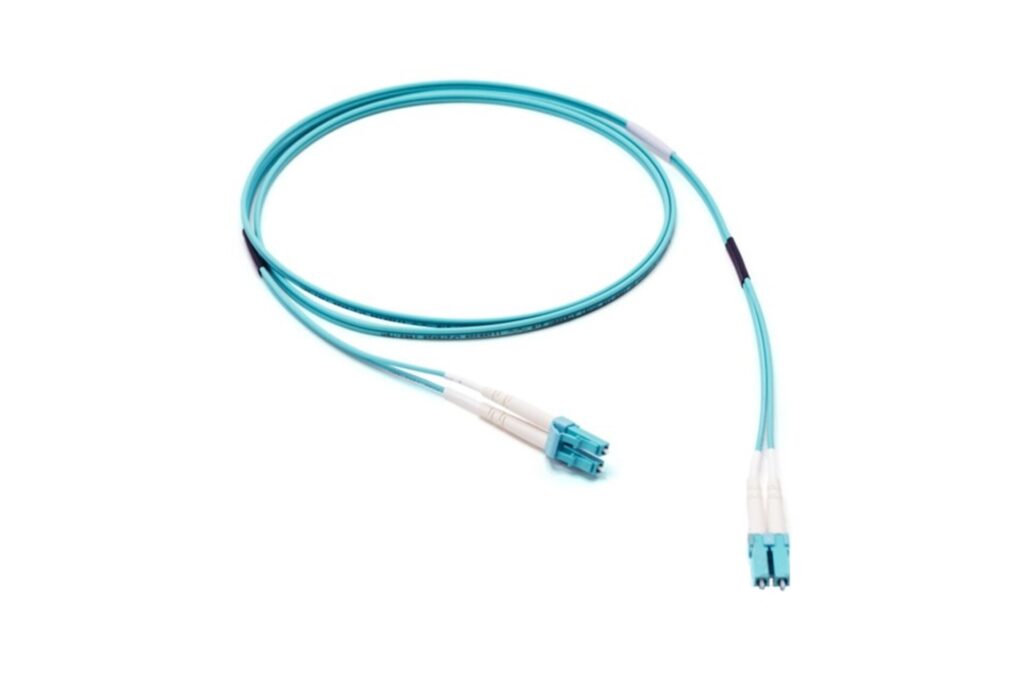

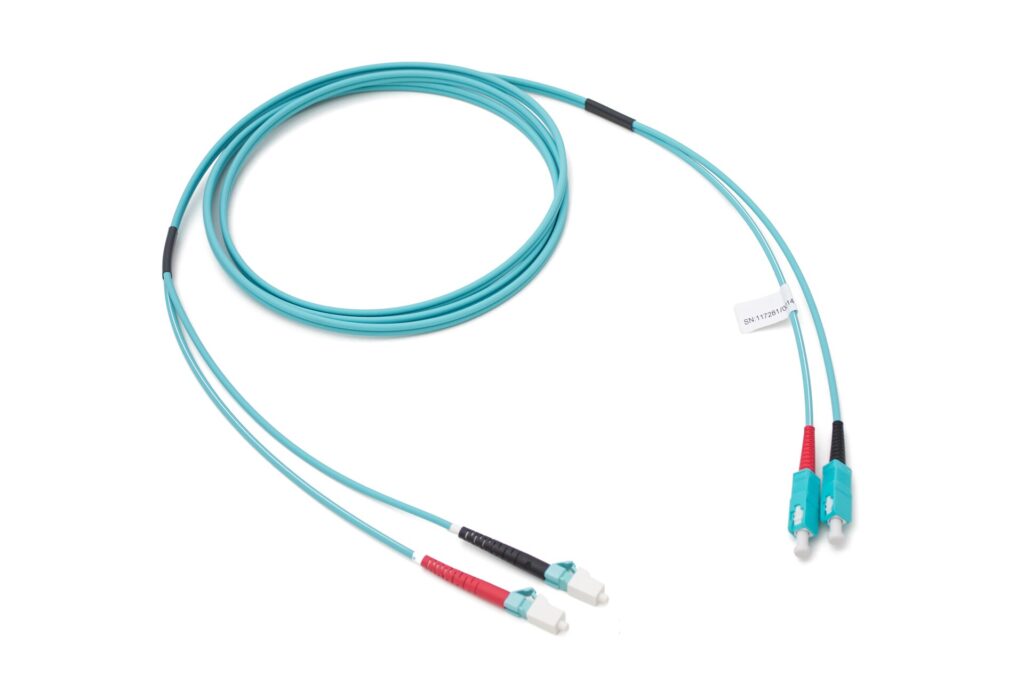

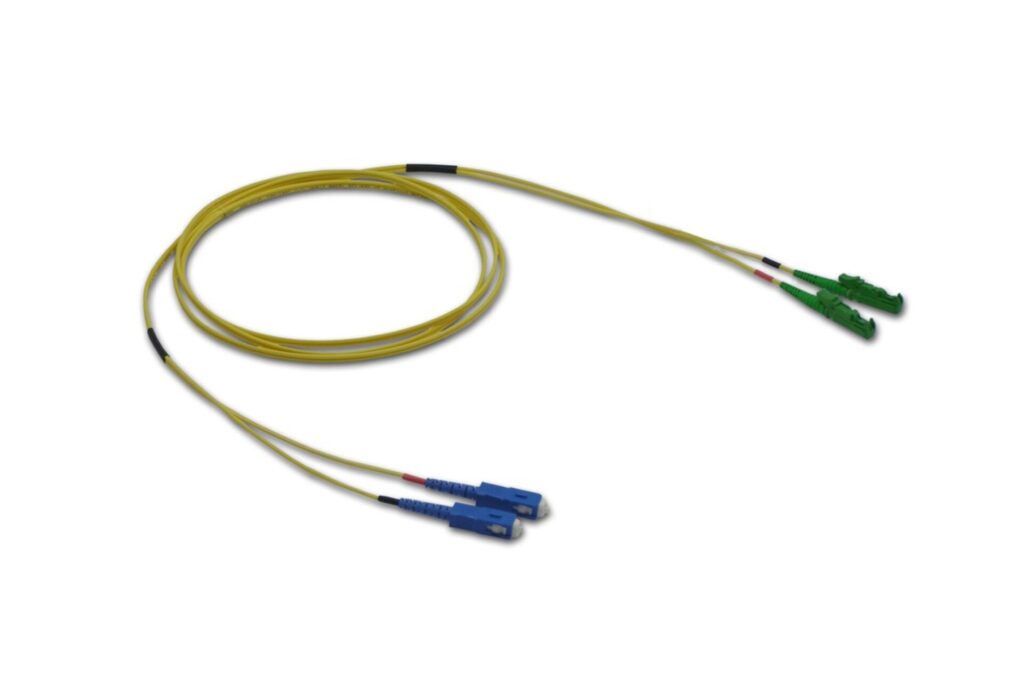

Indoor controlled environment (-10°C /+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
| Cable construction | Duplex cable | ||
| Outer diameter | approx. 1.8mm x 3.7mm | ||
| Fiber count | 2 | ||
| Fiber type | SM OS2 or MMF OM1/OM2/OM3/OM4 | ||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
| Installation: -5°C to +50°C | |||
| Connector parameters |
LC, SC, ST, FC, E2000 (SM)
|
LC, SC, ST, FC, E2000 (MM)
|
|
| Insertion Loss (acc. IEC 61300-3-4 method B) |
<0,25dB
(@1310/1550nm)
|
<0,25dB
(@850/1300nm)
|
|
| Return Loss (acc. IEC 61300-3-6) |
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
|
>30dB
(@850/1300nm)
|
|
| Identification | Traceability label with unique serial number. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| LC/UPC-LC/UPC OS2 duplex patchcord 1.8mm | C229-LL1-xxx |
| LCD/UPC-LCD/UPC OS2 duplex patchcord 1.8mm | C229-LL2-xxx |
| LC/APC-LC/APC OS2 duplex patchcord 1.8mm | C229-AA1-xxx |
| LCD/APC-LCD/APC OS2 duplex patchcord 1.8mm | C229-AA2-xxx |
| SC/UPC-SC/UPC OS2 duplex patchcord 1.8mm | C229-SS1-xxx |
| SCD/UPC-SCD/UPC OS2 duplex patchcord 1.8mm | C229-SS2-xxx |
| SC/APC-SC/APC OS2 duplex patchcord 1.8mm | C229-BB1-xxx |
| SCD/APC-SCD/APC OS2 duplex patchcord 1.8mm | C229-BB1-xxx |
| E2000/UPC-E2000/UPC OS2 duplex patchcord 1.8mm | C229-EE1-xxx |
| E2000/APC-E2000/APC OS2 duplex patchcord 1.8mm | C229-CC1-xxx |
| ST/UPC-ST/UPC OS2 duplex patchcord 1.8mm | C229-TT1-xxx |
| FC/UPC-FC/UPC OS2 duplex patchcord 1.8mm | C229-DD1-xxx |
| FC/APC-FC/APC OS2 duplex patchcord 1.8mm | C229-HH1-xxx |
| LC/UPC-LC/UPC OS2 duplex patchcord 2.8mm | C239-LL1-xxx |
| LCD/UPC-LCD/UPC OS2 duplex patchcord 2.8mm | C239-LL2-xxx |
| LC/APC-LC/APC OS2 duplex patchcord 2.8mm | C239-AA1-xxx |
| LCD/APC-LCD/APC OS2 duplex patchcord 2.8mm | C239-AA2-xxx |
| SC/UPC-SC/UPC OS2 duplex patchcord 2.8mm | C239-SS1-xxx |
| SCD/UPC-SCD/UPC OS2 duplex patchcord 2.8mm | C239-SS2-xxx |
| SC/APC-SC/APC OS2 duplex patchcord 2.8mm | C239-BB1-xxx |
| SCD/APC-SCD/APC OS2 duplex patchcord 2.8mm | C239-BB1-xxx |
| E2000/UPC-E2000/UPC OS2 duplex patchcord 2.8mm | C239-EE1-xxx |
| E2000/APC-E2000/APC OS2 duplex patchcord 2.8mm | C239-CC1-xxx |
| ST/UPC-ST/UPC OS2 duplex patchcord 2.8mm | C239-TT1-xxx |
| FC/UPC-FC/UPC OS2 duplex patchcord 2.8mm | C239-DD1-xxx |
| FC/APC-FC/APC OS2 duplex patchcord 2.8mm | C239-HH1-xxx |
| LC/PC-LC/PC OM4 duplex patchcord 1.8mm | C224-LL1-xxx |
| LCD/PC-LCD/PC OM4 duplex patchcord 1.8mm | C224-LL2-xxx |
| SC/PC-SC/PC OM4 duplex patchcord 1.8mm | C224-SS1-xxx |
| SCD/PC-SCD/PC OM4 duplex patchcord 1.8mm | C224-SS2-xxx |
| E2000/PC-E2000/PC OM4 duplex patchcord 1.8mm | C224-EE1-xxx |
| ST/PC-ST/PC OM4 duplex patchcord 1.8mm | C224-TT1-xxx |
| FC/PC-FC/PC OM4 duplex patchcord 1.8mm | C224-DD1-xxx |
| LC/PC-LC/PC OM4 duplex patchcord 2.8mm | C234-LL1-xxx |
| LCD/PC-LCD/PC OM4 duplex patchcord 2.8mm | C234-LL2-xxx |
| SC/PC-SC/PC OM4 duplex patchcord 2.8mm | C234-SS1-xxx |
| SCD/PC-SCD/PC OM4 duplex patchcord 2.8mm | C234-SS2-xxx |
| E2000/PC-E2000/PC OM4 duplex patchcord 2.8mm | C234-EE1-xxx |
| ST/PC-ST/PC OM4 duplex patchcord 2.8mm | C234-TT1-xxx |
| FC/PC-FC/PC OM4 duplex patchcord 2.8mm | C234-DD1-xxx |
