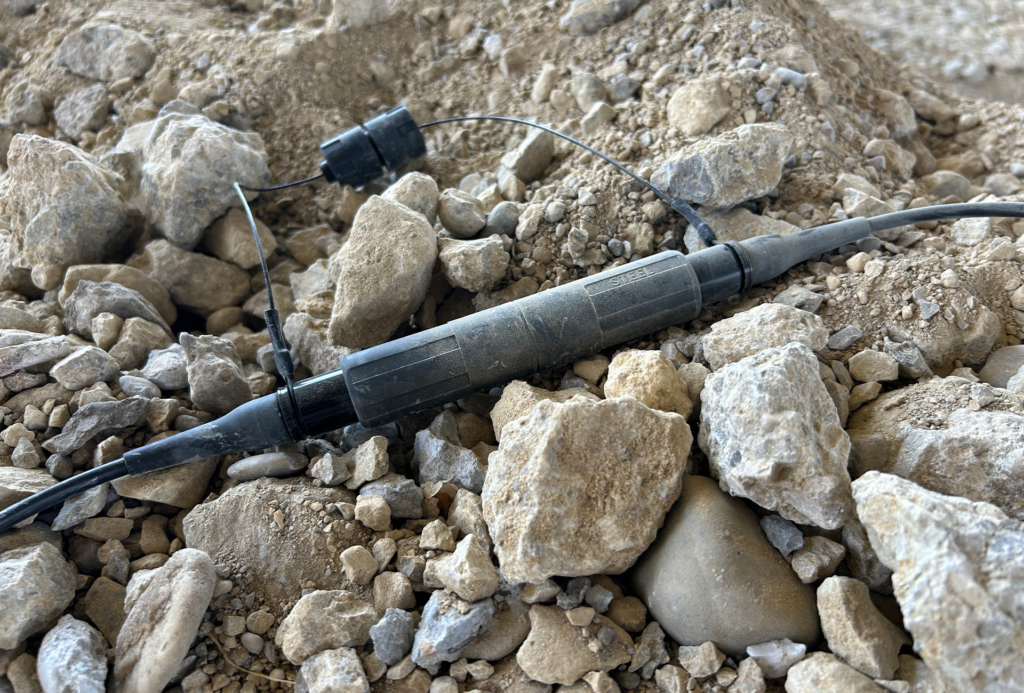

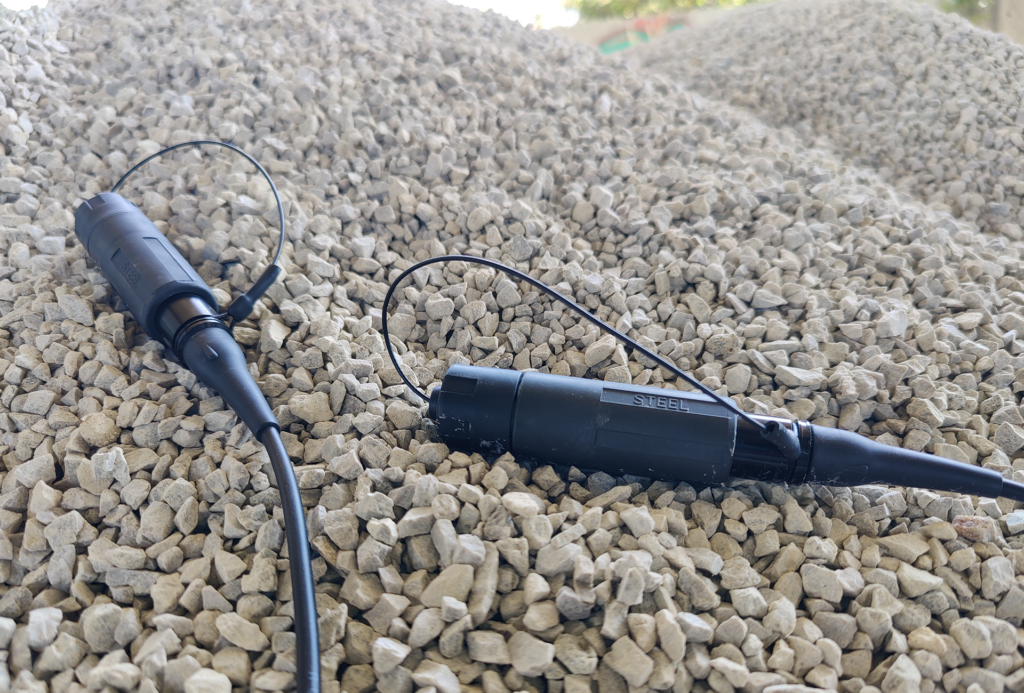

Temperature range | Outdoor environment (-55°C /+85°C) | ||
Cable parameters | Jacket material | PUR | |
Cable construction | Round cable | ||
Outer diameter | 5,5 mm | ||
Fiber count | 2/4 | ||
Fiber type | SM OS2 or MMF OM1/OM3/OM4/OM5 | ||
Temperature range | Operation: -55°C to +85°C | ||
Storage: -55°C to +85°C | |||
Installation: -20°C to +60°C | |||

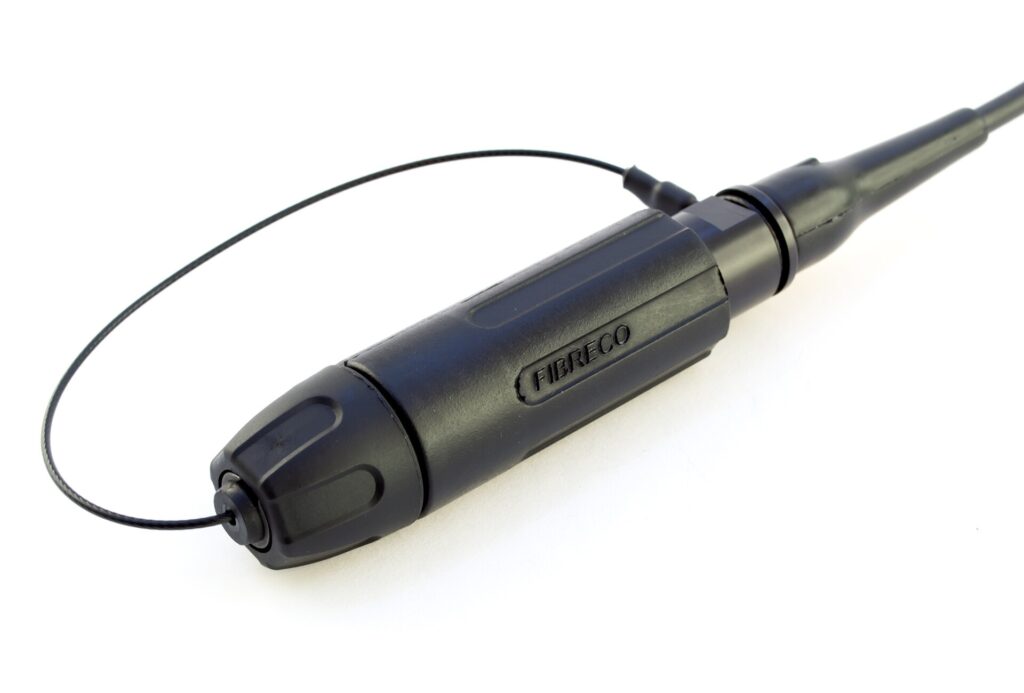

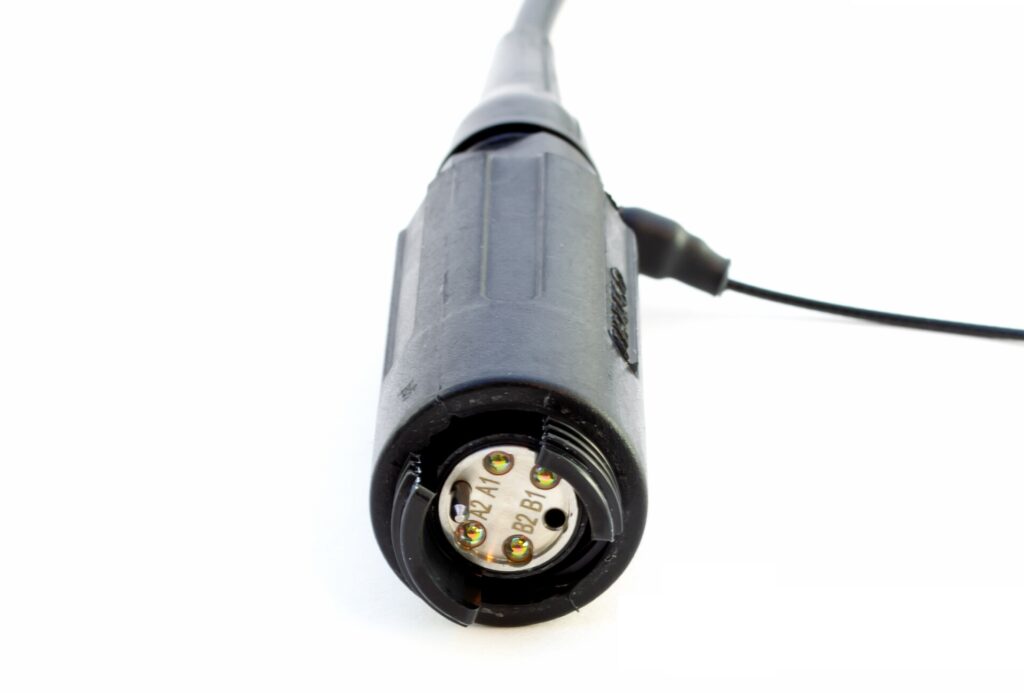

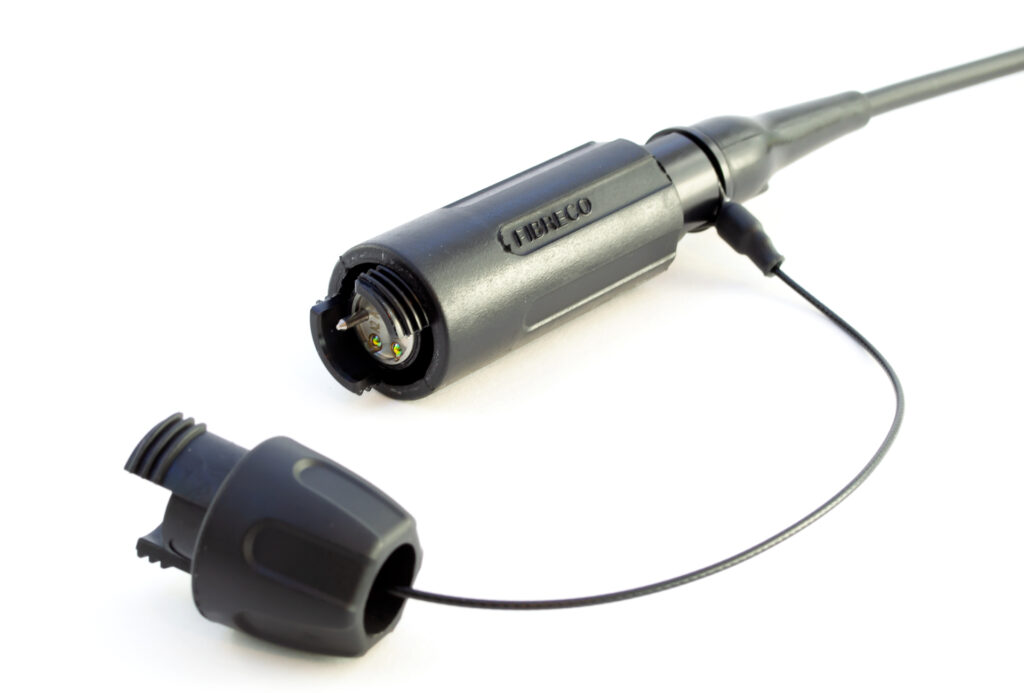

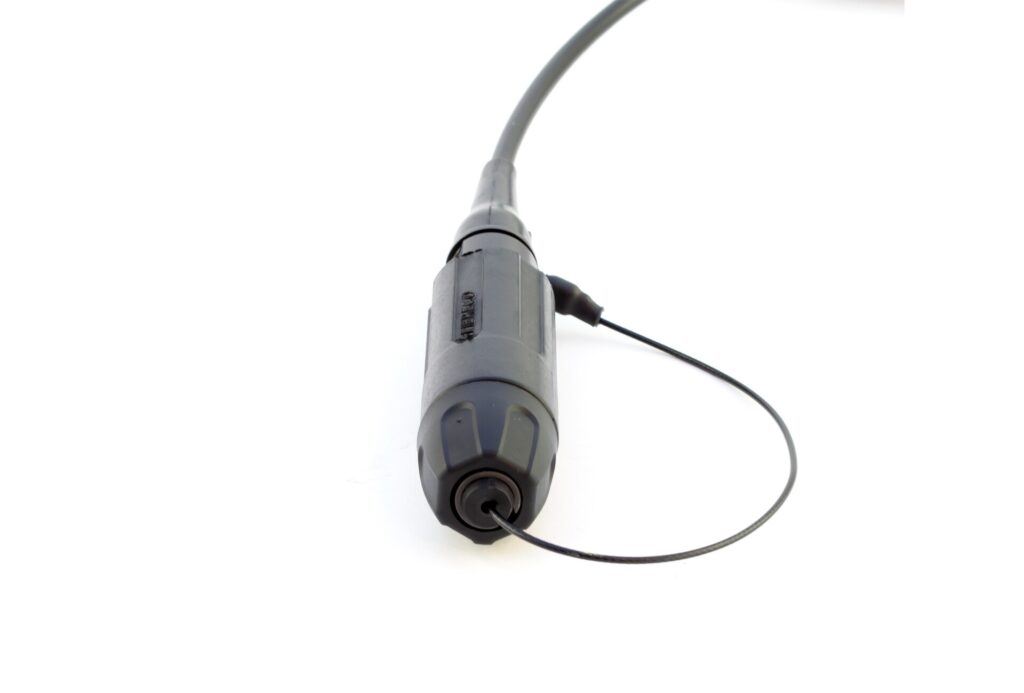

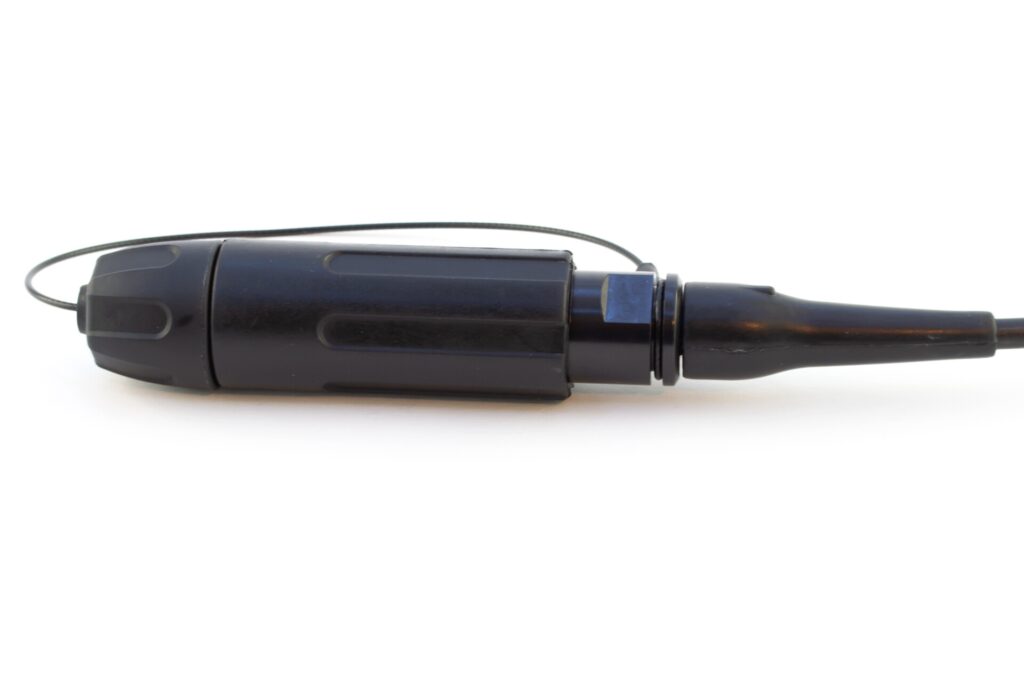

Connector parameters | PRO BEAM Jr. SM | PRO BEAM Jr. MM | |
Compliance | MIL-DTL-83526/20 | MIL-DTL-83526/20 | |
Color of housing | Black | Black | |
Color of boot | Black | Black | |
Insertion Loss | <1,5dB (@1310/1550nm) | <1,0dB (@850/1300nm) | |
Return Loss | >30dB (@1310/1550nm) | – | |
Durability | 3000 Matings minimum | ||
Water Immersion | 15m for 24 hours | ||
Free Fall Resistance | 500 Falls from 1.2m height | ||
Vibration | 20-500Hz, 3 directions, 0.75mm amplitude@ 10g acceleration | ||
Crush Resistance | 6700N | ||
Corrosion Resistance | 500 Hours Salt Spray | ||
Cable Retention | 1500N | ||
Identification | Traceability label with unique serial number on both ends of cable assembly. | ||

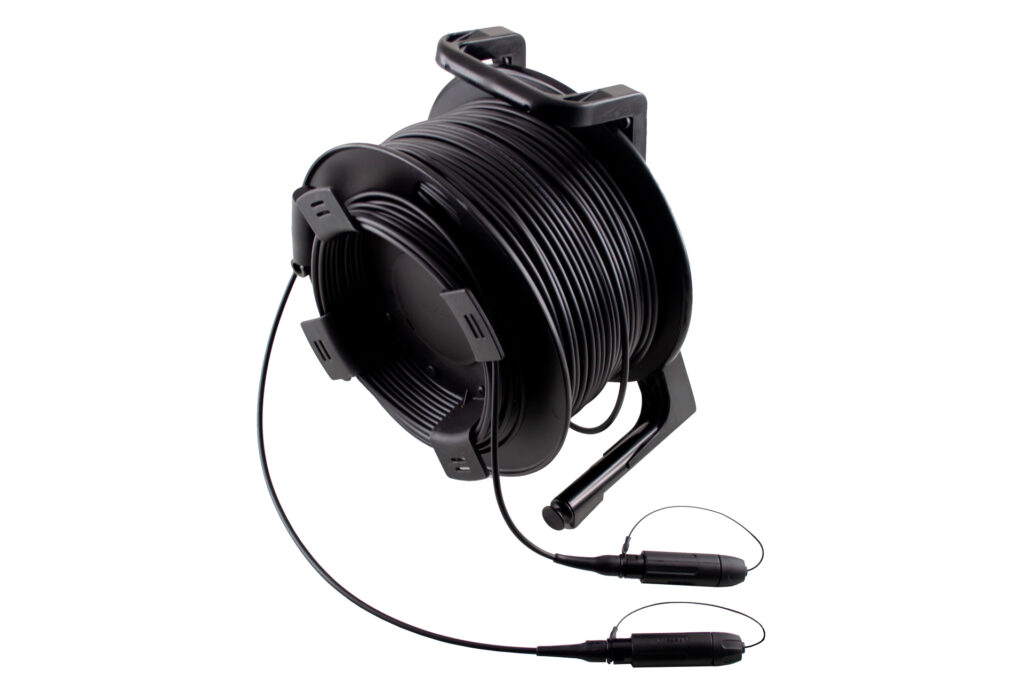

Packaging | Each assembly coiled on outdoor cable drum. |
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
Description | Partnumber/Ordering code |

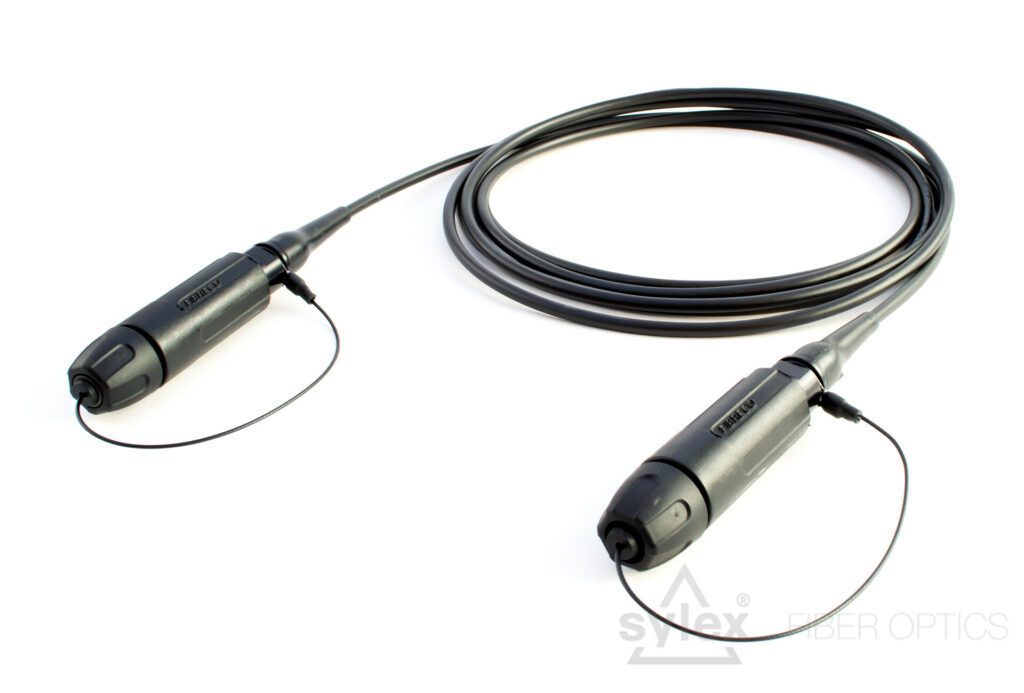

Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 02F Patch Cable OS2 | R029-66A-xxx |
Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 02F Patch Cable OM1 | R021-66A-xxx |
Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 02F Patch Cable OM3 | R023-66A-xxx |
Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 02F Patch Cable OM4 | R024-66A-xxx |
Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 04F Patch Cable OS2 | R049-66A-xxx |
Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 04F Patch Cable OM1 | R041-66A-xxx |
Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 04F Patch Cable OM3 | R043-66A-xxx |
Jr. Expanded Beam PLug – Jr. Expanded Beam PLug 04F Patch Cable OM4 | R044-66A-xxx |
