Interconnections

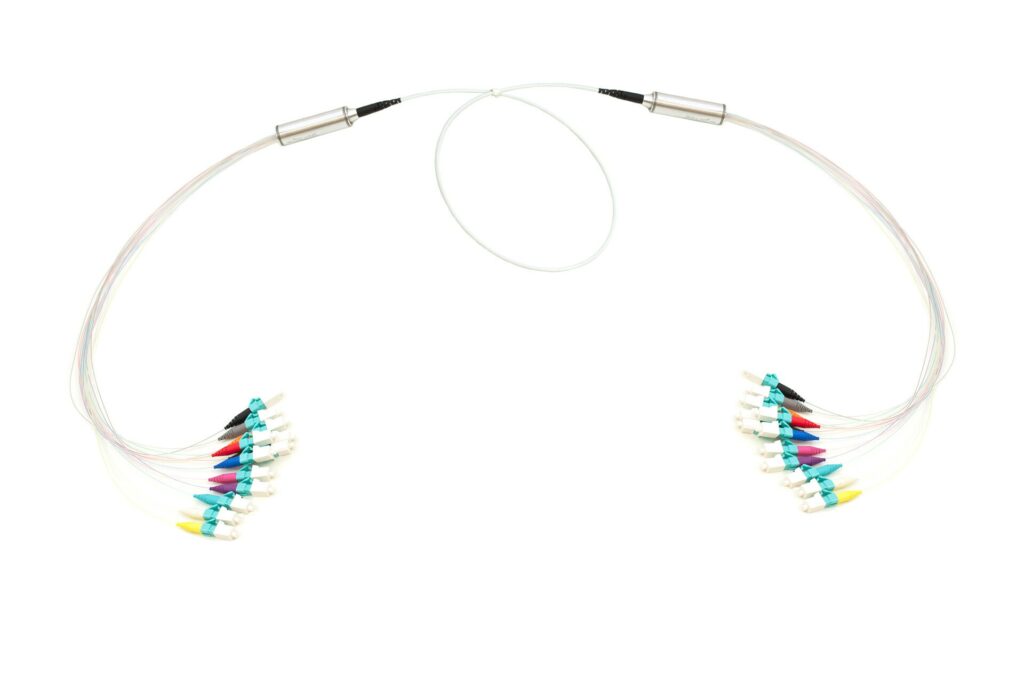

LC – LC 12-fiber Duralino Miniflex trunk – 900um

  • The handy and compact Duralino fanout design is capable of carrying nearly every cable design and gives SYLEX the opportunity to offer various solutions for trunks tailored to customer requirements, no matter whether you are building high-broadband backbone links, DataCenter/Telehouse interconnections or simple rack-to-rack cabling.
  • Cost, space and installation time-saving solutions for handy fiber optic network deployment – 12-fiber Miniflex version with 900um tubings is dedicated to create a direct connection between 2 ODFs within one room. Marking sleeves with each fiber identification saves the installation time and provide simple, but effective way to determine the correct fiber connection.
Share this entry
Temperature range
Indoor controlled environment (-10°C/+60°C)
Cable parameters
Jacket material
LSZH
Cable construction
Miniflex cable
Outer diameter
3.0mm
Fiber count
12
Fiber type
SM OS2 or MMF OM3/OM4/OM5
Temperature range
Operation: -20°C to +85°C
Installion: -20°C to +60°C
Connector parameters
LC SM LC MM
Compliance
Telcordia GR-326
Telcordia GR-326
Colour of connector
Blue (UPC)/Green (APC)
Aqua/Magenta/Lime Green
Colour of boot
colored acc. TIA/EIA 598-A colored acc. TIA/EIA 598-A
Polish
Flat (UPC) or Angled (APC) Flat (PC)
Insertion Loss
(acc. IEC 61300-3-4 method B)
<0,25dB
(@1310/1550nm)
<0,25dB (@850/1300nm)
Return Loss
(acc. IEC 61300-3-6)
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
>30dB (@850/1300nm)
Fanout
Material (body / other parts)
ABS* / metal
Duralino body diameter
15.5mm
IP Rating
IP40
Identification Traceability label with unique serial number on both ends of cable assembly.
Packaging
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
* Fanout metal body optional
Description
Partnumber/Ordering code
LC/APC – LC/APC 12-fiber OS2 Duralino Miniflex trunk – 900um
T129-AA9-XXX-M
LC/PC – LC/PC 12-fiber OS2 Duralino Miniflex trunk – 900um
T129-LL9-XXX-M
LC/PC – LC/PC 12-fiber OM3 Duralino Miniflex trunk – 900um T123-LL9-XXX-M
LC/PC – LC/PC 12-fiber OM4 Duralino Miniflex trunk – 900um T124-LL9-XXX-M
LC/APC – LC/APC 12-fiber OS2 Duralino Miniflex trunk – 900um – with grommet G129-AA9-XXX-M
LC/PC – LC/PC 12-fiber OS2 Duralino Miniflex trunk – 900um – with grommet G129-LL9-XXX-M
LC/PC – LC/PC 12-fiber OM3 Duralino Miniflex trunk – 900um – with grommet G123-LL9-XXX-M
LC/PC – LC/PC 12-fiber OM4 Duralino Miniflex trunk – 900um – with grommet G124-LL9-XXX-M
