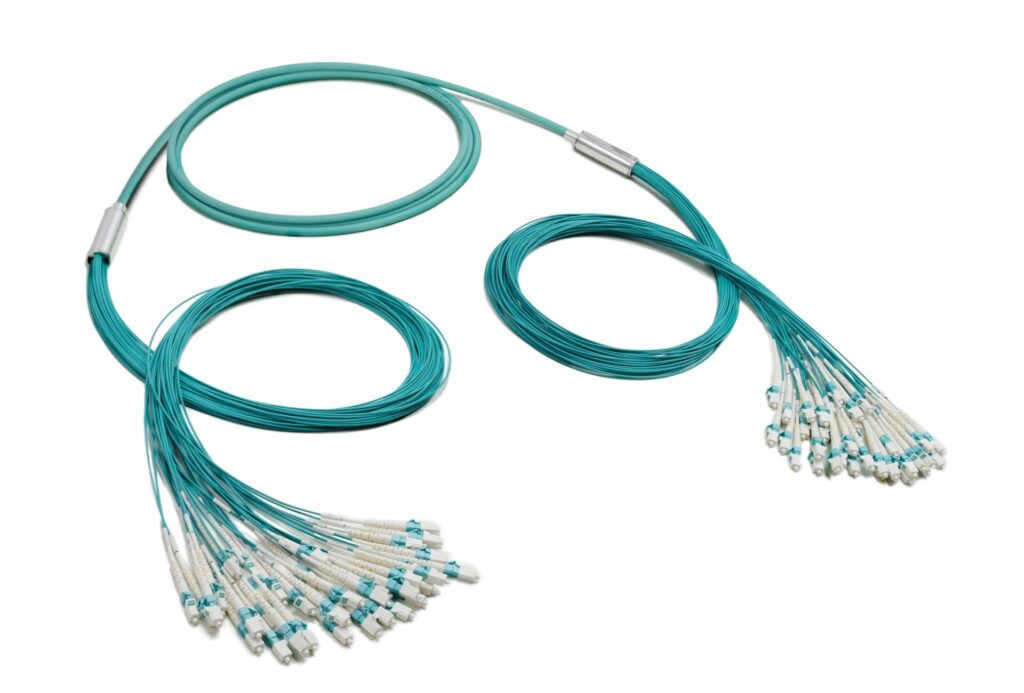

LC – LC 48-fiber Duralino trunk – Simplex

LC – LC 48-fiber Duralino trunk – Simplex
LC – LC 48-fiber Duralino trunk – Simplex

Datasheet Drawing

  • The handy and compact Duralino fanout design is capable of carrying nearly every cable design and gives SYLEX the opportunity to offer various solutions for trunks tailored to customer requirements, no matter whether you are building high-broadband backbone links, DataCenter/Telehouse interconnections or simple rack-to-rack cabling.
  • Factory pre-terminated trunk cables with Duralino fanout offers hi-fiber density interconnection links based on microbundle cables, offering thin, compact and flexible easy-to-install trunk. Complex 48-fiber Duralino trunk suits wide range of application where fast and simple installation is needed.

Temperature range
 Indoor controlled environment (-10°C/+60°C)
Cable parameters
Jacket material
LSZH
Cable construction
 Micro-Bundle
Outer diameter
 5.7mm
Fiber count
 48
Fiber type
SM OS2 or MMF OM3/OM4/OM5
Temperature range
Operation: -10°C to +70°C
Storage: -25°C to +70°C
Installion: -5°C to +50°C
CPR
Cca-s1a, d1, a1
Connector parameters
LC SM LC MM
Compliance
Telcordia GR-326
 Telcordia GR-326
Colour of connector
Blue (UPC)/Green (APC)
 Aqua/Magenta/Lime Green
Colour of boot
 White (UPC) or Green (APC) White
Polish
 Flat (UPC) or Angled (APC) Flat (PC)
Insertion Loss
(acc. IEC 61300-3-4 method B)
<0,25dB
(@1310/1550nm)
 <0,25dB
(@850/1300nm)
Return Loss
(acc. IEC 61300-3-6)
>50dB (UPC)/>60dB (APC)
(@1310/1550nm)
 >30dB
(@850/1300nm)
Fanout
Material (body / other parts)
metal / metal
Duralino body diameter
 21 mm
IP Rating
 IP40
Identification Traceability label with unique serial number on both ends of cable assembly.
Packaging
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel.
