Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Parameters |
Dimensions |
482 x 251 x 88 mm (2U)
|
|
|
Material |
powdered coating steel | ||
|
Colour |
light gray RAL7035
|
||
|
Capacity |
up to 96 fibers | ||
| Cable entry ports |
grommet/gland |
4x PG13,5/M20 or 8x PG7/M12
|
|
|
Duralino fanout® |
4x Duralino fanout® size XL/L or
8x Duralino fanout® size S
|
||
| Insertion Loss (acc. IEC 61300-3-4 method B) | <0,25dB (@1310/1550nm) <0,25dB (@850/1300nm) |
||
| Return Loss (acc. IEC 61300-3-6) | >50dB(UPC) / >60dB(APC) (@1310/1550nm) >30dB (@850/1300nm) |
||
| details in section pigtails | |||
| Identification | Label with unique serial number. | ||
| Packaging |
Each patchpanel in cardboard box, bulk pack on palette. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
|

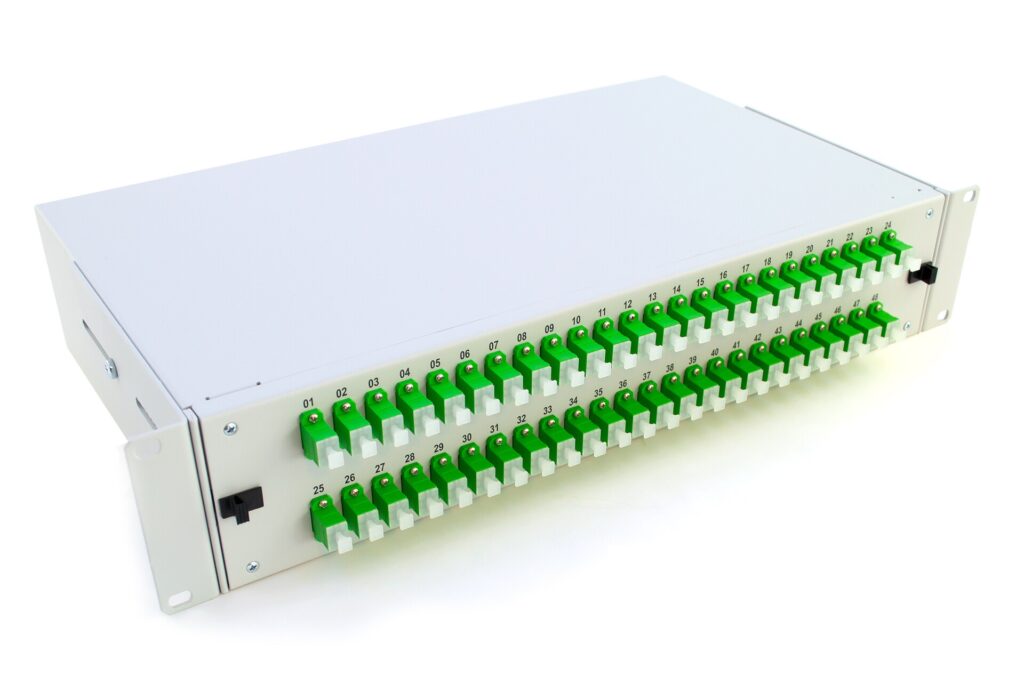

PATCHPANEL 2U 48x SC/UPC OS2 fully loaded |
O489-SS1-GR2 |
| PATCHPANEL 2U 48x SC/APC OS2 fully loaded | O489-SB1-GR2 |
| PATCHPANEL 2U 48x SC/PC OM3 fully loaded | O483-SS1-GR2 |
|
PATCHPANEL 2U 48x SC/PC OM4 fully loaded |
O484-SS1-GR2 |
| PATCHPANEL 2U 72x SC/UPC OS2 fully loaded | O729-SS1-GR2 |
| PATCHPANEL 2U 72x SC/APC OS2 fully loaded | O729-SB1-GR2 |
|
PATCHPANEL 2U 72x SC/PC OM3 fully loaded |
O723-SS1-GR2 |
|
PATCHPANEL 2U 72x SC/PC OM4 fully loaded |
O724-SS1-GR2 |
|
PATCHPANEL 2U 96x SC/UPC (48x SCD) OS2 fully loaded |
O969-SS2-GR2 |
| PATCHPANEL 2U 96x SC/APC (48x SCD) OS2 fully loaded | O969-SB2-GR2 |
| PATCHPANEL 2U 96x SC/PC (48x SCD) OM3 fully loaded | O963-SS2-GR2 |
|
PATCHPANEL 2U 96x SC/PC (48x SCD) OM4 fully loaded |
O964-SS2-GR2 |
