Temperature range |
Indoor controlled environment (-10°C /+60°C) | ||
| Cable parameters |
Jacket material |
LSZH
|
|
| Cable construction | Duplex cable | ||
| Outer diameter | approx. 1,8mm x 3,7mm or 2,8mm x 5,7mm | ||
| Fiber count | 2 | ||
| Fiber type | MMF OM1/OM3/OM4 | ||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
| Installation: -5°C to +50°C | |||

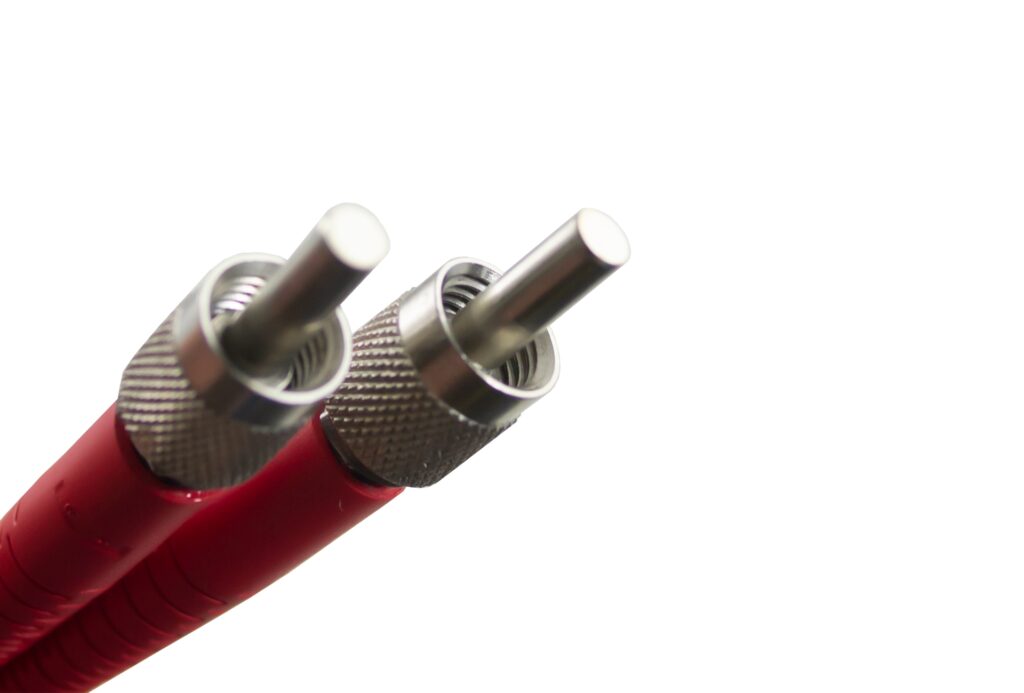

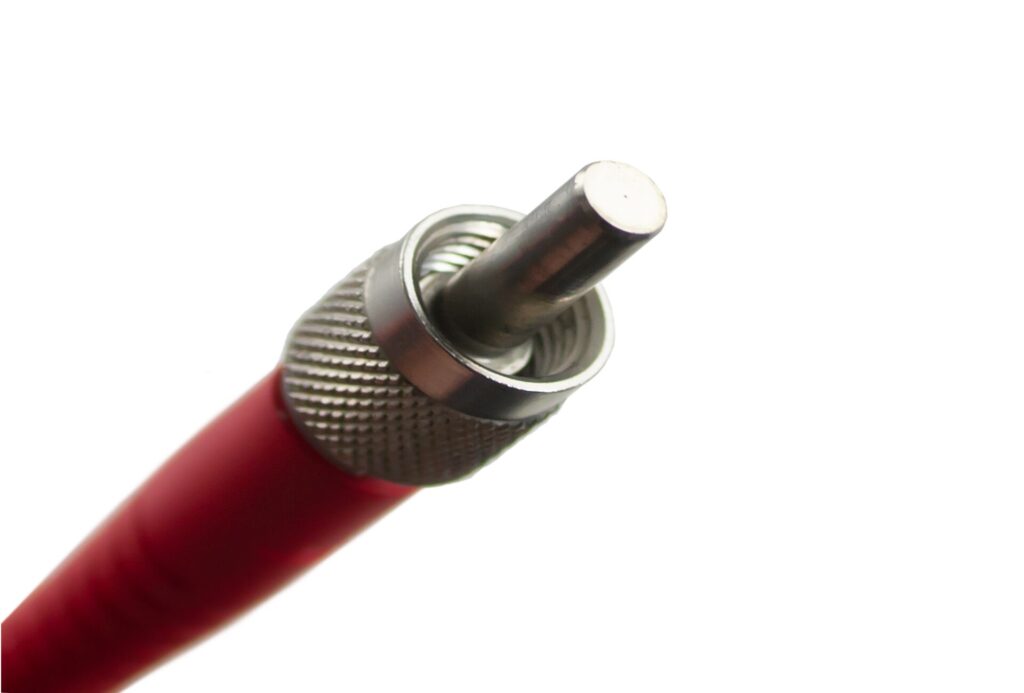

| Connector parameters |
SMA
|
||
| Compliance | IEC 61754-22 | ||
| Colour of housing | Metal | ||
| Colour of boot | Black/Red | ||
| Polish | Flat (PC) | ||
| Insertion Loss (acc. IEC 61300-3-4 method B) | <0,7dB (@850/1300nm) | ||
| Identification | Traceability label with unique serial number on both ends of cable assembly. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. Longer lengths coiled on cardboard/wooden reel. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |
| SMA – SMA OM1 1.8mm duplex patchcord | S021-ZZ2-xxx |
| SMA – SMA OM1 2.8mm duplex patchcord | S021-ZZ3-xxx |
| SMA – SMA OM3 1.8mm duplex patchcord | S023-ZZ2-xxx |
| SMA – SMA OM3 2.8mm duplex patchcord | S023-ZZ3-xxx |
| SMA – SMA OM4 1.8mm duplex patchcord | S024-ZZ2-xxx |
| SMA – SMA OM4 2.8mm duplex patchcord | S024-ZZ3-xxx |
| SMA – LC OM1 1.8mm duplex patchcord | S021-ZL2-xxx |
| SMA – LC OM1 2.8mm duplex patchcord | S021-ZL3-xxx |
| SMA – LC OM3 1.8mm duplex patchcord | S023-ZL2-xxx |
| SMA – LC OM3 2.8mm duplex patchcord | S023-ZL3-xxx |
| SMA – LC OM4 1.8mm duplex patchcord | S024-ZL2-xxx |
| SMA – LC OM4 2.8mm duplex patchcord | S024-ZL3-xxx |
