Temperature range |
Extreme environment (-55°C /+125°C) | ||||||||||||||||||
| Cable parameters |
Jacket material |
PEEK
|
Fluoropolymer
|
Fluoropolymer
|
|||||||||||||||
| Cable construction | Simplex cable(outdoor version) | Simplex cable(outdoor version) | Bare ribbon(outdoor version) | ||||||||||||||||
| Outer diameter | 900um | 2.0mm | 3,42mm x 0,45mm | ||||||||||||||||
| Fiber count | 1 | 1 | 12 | ||||||||||||||||
| Fiber type | OS2, OM1/OM2 OM3/OM4 | OS2, OM1/OM4 | OS2, OM1/OM3 | ||||||||||||||||
| Temperature operation range | -65°C to +135°C | -65°C to +125°C | -55°C to +125°C (OM1) -60°C to +85°C (OM3) | ||||||||||||||||
| Connector parameters |
Arinc 801 |
||||||||||||||||||
| Compliance | ARINC 801, MIL-DTL-38999, Series III | ||||||||||||||||||
| Colour of housing | N/A | ||||||||||||||||||
| Colour of boot | N/A | ||||||||||||||||||
| Polish | Flat MM (PC) / Flat SM (UPC) / Angled (APC) | ||||||||||||||||||
| Insertion Loss(acc. IEC 61300-3-4 method B also described in ARINC 805) | <0,50dB (MM/PC) (@850/1300nm) <0,50dB (SM/UPC) (@1310/1550nm) <0,50dB (SM/APC) (@1310/1550nm) |
||||||||||||||||||
| Return Loss(acc. IEC 61300-3-6 also described in ARINC 805)) | >20dB (MM/PC) (@850/1300nm) >50dB (SM/UPC) (@1310/1550nm) >65dB (SM/APC) (@1310/1550nm) | ||||||||||||||||||
| Identification | raceability label with unique serial number on both ends of cable assembly. | ||||||||||||||||||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||||||||||||||||||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

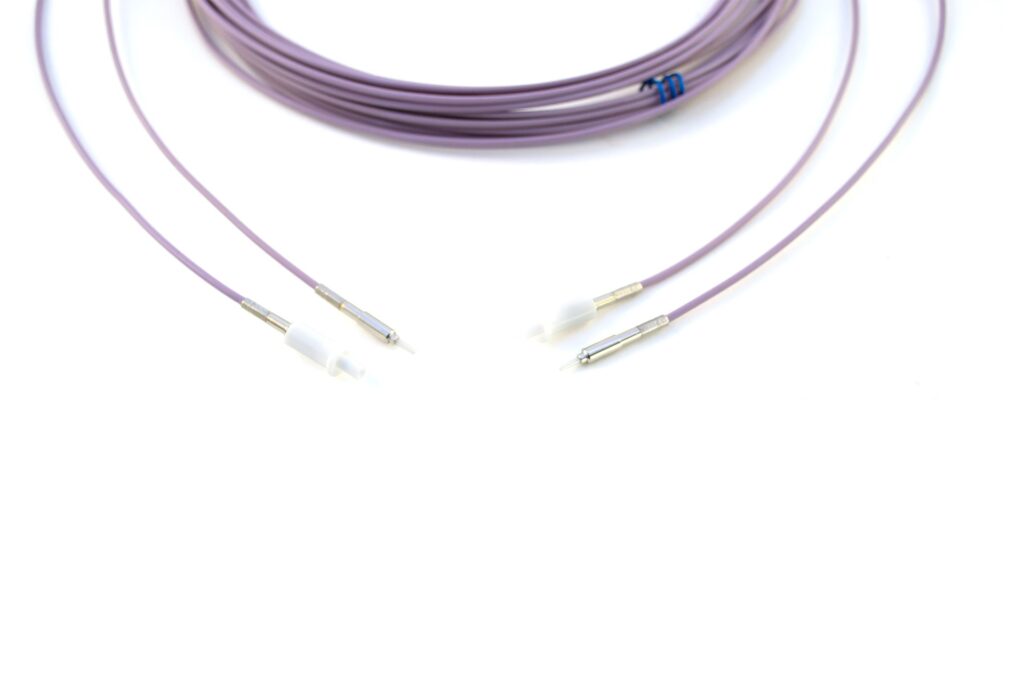

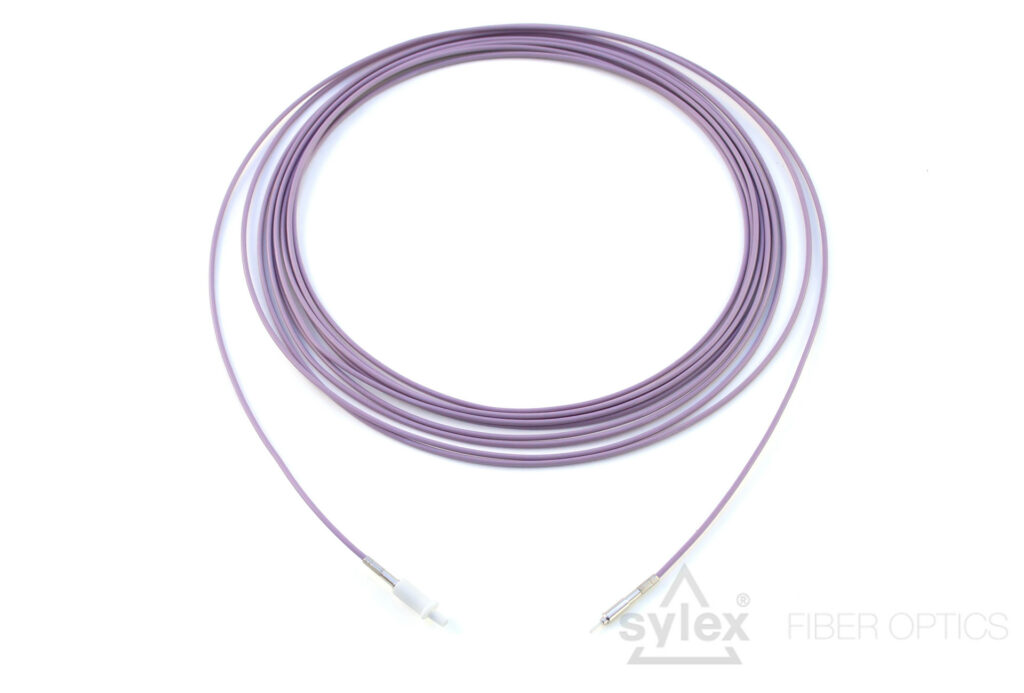

| ARINC 801 – ARINC 801 simplex jumper 900um OM3 | R013-999-xxx |
| ARINC 801 – ARINC 801 simplex jumper 2.0mm OM3 | R013-992-xxx |

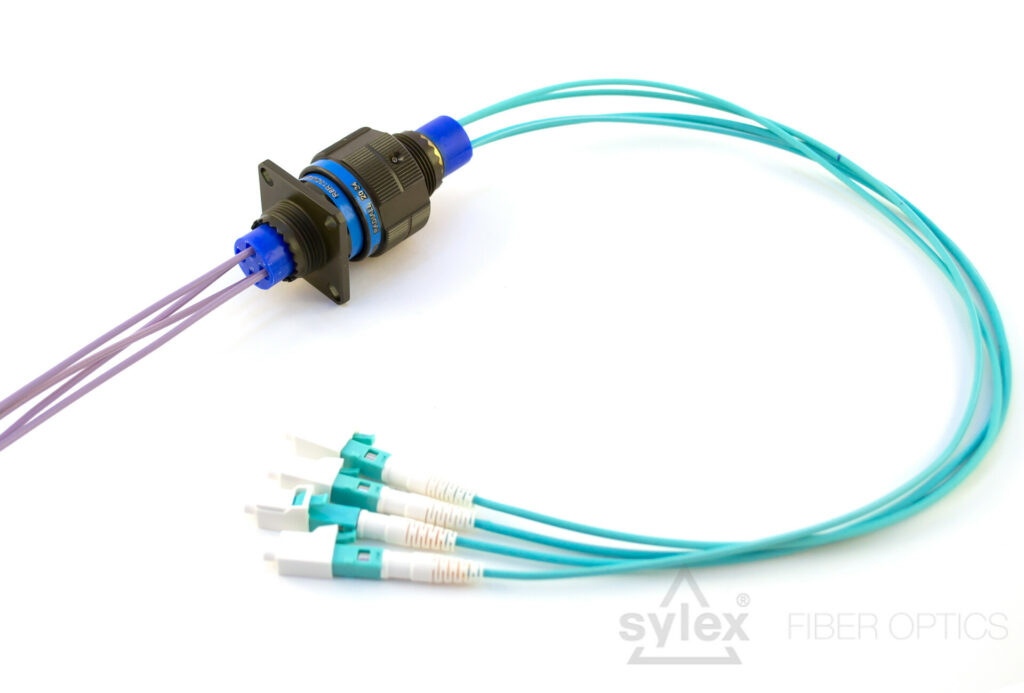

| 1x12f MTP(F) to 12x ARINC 801 12-fiber OM3 Slimfan fanout | R123-9FX-xxx |
| 1x12f MTP(M) to 12x ARINC 801 12-fiber OM3 Slimfan fanout | R123-9FX-xxx |

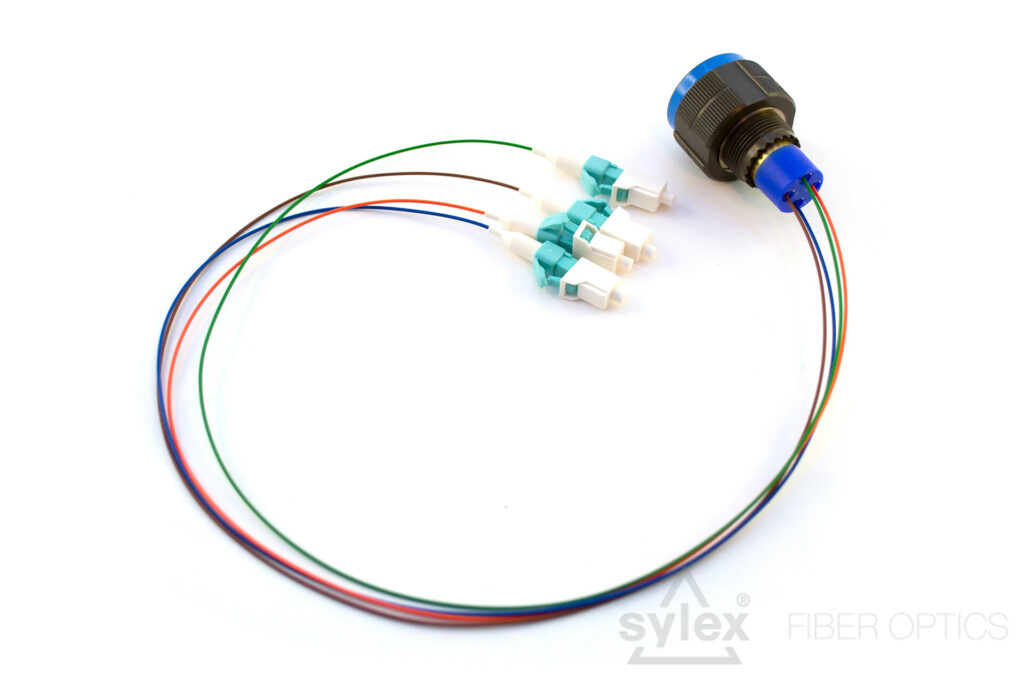

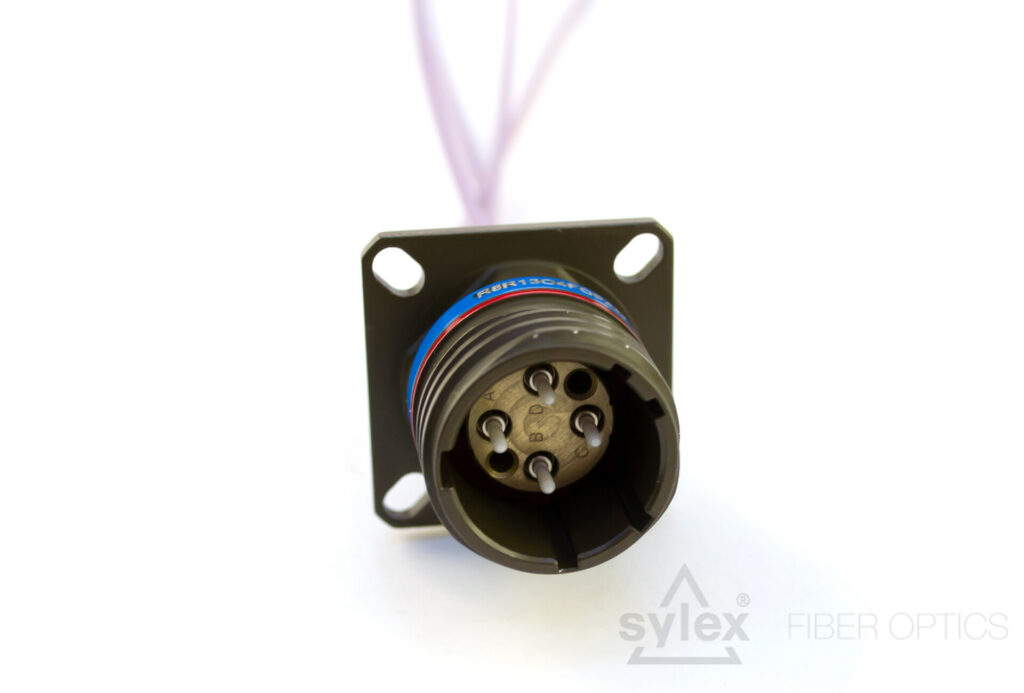

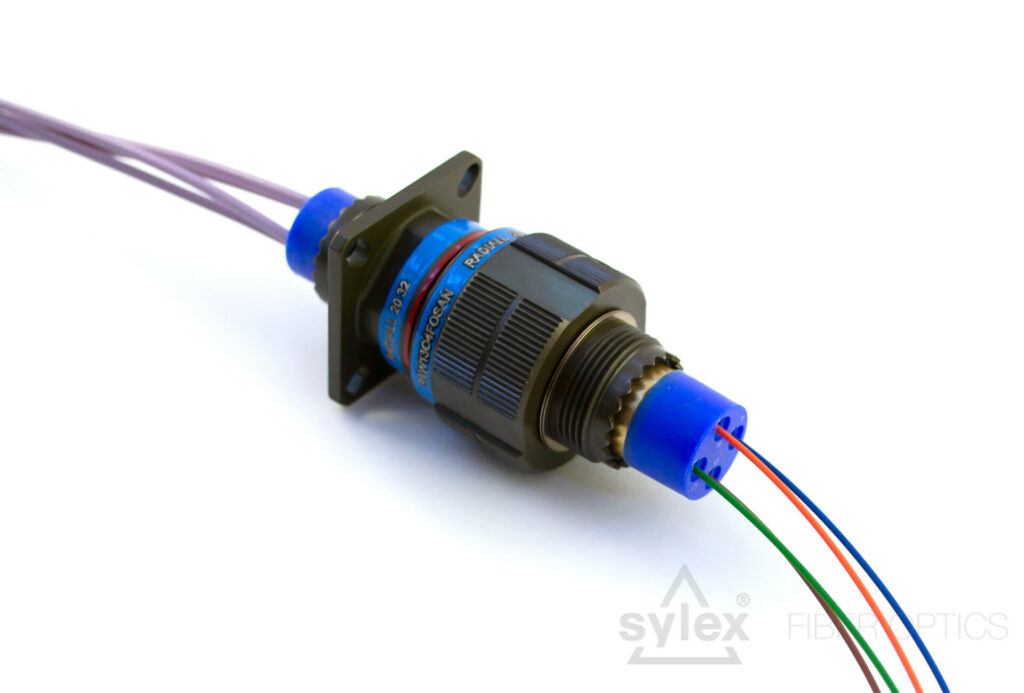

| ARINC 801 to LC , Aluminuim Olive drab shell, Size 19 / 12 pins, Receptacle Jum nut, 900um | RJ53-9L9-xxx-1N |
| ARINC 801 to LC , Aluminuim Olive drab shel, Size 19 / 12 pins, Plug, 2.0mm | RP53-9L2-xxx-1N |
* for more combination please see the drawing
