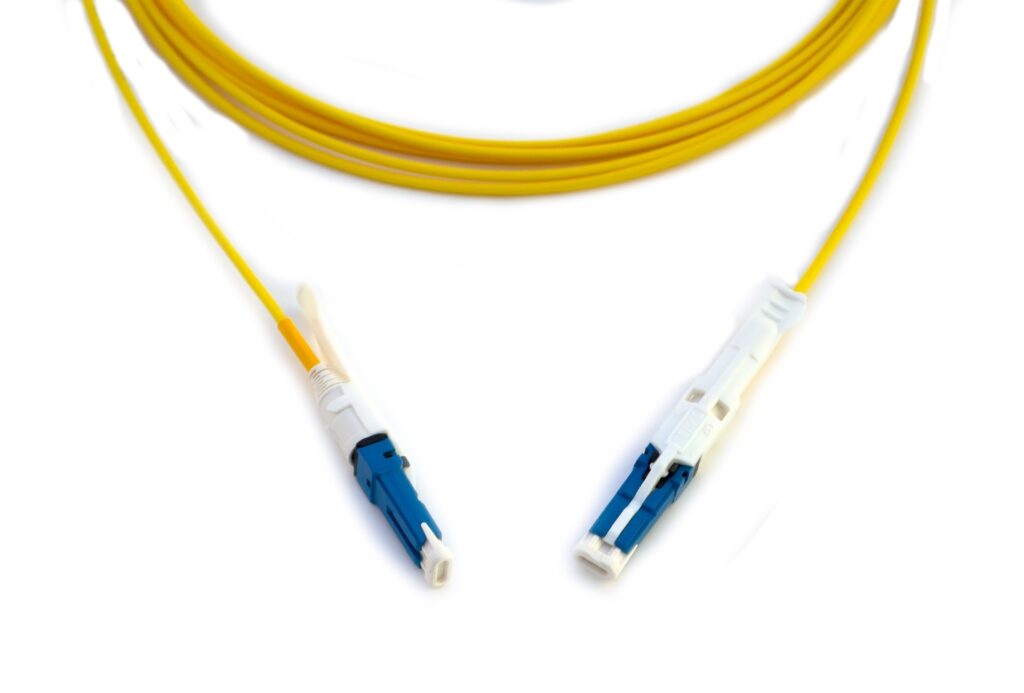

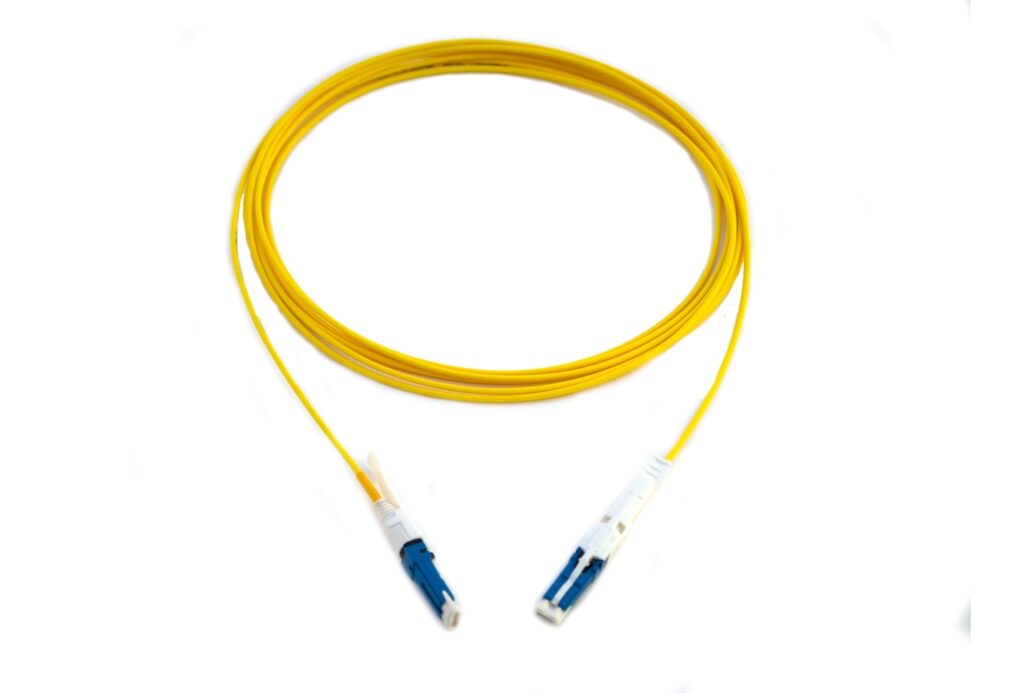

CS - CS duplex patchcord

End of Content.

Interconnections

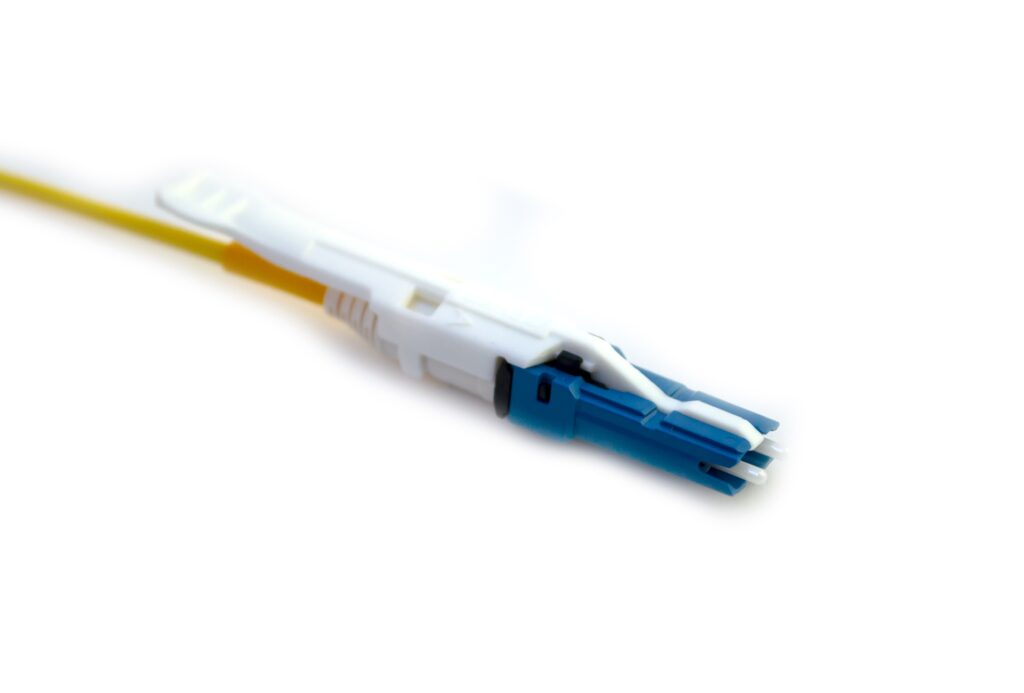

The CS duplex patch cord is normaly used for cross-connection between patch panels or distribution boxes with products which contains optical fibers. The perfect feature of the CS connectors is an easy polarity change. The CS connectors fully meet today’s TOSA and ROSA optic requirments for minimum distance 3.8mm between ferrules, push-pull boot advantage and the small-form-factor connector design. New QSFP-DD and SFP-DD transceivers can be directly connected by these patch cords.
We can offer you SM (OS2) and MM (OM3, OM4, OM5) patch cords as well as bend-insensitive single-mode patch cords with fibre G657.A. Hybrid versions combined with all standard single-fibre connectors are available as well.
OFNP cable option available.

Share this entry

Temperature range	Indoor controlled environment (-10°C/+60°C)
Cable parameters	Jacket material	LSZH
	Cable construction	Round single jacket cable
	Outer diameter	1,85mm
	Fiber count	2
	Fiber type	SMF OS2, MMF OM3/OM4/OM5
	Temperature range	Operation: -10°C to +70°C
		Storage: -25°C to +70°C
		Installation: -5°C to +50°C
Connector parameters		CS SM/MM
	Compliance	Telecordia GR-326
	Colour of housing	SM – Blue (UPC), MM – Aqua/Magenta/Lime Green
	Colour of boot	White
	Polish	Flat SM (UPC) / Flat MM (PC)
	Insertion Loss (acc. IEC 61300-3-4 method B)	<0,25dB (@850/1300nm & @1310/1550nm)
	Return Loss (acc. IEC 61300-3-6)	>50dB (UPC) (@1310/1550nm) >20dB (@850/1300nm)
Identification	Traceability label with unique serial number on both ends of cable assembly.
Packaging	Each assembly in sealed PE bag, bulk pack in cardboard box.

Description	Partnumber/Ordering code
CS/UPC – CS/UPC OS2 duplex patchcord	C229-00X-xxx
CS/UPC – LC/APC OS2 duplex patchcord	C229-0AU-xxx
CS/UPC – LC/UPC OS2 duplex patchcord	C229-0LU-xxx
CS/PC – CS/PC OM3 duplex patchcord	C223-00X-xxx
CS/PC – LC/PC OM3 duplex patchcord	C223-0LU-xxx
CS/PC – CS/PC OM4 duplex patchcord	C224-00X-xxx
CS/PC – LC/PC OM4 duplex patchcord	C224-0LU-xxx
CS/PC – CS/PC OM5 duplex patchcord	C225-00X-xxx
CS/PC – LC/PC OM5 duplex patchcord	C225-00U-xxx

* For more information see the drawing.
