Empty 1U patch panel with E2000 front panel

1U 19” sliding patchpanel offered by our company with E2000 front panel with simplex holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.

Share this entry

Temperature range	Indoor controlled environment (-10°C/+60°C)
Parameters	Dimensions	482 x 251 x 44 mm (1U)
	Material	powdered coating steel
	Colour	light gray RAL7035
		deep black RAL9005
	Capacity	up to 24 simplex holes
	Cable entry ports	grommet/gland	2x PG13,5/M20 or 4x PG7/M12
		Duralino fanout®	2xDuralino fanout® size XL/L or 4xDuralino fanout® size S
Identification	Label with unique serial number.
Packaging	Each patchpanel in cardboard box, bulk pack on palette.

Product drawing
Product drawing
Product sheet
Product sheet
Product sheet
Product sheet
Product sheet
Cable Datasheet
Cable Datasheet
Packaging specification
Optical Connector cleaning procedure
Polarities
Cable installation
Cable installation
Cable installation

Description	Partnumber/Ordering code

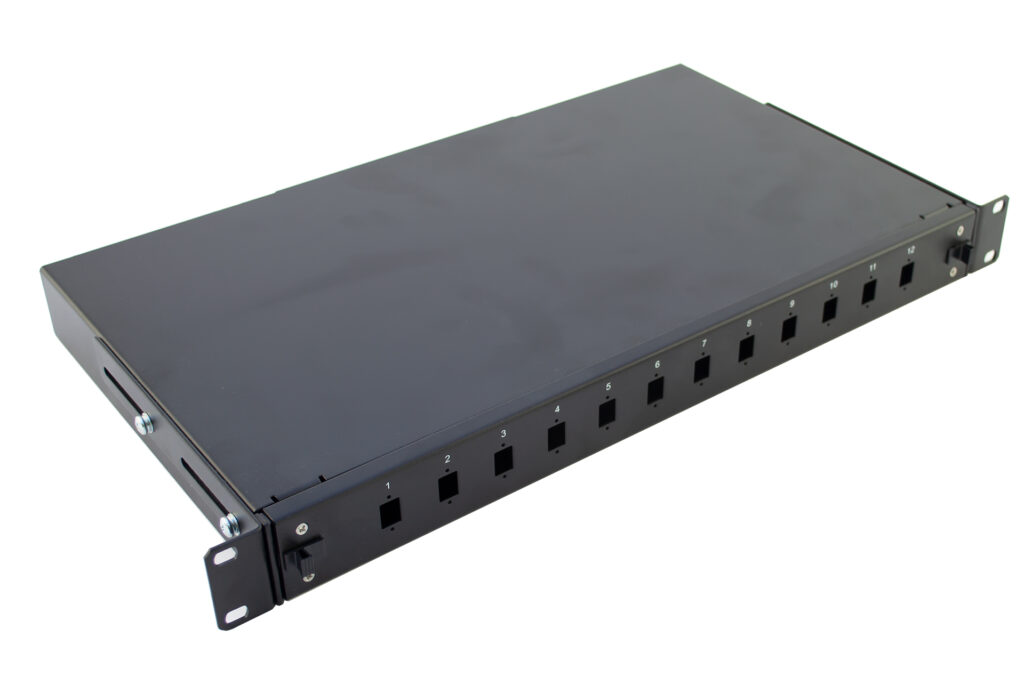

PATCHPANEL 1U with frontpanel 12x SC/LCD/E2000 empty	O12X-SX1-GRY (grey) / O12X-SX1-BLK (black)

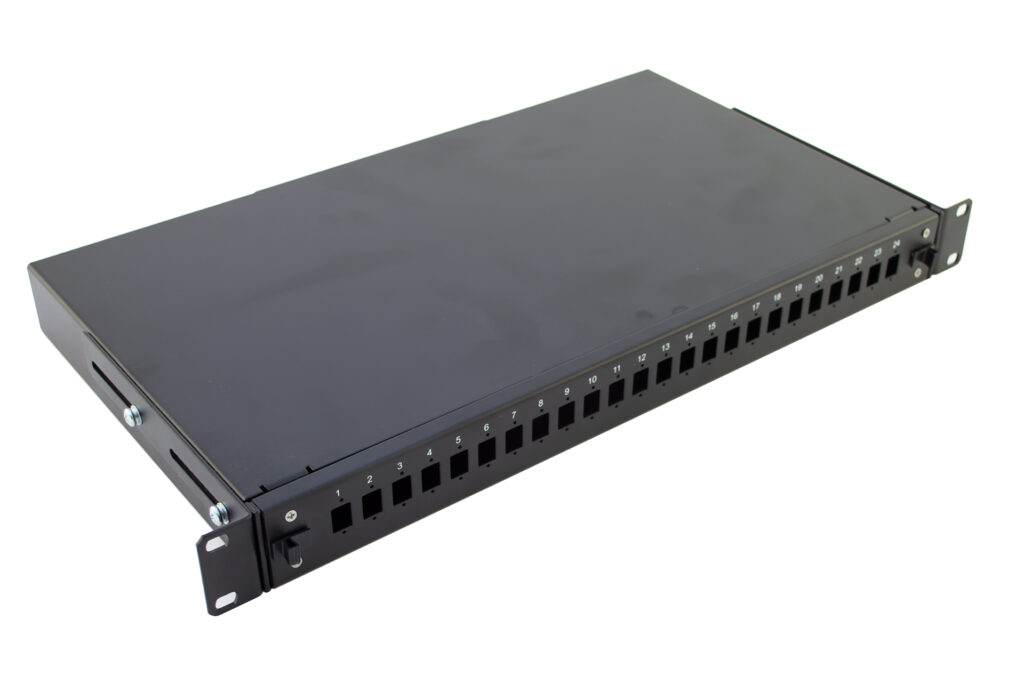

PATCHPANEL 1U with frontpanel 24x SC/LCD/E2000 empty	O24X-SX1-GRY (grey) / O24X-SX1-BLK (black)

Related products

E2000 1U patch panel – with adapters

1U 19” sliding patchpanel offered by our company with E2000 front panel with simplex holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. Loaded with E2000 simplex adapters. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.

E2000 1U patch panel – fully loaded

1U 19” sliding patchpanel offered by our company with E2000 front panel with simplex holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. Fully loaded with low loss pigtails and E2000 simplex adapters. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.
