MTP CXP CFP loopback

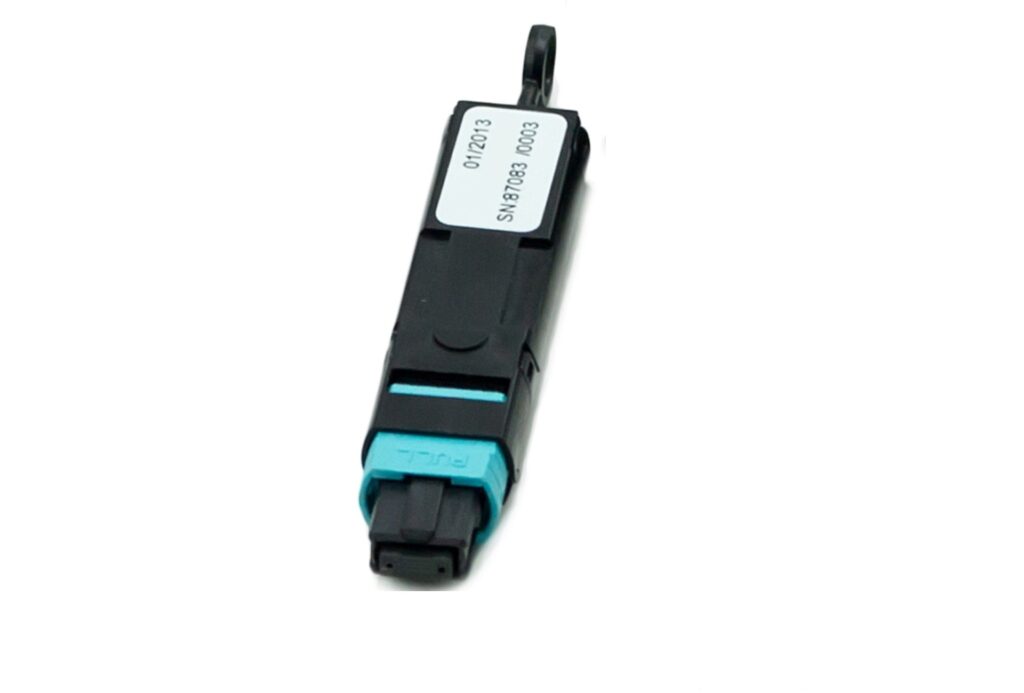

  • MTP CXP/CFP Loopback is used for testing the CXP/CFP transceiver ports by creating a loop of signal from transceiver to receiver within one MPO/MTP plug it forms optical link which allows testing of optical network segment by segment. It provides an cost effective way to evaluate CXP/CFP ports during R&D validation, product diagnostic and testing or field testing of device burn-in.
Share this entry
Temperature range
Indoor controlled environment (-10°C/+60°C)
Cable parameters
Jacket material
N/A
Cable construction
Bare fibers
Outer diameter
N/A
Fiber count
24
Fiber type
SM OS2 or MMF OM3/OM4
Temperature range Operation: -10°C to +70°C
Storage: -25°C to +70°C
Installation: -5°C to +50°C
Connector parameters
MTP SM MTP MM
Compliance
US CONEC standard
US CONEC standard
Colour of housing
Green
Aqua/Magenta
Colour of boot
N/A N/A
Polish
Angled (APC) Flat (PC)
Insertion Loss
(acc. IEC 61300-3-4 method B)
<0,7dB
(@1310/1550nm)
<1,0dB (@850/1300nm)
Identification Label with unique serial number.
Packaging
Each assembly in sealed PE bag, bulk pack in cardboard box.
Description
Partnumber/Ordering code
CXP/CFP MTP(F) Loopback OS2 L249-GXX-LPB
CXP/CFP MTP(F) Loopback OM3 L243-GXX-LPB
CXP/CFP MTP(F) Loopback OM4 L244-GXX-LPB
CXP/CFP MTP(M) Loopback OS2 L249-NXX-LPB
CXP/CFP MTP(M) Loopback OM3 L243-NXX-LPB
CXP/CFP MTP(M) Loopback OM4 L244-NXX-LPB

Related products

  • MTP QSFP Loopback is used for testing QSFP/QSFP+ transceiver ports by creating a loop of signal from transceiver to receiver within one MPO/MTP plug it forms optical link which allows testing of optical network segment by segment. It provides an cost effective way to evaluate QSFP/QSFP+ ports during R&D validation, product diagnostic and testing or field testing of device burn-in.
