Temperature range |
Indoor controlled environment (-10°C/+60°C) | ||
| Cable parameters |
Jacket material |
N/A
|
|
|
Cable construction |
Bare fibers | ||
|
Outer diameter |
N/A | ||
|
Fiber count |
12 | ||
|
Fiber type |
SM OS2 or MMF OM3/OM4
|
||
| Temperature range | Operation: -10°C to +70°C | ||
| Storage: -25°C to +70°C | |||
|
Installation: -5°C to +50°C
|
|||
| Connector parameters | MTP SM | MTP MM | |
|
Compliance |
US CONEC standard |
US CONEC standard | |
|
Colour of housing
|
Green |
Aqua/Magenta | |
|
Colour of boot
|
N/A | N/A | |
|
Polish
|
Angled (APC) | Flat (PC) | |
|
Insertion Loss
(acc. IEC 61300-3-4 method B)
|
<0,7dB
(@1310/1550nm)
|
<0,7dB (@850/1300nm) | |
| Identification | Label with unique serial number. | ||
| Packaging |
Each assembly in sealed PE bag, bulk pack in cardboard box. |
||
- Product drawing
- Product drawing
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Product sheet
- Cable Datasheet
- Cable Datasheet
- Packaging specification
- Optical Connector cleaning procedure
- Polarities
- Cable installation
- Cable installation
- Cable installation
|
Description |
Partnumber/Ordering code |

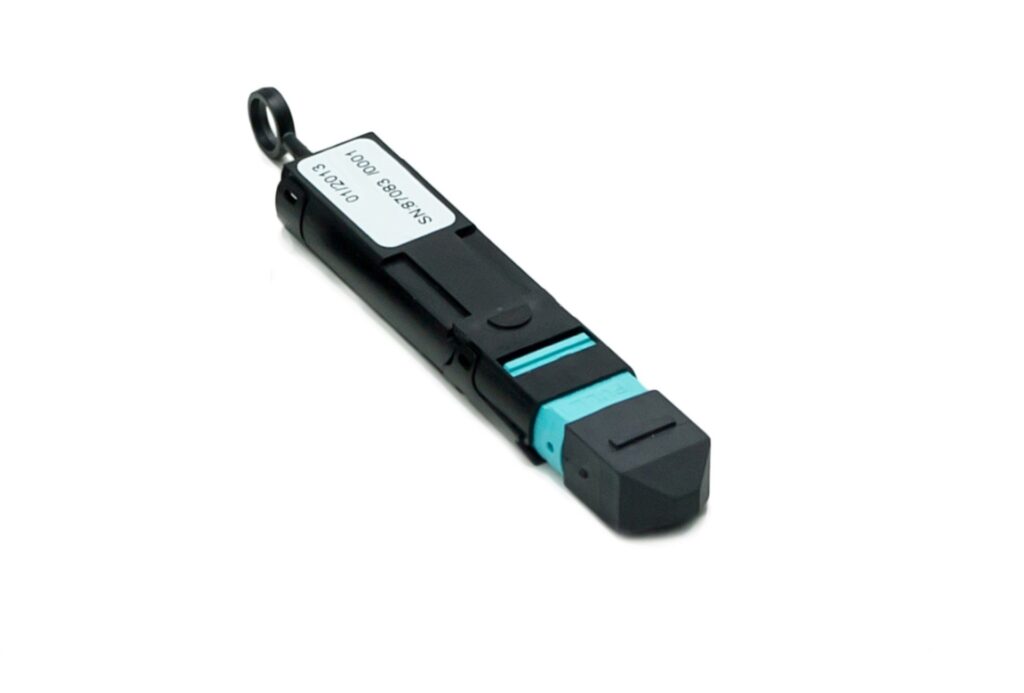

| QSFP MTP(F) Loopback OS2 | L129-FXX-LPB |
| QSFP MTP(F) Loopback OM3 | L123-FXX-LPB |
| QSFP MTP(F) Loopback OM4 | L124-FXX-LPB |
| QSFP MTP(M) Loopback OS2 | L129-MXX-LPB |
| QSFP MTP(M) Loopback OM3 | L123-MXX-LPB |
| QSFP MTP(M) Loopback OM4 | L124-MXX-LPB |
