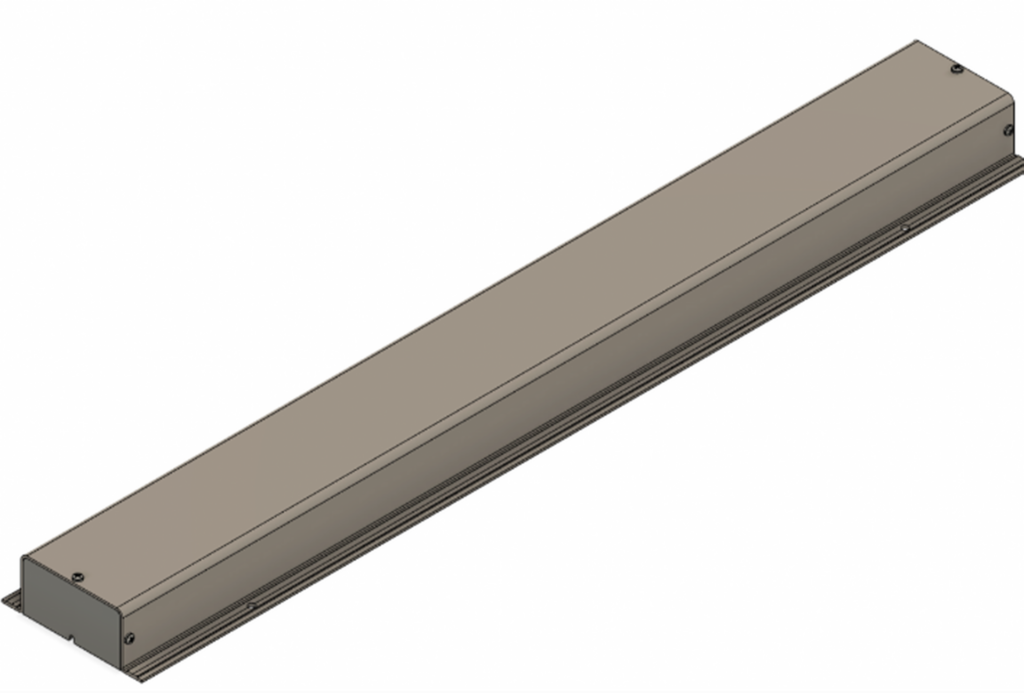

OPC-02 Outdoor Protective Cover for SC-01 strain sensor

Gallery


3D Visualisation



Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.


Documents



DatasheetDrawingPackagingCleaning and Mating Manual3D file
.STEP
Download all documents

Open
soon…soon…
Open
soon…soon…

General information



  •  Great outdoor protection against rain, water splashes, direct sunlight, animals, …
  • Temperature and UV resitive

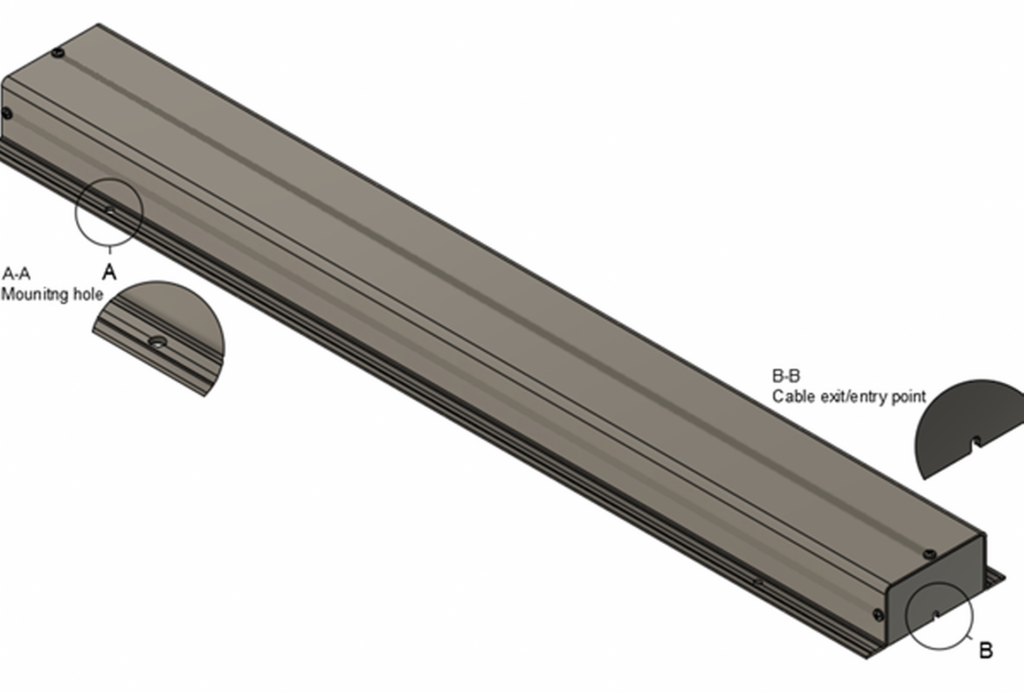

  • Several mounting alternatives (chemical installation or bolts)
  • Robust, reliable, and lightweight concept.

Characteristics



  • Metallic or white color
  • PVC material – UV stabilized or stainless steel 1.4301
  • Minamalist dimmensions
  • IP 66 or IP 671) protection
  • Wide temperature range -20 to +70⁰C
  • Inner insulation: Neoprene
  • Cable isolation: self-isolating design (does not require additional elements on the cable such as gland – the cable is squeezed down between the flange of the cover and the surface of the object on which the sensor is installed).

Product specification


Physical properties
Material
PVC, 1.4301
Protection grade
IP 44 / IP 661)

Dimensions (L x W x H)
750 (variable) x 120 x 45mm

Compatible sensors
SC-01, MSA-01, and SC-01/T

Weight
Approximately 25g + 1400g x GL2)
Packaging Typically integrated into the sensor packaging / Included in the sensor’s cardboard box
Quality Statement All products are 100% tested and calibrated at SYLEX
All products are manufactured according to ISO 9001:2015 and ISO 14001:2015

Notes:

  • 1) Additional materials such as “silicone” sealant are required to achieve the best performance.
  • 2) Gauge the length of the sensor in meters [m].
