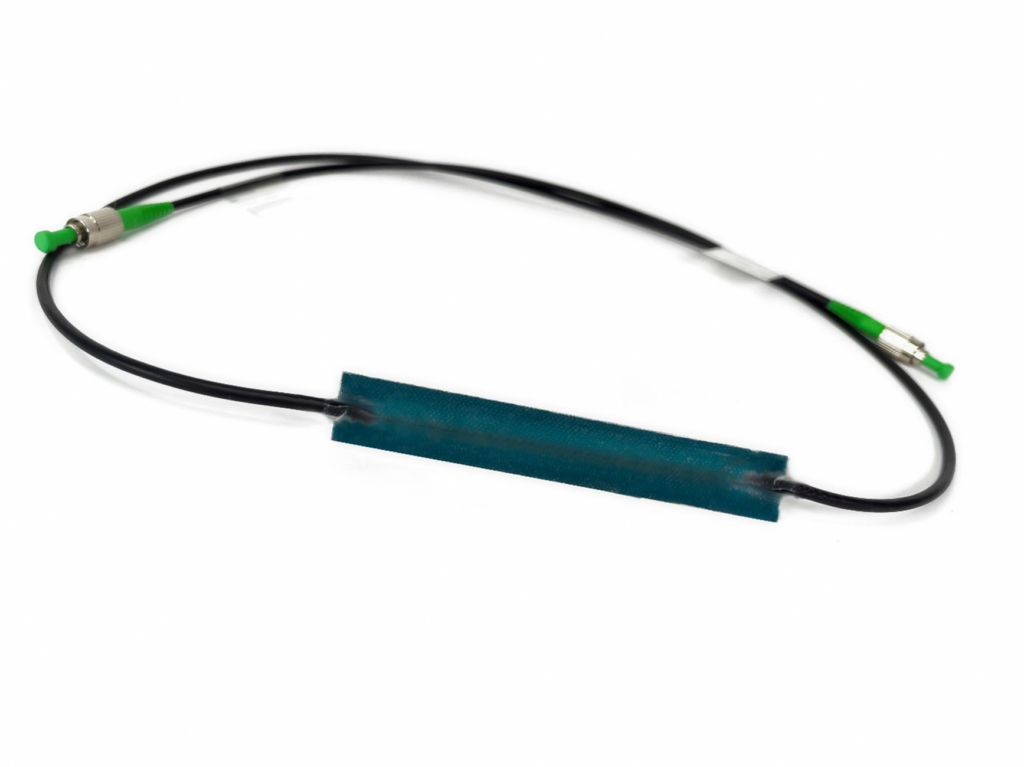

DSP-01 Dielectric Strain Patch

Type: Short-gauge composite strain sensor

Application:  surface mountable

Installation method: gluing

Pre-strain setup: At factory

Temperature compensation: External

Share this entry
  • DSP-01 is a dielectric single strain sensor based on composite material
  • Has high flexibility body adaptable to most surface curvatures
  • With excellent dimensions possible to adjust for certain and also challenging shapes
  • No need for adjusting pre-strain during installation
  • Strain changes detection
  • Composite deformations
  • Can be mounted on different surfaces, incl. pipelines, tanks, etc.
  • Adaptable to curved objects

Product Specification

Performance properties
Strain range 1)
Accuracy (guaranteed) 2)
<0.50% FS 3)
Accuracy (typical) 2)
<0.23% FS 3)
Precision (guaranteed) 2)
<0.25% FS 3)
Precision (typical) 2)
<0.15% FS 3)
Temperature compensation External
Temperature accuracy 2)
Temperature precision 2)
Temperature sensitivity
Strain sensitivity
Operating Temperature range
-20°C to +60°C
Ingress Protection rating
Physical properties
Housing material
GFRP (composite)
Anchoring distance
Dimensions (without cable) 4)
100mm x 15 x 5mm (L x W x H)
Weight (without cable)
Around 30g
Cable type
900µm PTFE/PEEK / 3mm Dyneema reinforced tubing
Cable length 5) 1mtr
Cable Bend Radius (dynamic)
Cable Bend Radius (static)
Connector type 6)
Mounting method
Packaging Cardboard box with dimensions: 370x290x45mm
Quality Statement DSP-01 sensor is compliant with IEC 61757-1-1:2016/Ed1.0 and IEC 61757:2018 All sensors are 100% tested and calibrated at SYLEX. Sensor is manufactured according to ISO 9001:2015 and ISO 14001:2015


  • 1)The strain range is established on the material properties of the substrate and installation method. The sensor may operate even in higher ranges
  • 2)Accuracy and Precision are established for each sensor under laboratory conditions and it includes hysteresis, nonlinearity, and repeatability of the sensor.
  • 3) FS: full scale range
  • 4) For further dimensions details see the product drawing
  • 5) Cable length is extendable on request
  • 6) Other connector types available on request
