Interconnections

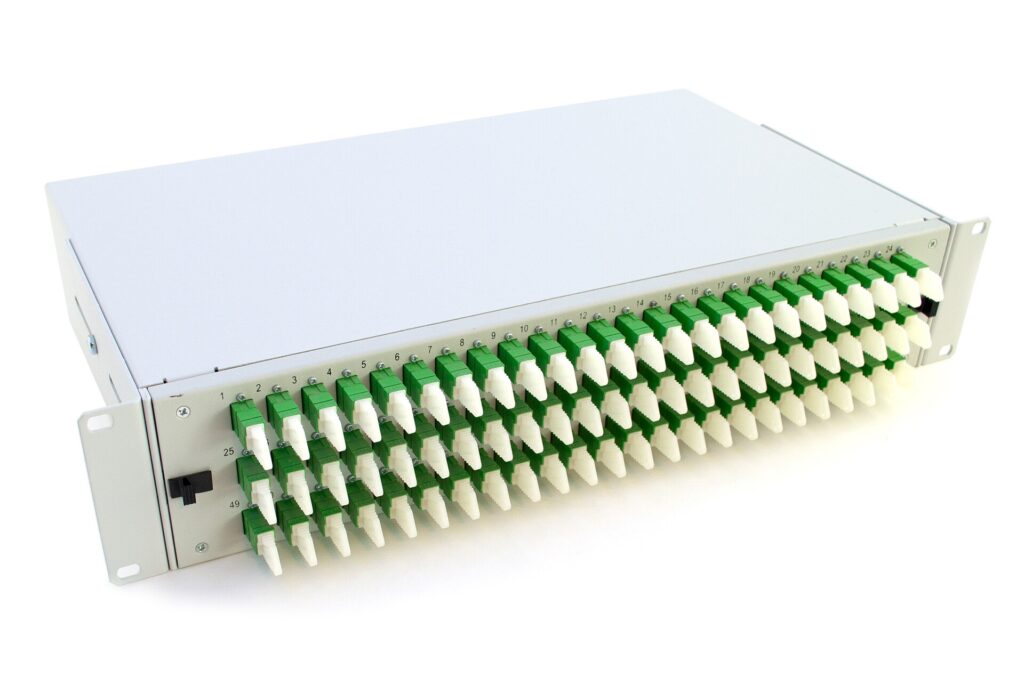

E2000 2U patch panel – fully loaded

2U 19” sliding patchpanel offered by our company with E2000 front panel with simplex holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. Fully loaded with low loss pigtails and E2000 simplex adapters. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.

Share this entry

Temperature range	Indoor controlled environment (-10°C/+60°C)
Parameters	Dimensions	482 x 251 x 88 mm (2U)
	Material	powdered coating steel
	Colour	light gray RAL7035
	Capacity	up to 72 fibers
	Cable entry ports	grommet/gland	4x PG13,5/M20 or 8x PG7/M12
		Duralino fanout®	4x Duralino fanout® size XL/L or 8x Duralino fanout® size S
	Insertion Loss (acc. IEC 61300-3-4 method B)	<0,25dB (@1310/1550nm)
	Return Loss (acc. IEC 61300-3-6)	>60dB(APC) (@1310/1550nm)
		details in section pigtails
Identification	Label with unique serial number.
Packaging	Each patchpanel in cardboard box, bulk pack on palette.

Product drawing
Product drawing
Product sheet
Product sheet
Product sheet
Product sheet
Product sheet
Product sheet
Cable Datasheet
Cable Datasheet
Packaging specification
Optical Connector cleaning procedure
Polarities
Cable installation
Cable installation
Cable installation

Description	Partnumber/Ordering code
PATCHPANEL 2U 48x E2000/APC OS2 fully loaded	O489-CC1-GR2
PATCHPANEL 2U 72x E2000/APC OS2 fully loaded	O729-CC1-GR2

Related products

Empty 1U patch panel with E2000 front panel

1U 19” sliding patchpanel offered by our company with E2000 front panel with simplex holes and back plates. Inside is a central spike, which is used as a fixing element for splice cassettes. It is easy to open them by a pair of plastic latches. Ejected patchpanel is hanging down in angle of 40 degrees and is easily accessible by operating staff.

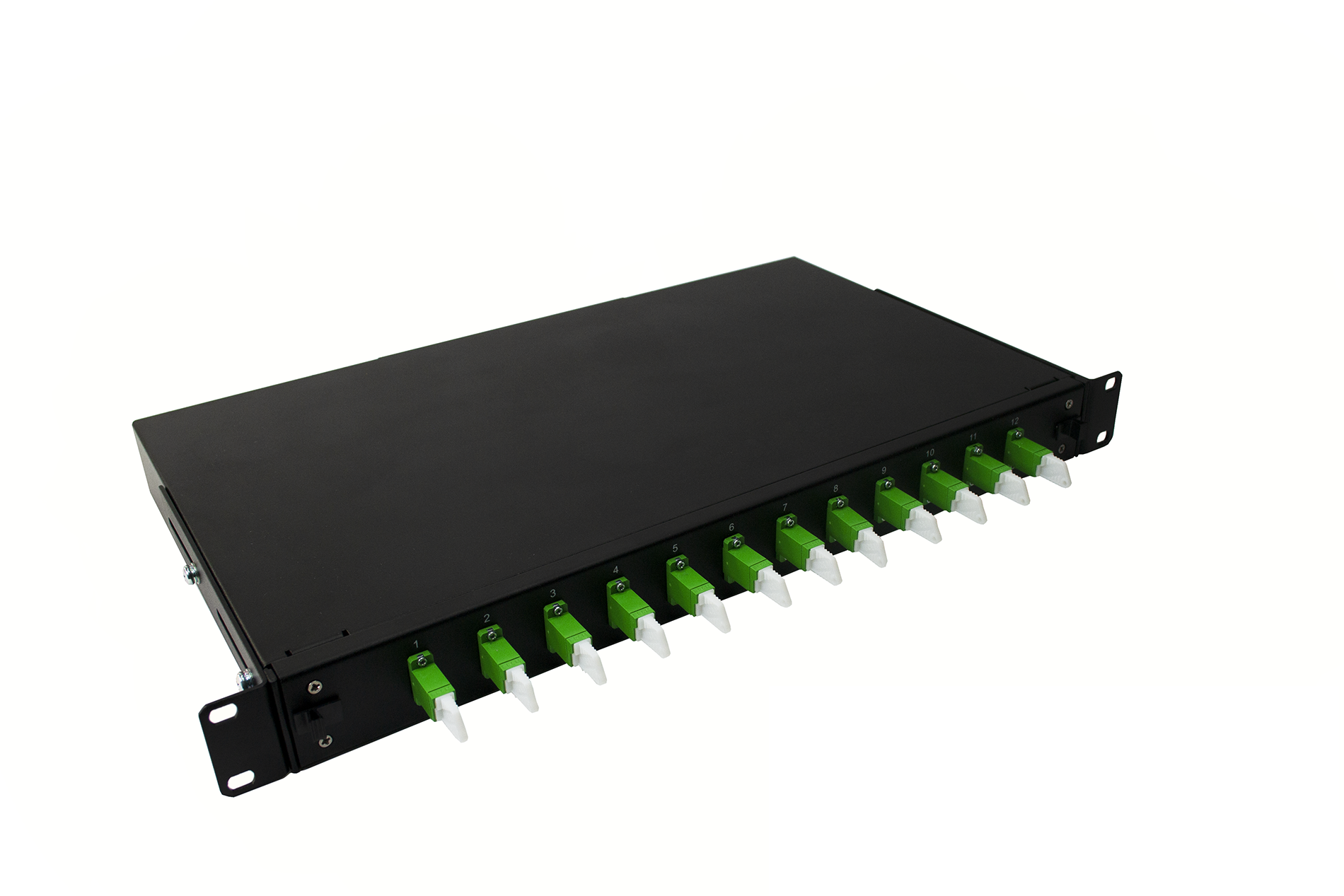

E2000 1U patch panel – with adapters
