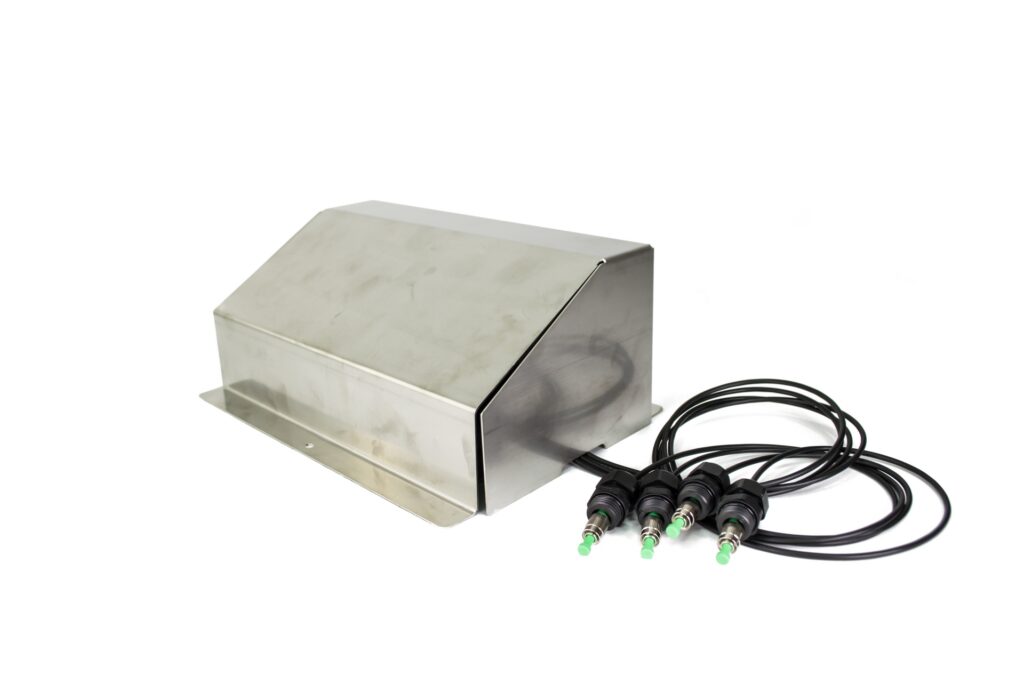

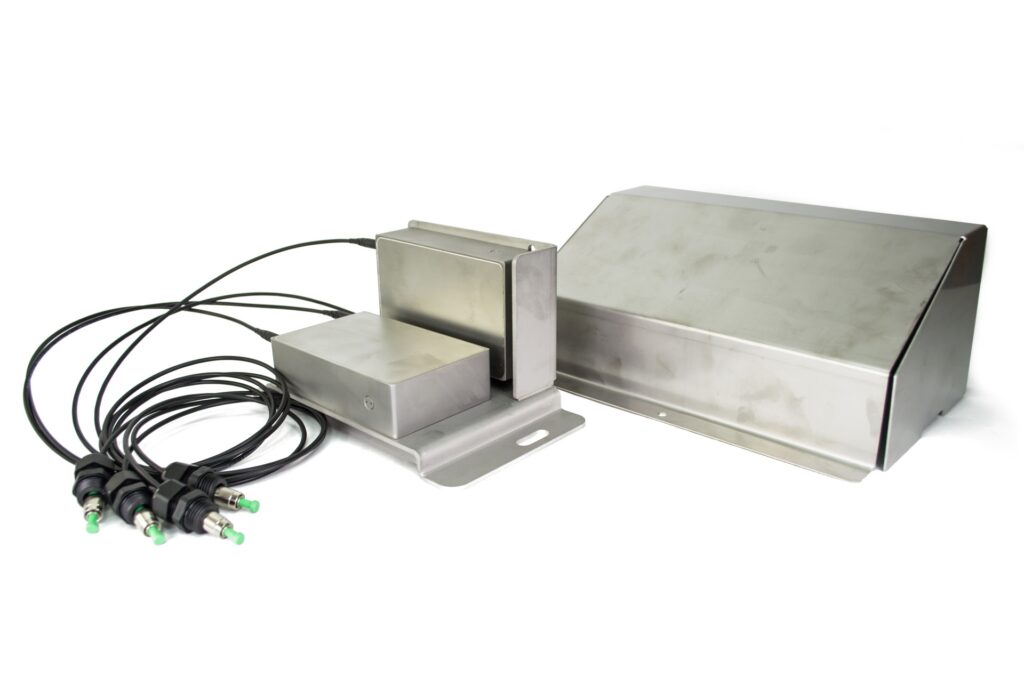

OPC-04 Outdoor Protective Cover for SAT-01 tilt meter

OPC-04 Outdoor Protective Cover for SAT-01 tilt meter

Downloads
Share this entry
Characteristics
  • Metallic or white color
  • Stainless steel 1.4301
  • Minamalist dimmensions
  • IP 66 or IP 671) protection
  • Wide temperature range -20 to +70⁰C
  • Inner insulation: none
  • Cable isolation: the cable entry/exit points are open to allow water to escape the inner space of the cover. Additional isolation material can be added to the cover to increase the IP protection of the solution

Product specification

Physical properties
Material
1.4301
Protection grade
IP 33 / IP 661)
Dimensions (L x W x H)
115 x 155 x 40mm
Compatible sensors
SAT-01
Weight
920g
Packaging Typically integrated into the sensor packaging / Included in the sensor’s cardboard box
Quality Statement All products are 100% tested and calibrated at SYLEX All products are manufactured according to ISO 9001:2015 and ISO 14001:2015
