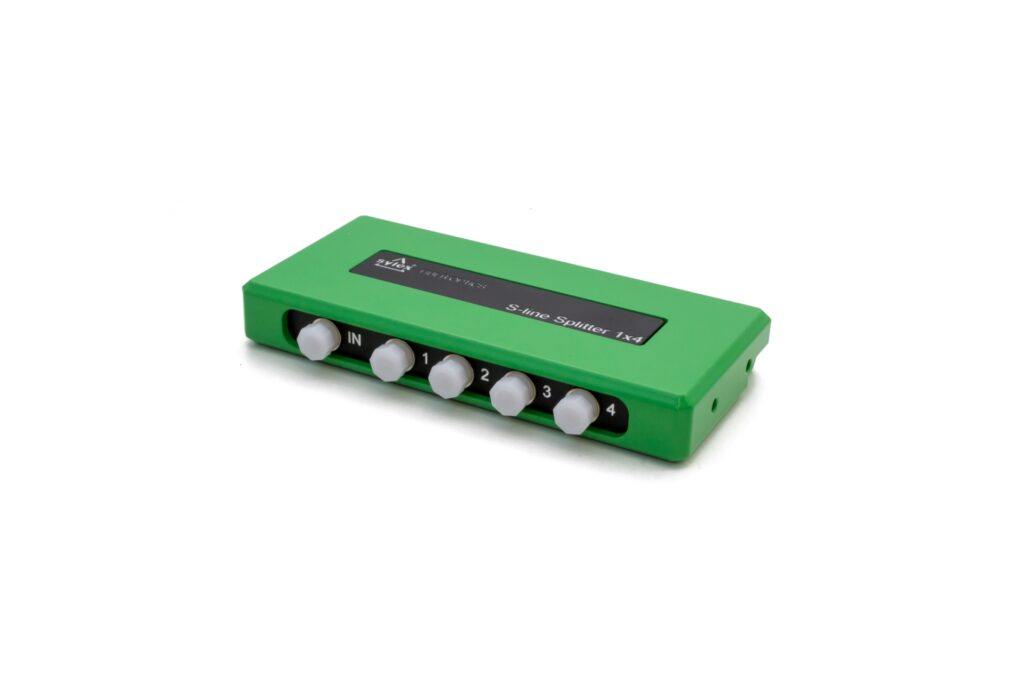

    SPL-04 S-line Splitter 1×4

    Type: Static / Dynamic

    Matrix: 1×4

    Compatibility: S-line Interrogators: Scan 800 (SCN-80), Scan 400 (SCN-40)

    Compatibility: S-line Switches: 1×4 (SWD-04, SWS-04), 1×16 (SWS-16), 1×36 (SWS-36)

    Downloads
    Markets
    Ask a question
    Share this entry
    Characteristics
    • S-line Splitter 1×4 is a passive device for coupling of four optical cable lines into one optical channel.
    • S-line Splitter 1×4 can be installed anywhere within the cable connection network as standalone unit or stacked on the S-line modules.
    Accessories
    • Standard extension patchcord (SPA-02)

    3D View

    Product Specification

    Performance propertiesNumber of inputs1
    Number of outputs4
    Wavelength range1260-1650nm
    Insertion loss (guaranteed)
    		7,4dB
    Insertion loss (typical)7,0dB
    Temperature range-5 up to +50°C
    Physical propertiesDimensions150x70x21mm
    Weight (without cable)0,40kg
    Connector typeFC/APC
    PackagingCardboard box with dimensions: 362x283x44mm
    Quality StatementAll splitters are 100% tested at SYLEX
    Splitter is manufactured according to ISO 9001:2008 and ISO 14001:2004
