Product specification
| Performance properties | Relative Humidity range | 0-99% | |
| Accuracy (guaranteed) 1) | <3% FS3) | ||
Accuracy (typical) 1) | <1.5% FS3) | ||
| Precision (guaranteed) 2) | <1.25% FS3) | ||
| Precision (typical) 2) | <0.75% FS3) | ||
| Temperature sensitivity | ~10pm/K | ||
| Relative Humidity Sensitivity | ~3pm/rH% | ||
| Operating Temperature range 4) | 0°C to +60°C | ||
| Temperature range 4) | -20°C to +60°C | ||
| Ingress Protection rating | IP 42 | ||
| Physical properties | Housing material | PEEK | |
Other housing materials 5) | PTFE, 316L – 1.4404, 304 – 1.4301 | ||
| Dimensions (without cable) 6) | Ø6mm x 80mm | ||
| Weight (without cable) | < 10g | ||
| Cable type | 3mm Dyneema reinforced cable, 900µm tubing | ||
| Cable length 7) | 1m | ||
| Cable Bend Radius (dynamic) | 40mm (for 3mm cable) | ||
| Cable Bend Radius (static) | 30mm (for 3mm cable) | ||
| Connector type 8) | FC/APC | ||
| Mounting method | Clamping to an object | ||
| Packaging | Cardboard box with dimensions: 370x290x45mm | ||

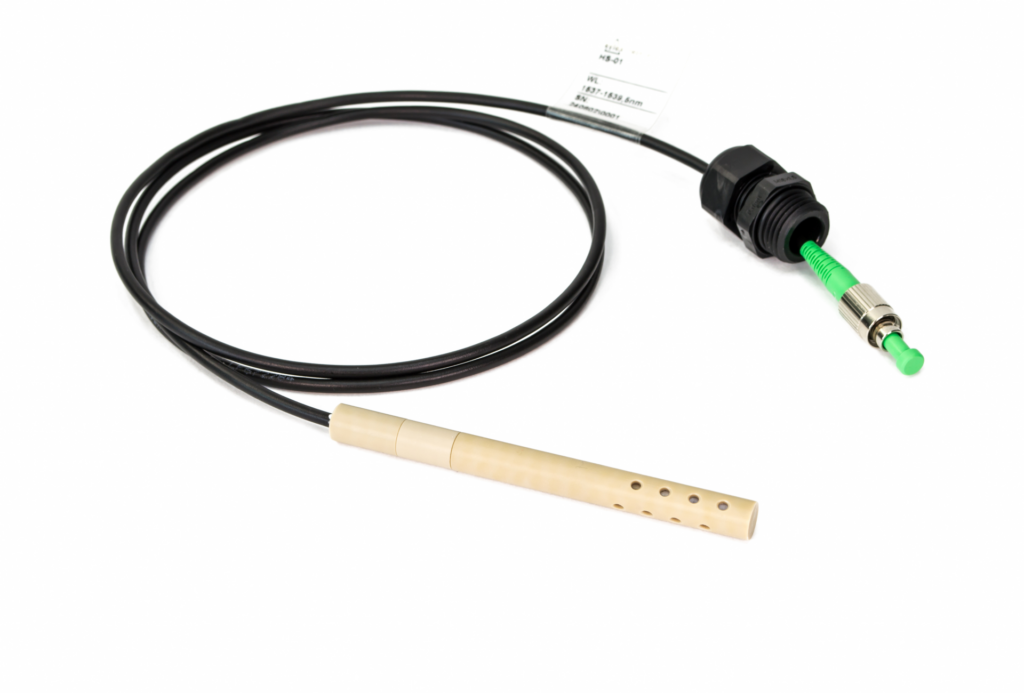

| Quality Statement | The HS-01 sensor is compliant with IEC 61757-2-1:2021, and IEC 61757:2026 | ||
Notes:
- 1) Accuracy is established for each sensor under laboratory conditions, and it includes hysteresis, non-linearity, and repeatability of the sensor. The guaranteed value is determined based on the largest absolute error found in this sample. The typical value is determined based on the average absolute error found in this sample.
- 2) Precision is established on a batch basis and includes hysteresis, non-linearity, repeatability, and reproducibility of the sensor. The guaranteed value is determined based on the largest absolute error found in this sample. The typical value is determined based on the average absolute error found in this sample.
- 3) FS: full-scale measurement range.
- 4) With no icing or condensation.
- 5) The housing material can be utilized for different applications
- 6) See the product drawing for further dimensional details.
- 7) Cable length is extendable on request
- 8) Other connector types available on request
