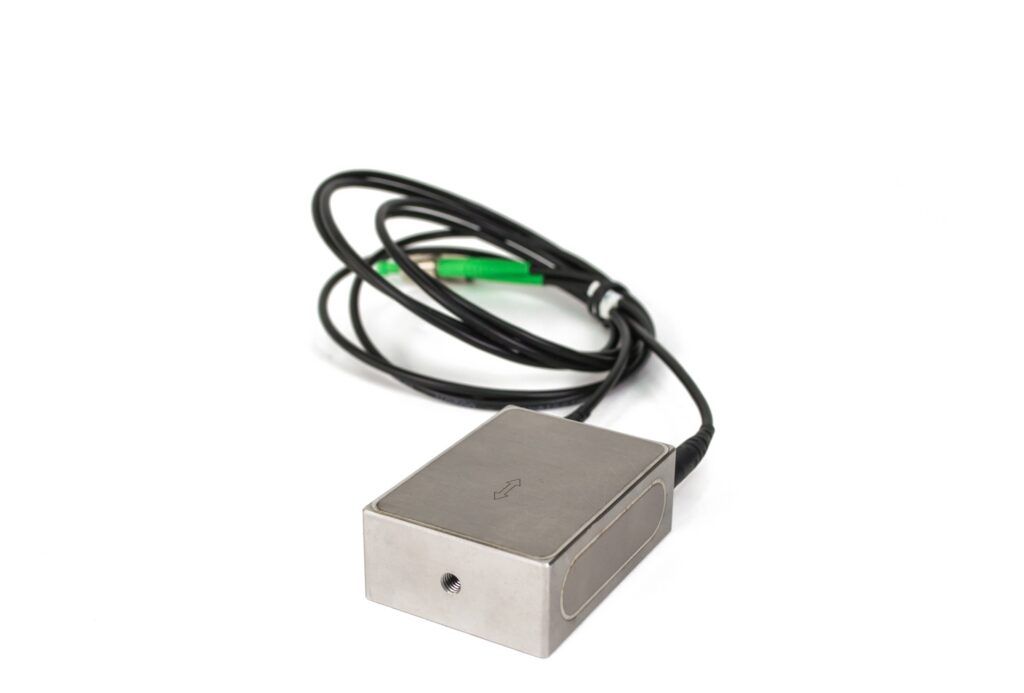

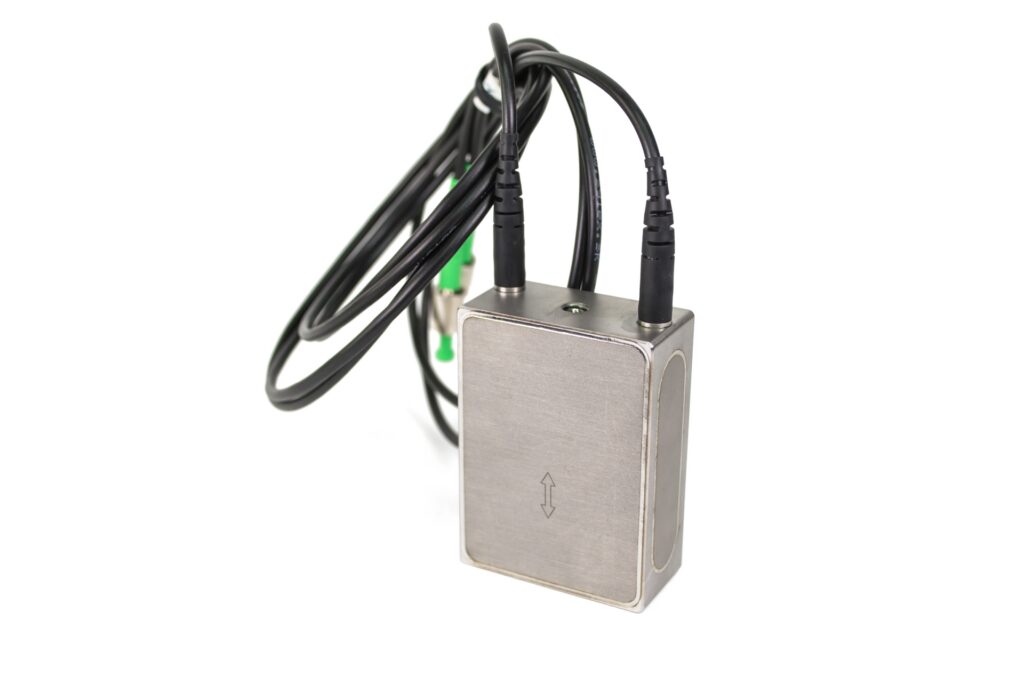

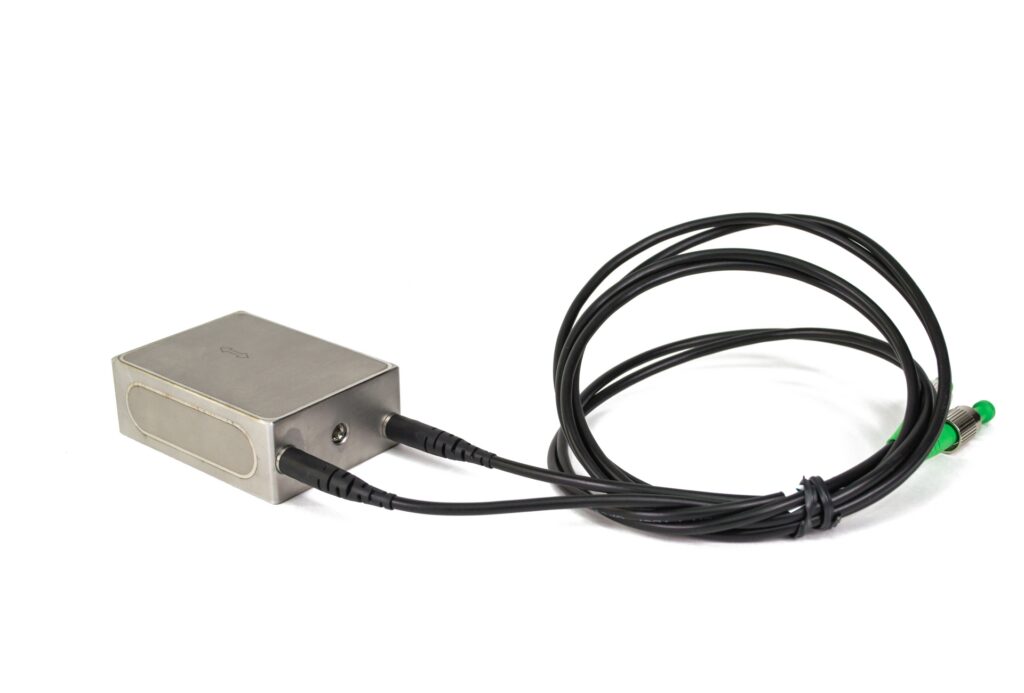

    SAA-02 Single Axis Accelerometer

    Type:  Fiber Bragg Grating-based single-axis accelerometer, specifically designed to measure acceleration values up to 30g with high sensitivity and large frequency bandwidth.

    Application: Can be mounted on different surfaces including walls, etc.

    Installation method: Screws or using a mounting block

    Temperature compensation: External

    Na stiahnutie
    Trhy
    Položiť otázku
    Share this entry
    Charakteristika
    • Fiber Bragg Grating-based single-axis accelerometer, specifically designed to measure acceleration values up to 30g with high sensitivity and large frequency bandwidth.
    • The ruggedized sensor will survive harsh conditions of indoor and outdoor applications and can cope with shocks up to 70g.
    Aplikácie
    • Can be mounted on different surfaces including walls, etc.
    • Robust stainless steel
    • Double-ended
    • Large frequency bandwidth (1 – 1000Hz)
    • High sensitivity

    Product Specification

    Performance properties
    Measurement range
    ±30g
    Sensitivity
    		 90pm/g ± 10pm/g
    Frequency range
    		 1 – 1000Hz
    Maximum shock
    		 70g
    Sensor resonance
    > 1,3 kHz
    Operating Temperature range
    -20°C to +60°C
    Ingress Protection rating
    IP 67
    Physical properties
    Housing material
    Duplex – 1.4462
    Anchoring bolt
    		 M5 / 5Nm
    Dimensions (without cable)1)
    		 45 x 62 x 22 mm
    Weight (without cable)
    		 280g
    Cable type
    3mm reinforced cable
    Cable length2) 1mtr
    Cable Bend Radius (dynamic)
    40mm
    Cable Bend Radius (static)
    30mm
    Connector type3)
    		 FC/APC
    Mounting method Screws or using a mounting block
    Packaging Cardboard box – dimensions depending on the final configuration.
    Quality Statement The sensor is compliant with IEC 61757-1-1:2016/Ed1.0 and IEC 61757:2018 All sensors are 100% tested and calibrated at SYLEX. The sensor is manufactured according to ISO 9001:2015 and ISO 14001:2015

    Notes:

    • 1) For further dimensions details see the product drawing
    • 2) Cable length is extendable on request
    • 3) Other connector types available on request
