Product Specification
| Performance properties |
Measurement range |
±2g
|
|
|
Sensitivity |
1350pm/g ± 100pm/g | ||
|
Frequency range |
0 – 160Hz | ||
|
Maximum shock |
10g | ||
|
Sensor resonance |
> 240Hz
|
||
| Operating Temperature range |
-40°C to +60°C
|
||
| Number of FBGs |
2
|
||
| Occupied bandwidth |
~12nm
|
||
| Ingress Protection rating |
IP 67
|
||
| Physical properties |
Housing material |
Duplex – 1.4462
|
|
|
Anchoring bolt |
M5 / 5Nm | ||
|
Dimensions (without cable)2) |
50 x 55 x 220 mm | ||
|
Weight (without cable) |
400g | ||
|
Cable type |
3mm reinforced cable
|
||
| Cable length3) | 1mtr | ||
| Cable Bend Radius (dynamic) |
40mm
|
||
| Cable Bend Radius (static) |
30mm
|
||
|
Connector type4) |
FC/APC | ||

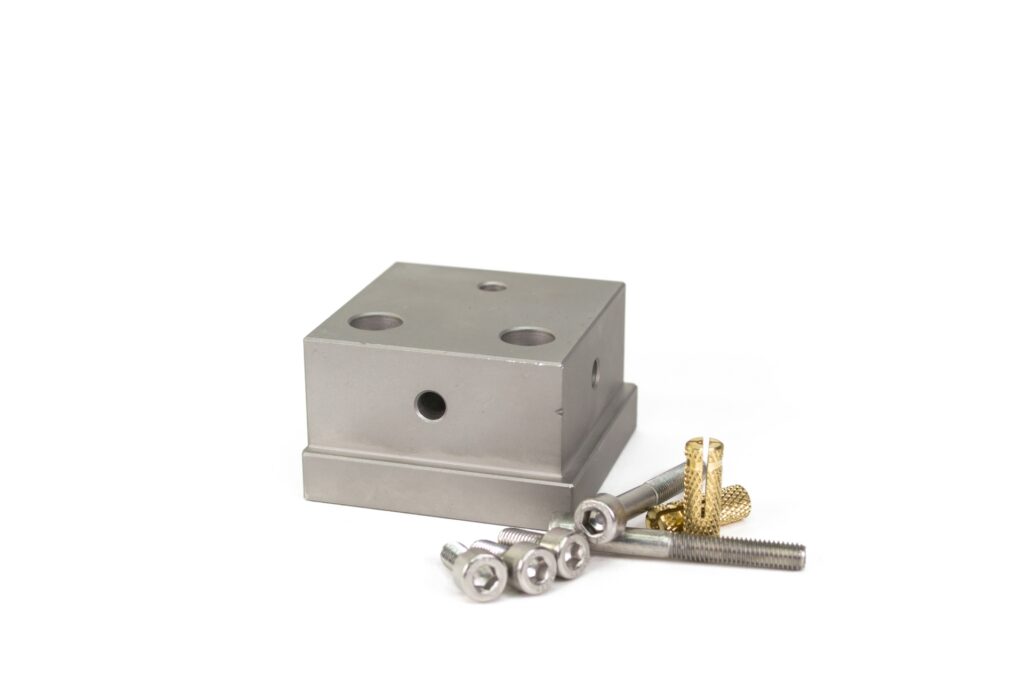

| Mounting method | Screws or using a mounting block | ||
| Packaging | Cardboard box – dimensions depending on the final configuration. | ||
| Quality Statement | The sensor is compliant with IEC 61757-1-1:2016/Ed1.0 and IEC 61757:2018 All sensors are 100% tested and calibrated at SYLEX. The sensor is manufactured according to ISO 9001:2015 and ISO 14001:2015 | ||
Notes:
- 1) The sensor needs to be unlocked before measurement, please, refer to the installation instructions.
- 2) For further dimensions details see the product drawing
- 3) Cable length is extendable on request
- 4) Other connector types available on request
