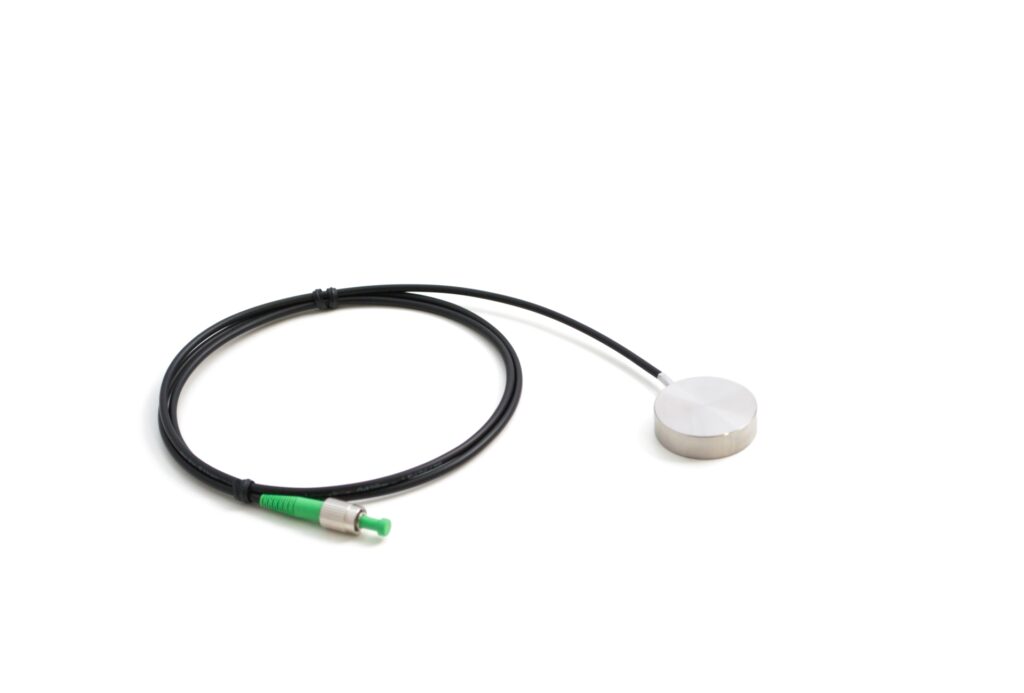

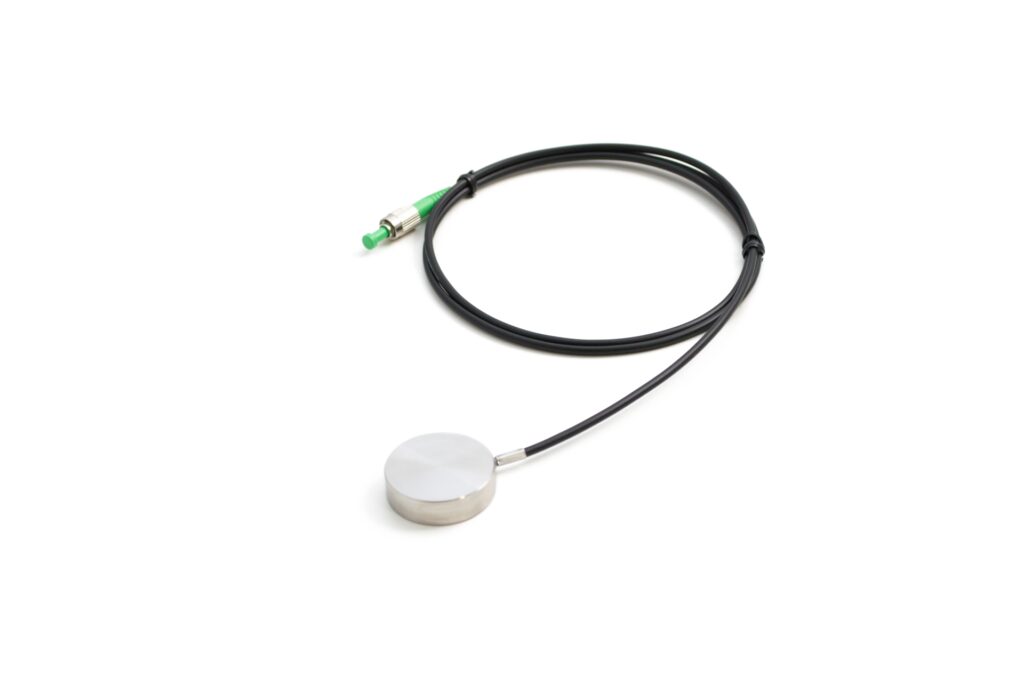

Product Specification
| Performance properties |
Temperature range |
-20°C up to +60°C
|
|
| Temperature accuracy (guaranteed)1) | 0,8% FS3) | ||
| Temperature accuracy (typical)1) | 0.65% FS3) | ||
| Temperature precision (guaranteed)2) | ±0,30% FS3) | ||
| Temperature precision (typical)2) | ±0,20% FS3) | ||
| Temperature resolution | 0,1°C | ||
| Temperature sensitivity | 11 pm/°C | ||
| Ingress Protection rating | IP 66 | ||
| Physical properties |
Housing material |
Stainless steel SS316L and copper
|
|
| Dimensions (without cable)3) | Ø34mm x 9.5mm | ||
| Weight (without cable) | 100g | ||
| Cable type | 3mm Dyneema tubing | ||
| Cable length4) | 1mtr | ||
| Cable Bend Radius (dynamic) | 30mm | ||
| Cable Bend Radius (static) | 15mm | ||
| Connector type5) | FC/APC | ||
| Mounting method | Direct surface mounting | ||
| Packaging | Cardboard box with dimensions: 370x290x45mm | ||
| Quality Statement | STS-03 sensor is compliant with IEC 61757:2018 and IEC 61757-2-1:2021. All sensors are 100% tested and calibrated at SYLEX. Sensor is manufactured according to ISO 9001:2008 and ISO 14001:2004 | ||
Notes:
- 1) Accuracy is established for each individual sensor under laboratory conditions and it includes hysteresis, non-linearity, and repeatability of the sensor.
- 2) Precision is established on a batch basis and it includes hysteresis, non-linearity, repeatability and reproducibility of the sensor.
- 3) FS: full scale range
- 4) For further dimensions details see the product drawing.
- 5) Cable length is extendable on request.
- 6) Other connector types available on request.
