Product Specification
| Performance properties |
Strain range |
±1500μɛ
|
|
|
Accuracy (guaranteed)1) |
<0.50% FS3) | ||
|
Accuracy (typical)1) |
<0.23% FS3) | ||
|
Precision (guaranteed)2) |
<0.25% FS3) | ||
|
Precision (typical)2) |
<0.15% FS3)
|
||
| Temperature compensation | Integrated4) | ||
| Temperature accuracy 1) | <1°C | ||
|
Temperature precision2) |
±0.3°C | ||
|
Temperature sensitivity (for temp.compensated version) |
28pm/°C | ||
|
Strain sensitivity |
1,2pm/µɛ | ||
| Operating Temperature range | -20°C to +60°C | ||
| Physical properties |
Housing material |
0.2mm thick SS304 – 1.4301
|
|
|
Anchoring distance |
n /a | ||
|
Dimensions (without cable)5) |
55x15x0,2mm | ||
|
Weight (without cable) |
~10g | ||
|
Cable type |
3mm Dyneema reinforced cable / 900μm PTFE
|
||
| Cable length6) | 1mtr | ||
| Cable Bend Radius (dynamic) |
40mm
|
||
| Cable Bend Radius (static) |
30mm
|
||
|
Connector type7) |
FC/APC | ||
| Mounting method | Spot welding or chemical adhesive | ||
| Packaging | Cardboard box with dimensions: 370x290x45mm | ||

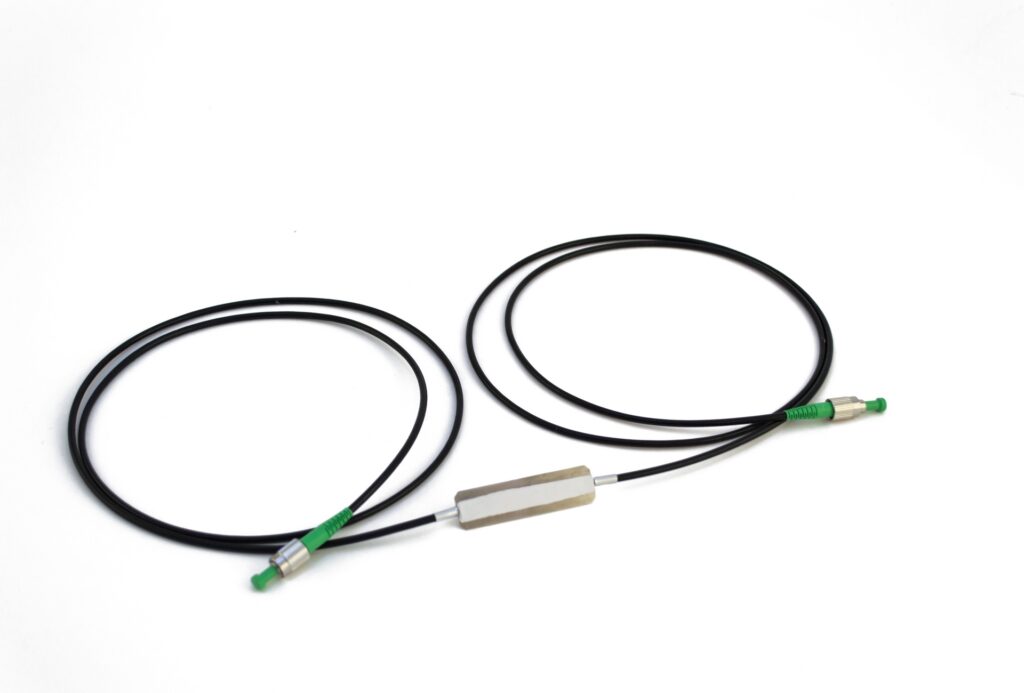

| Quality Statement | SWA-00 sensor is compliant with IEC 61757-1-1:2020, IEC 61757-2-1:2021 and IEC 61757:2018 All sensors are 100% tested and calibrated at SYLEX. Sensor is manufactured according to ISO 9001:2008 and ISO 14001:2004 | ||
Notes:
- 1) Accuracy is established for each individual sensor under laboratory conditions and it includes hysteresis, non-linearity and repeatability of the sensor.
- 2) Precision is established on a batch basis and it includes hysteresis, non-linearity, repeatability and reproducibility of the sensor.
- 3) FS: full scale range
- 4) Optional
- 5) For further dimensions details see the product drawing
- 6) Cable length is extendable on request
- 7) Other connector types available on request
