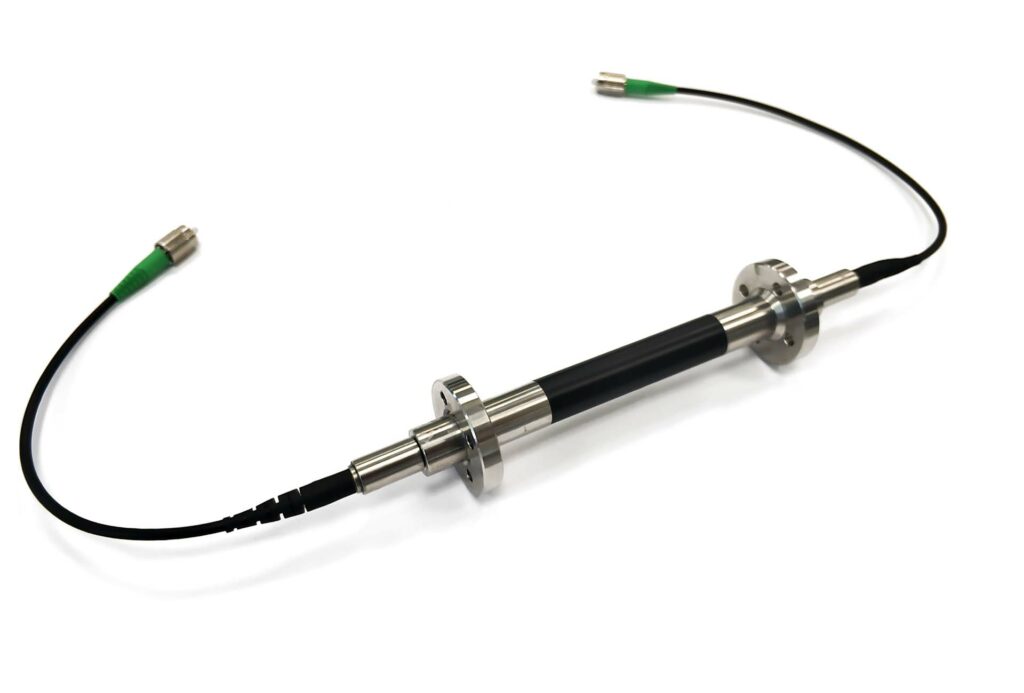

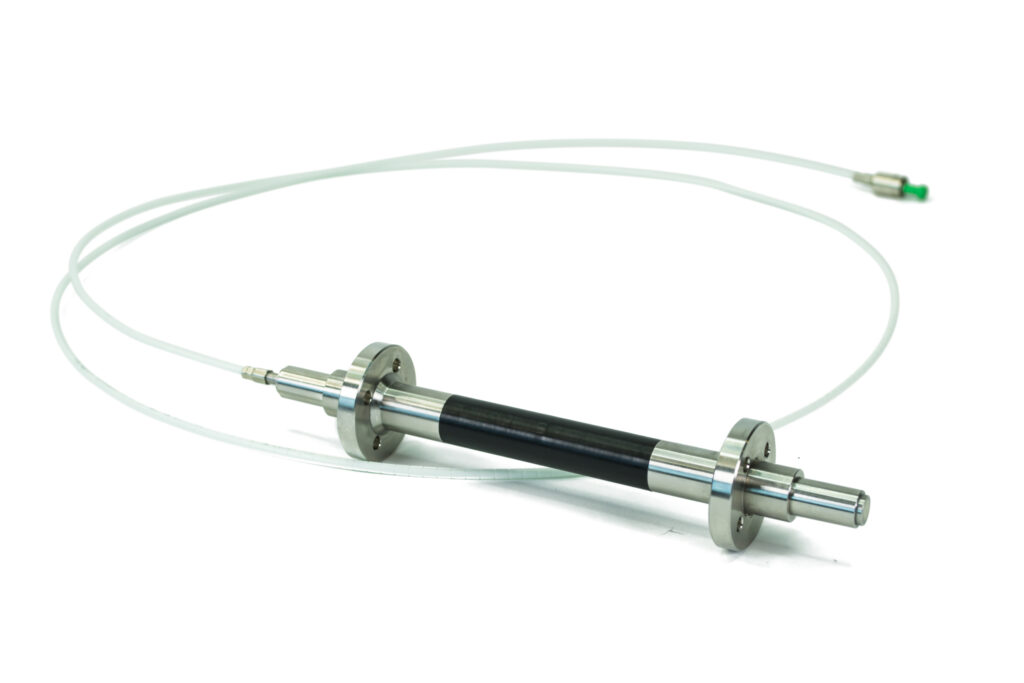

Product Specification
| Performance properties |
Strain range1) |
±5000μɛ [+/- 500µm or 0-1000µm]
|
|
|
Accuracy (guaranteed)2) |
<0.50% FS5) [<5μm] | ||
|
Accuracy (typical)2) |
<0.23% FS5) [<3μm] | ||
|
Precision (guaranteed)3) |
<0.25% FS5) [<3μm] | ||
|
Precision (typical)4) |
<0.15% FS5) [<1.5μm]
|
||
|
Strain sensitivity |
1,2pm/μɛ | 12pm/μm
|
||
| Temperature compensation | External | ||
|
Operating Temperature range |
-20°C to +60°C | ||
|
Ingress Protection rating |
IP 67
|
||
| Physical properties |
Housing material |
Stainless steel SS316L/SS304
|
|
|
Anchoring distance |
~110mm | ||
|
Dimensions (without cable)5) |
Ø34mm x 174mm | ||
|
Weight (without / with cable) |
260 g | ||
|
Cable type |
3mm Dyneema reinforced cable
|
||
| Cable length6) | 1mtr | ||
| Cable Bend Radius (dynamic) |
40mm
|
||
| Cable Bend Radius (static) |
30mm
|
||
|
Connector type7) |
FC/APC | ||
| Mounting method | Embedding | ||
| Packaging | Cardboard box with dimensions: 370x290x45mm | ||
| Quality Statement | ES-03 sensor is compliant with IEC 61757-1-1:2020 and IEC 61757:2018. All sensors are 100% tested and calibrated at SYLEX. Sensor is manufactured according to ISO 9001:2008 and ISO 14001:2004 | ||
Notes:
- 1) Calibrated in µm on demand
- 2) Accuracy is established for each individual sensor under laboratory conditions and it includes hysteresis, non-linearity and repeatability of the sensor.
- 3) Precision is established on a batch basis and it includes hysteresis, non-linearity, repeatability and reproducibility of the sensor.
- 4) FS: full scale range
- 5) For further dimensions details see the product drawing
- 6) Cable length is extendable on request
- 7) Other connector types available on request
