Product Specification
| Performance properties | Number of channels | 4 | |
| Scanning frequency 1) | up to 800Hz / channel | ||
| Wavelength range | 80nm (1510-1590nm) | ||
| Temperature range | Operational | -5°C to +50°C | |
| Storage | -10°C to +60°C | ||
| Dynamic range 2) | 30dB | ||
| Power budget 3) | @ Constant gain | 18dB | |
| Accuracy | @ 25°C // @ FOTR 4) | TBT // ±13pm | |
| Repeatability (Precision) | @ 25°C // @ FOTR 4) | 6pm // 12pm | |
| Resolution | 1pm | ||
| Laser Class | IEC 60825-1 | 1 | |
| Physical properties | Dimensions (without cable) | 300x200xm84m | |
| Weight (without cable) | 4,27kg | ||
| Connector type | FC/APC | ||
| Power consumption | 6W (9-18V) (universal adapter included) | ||
| Interface | USB | ||

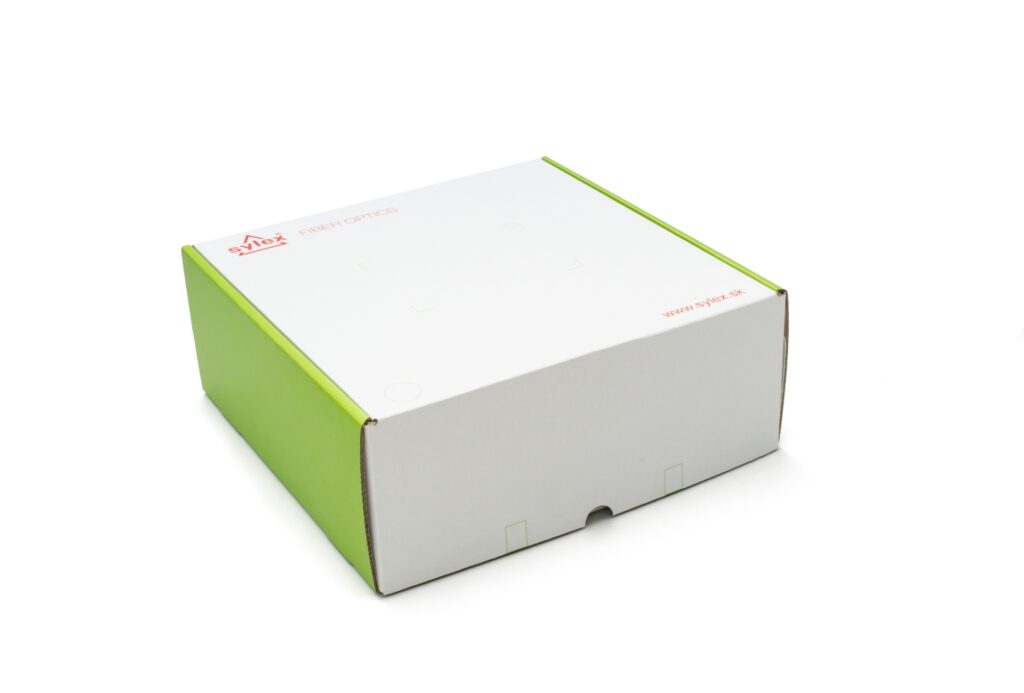

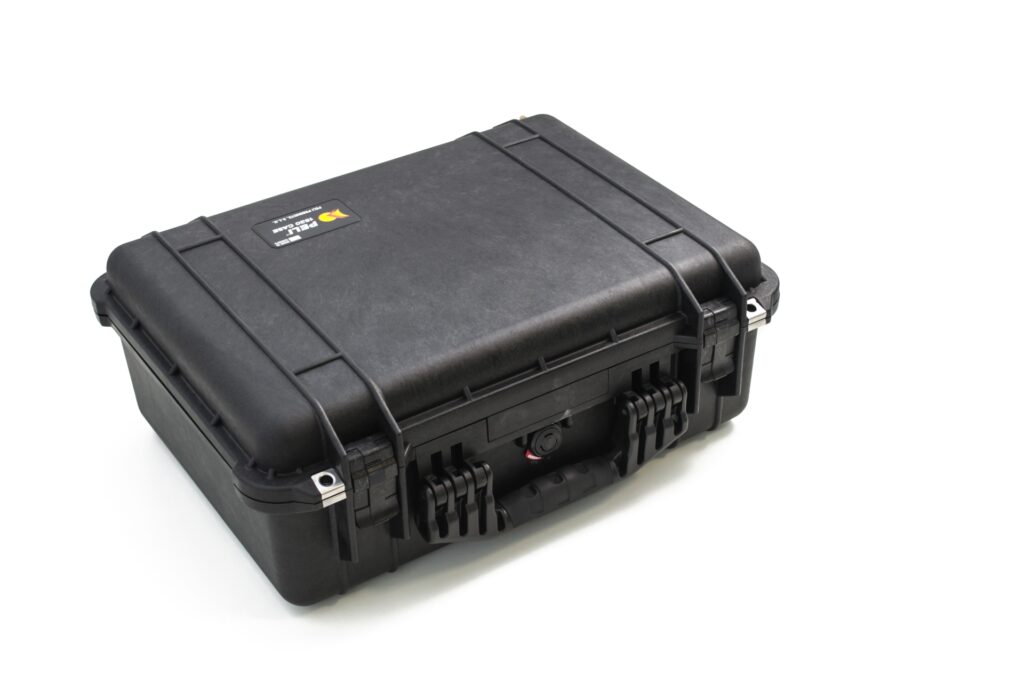

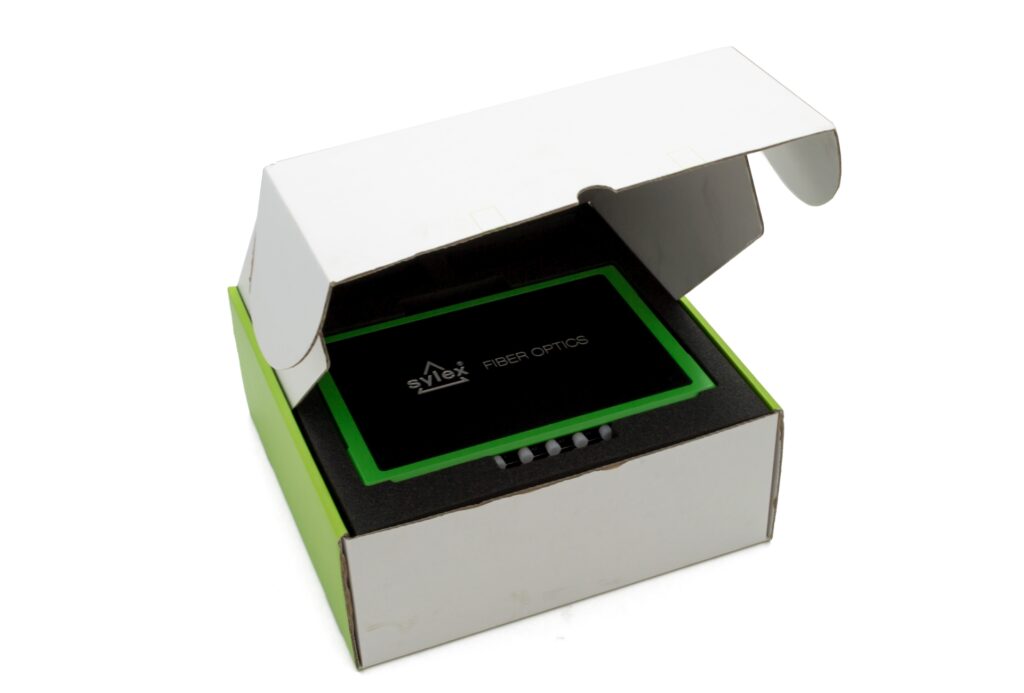

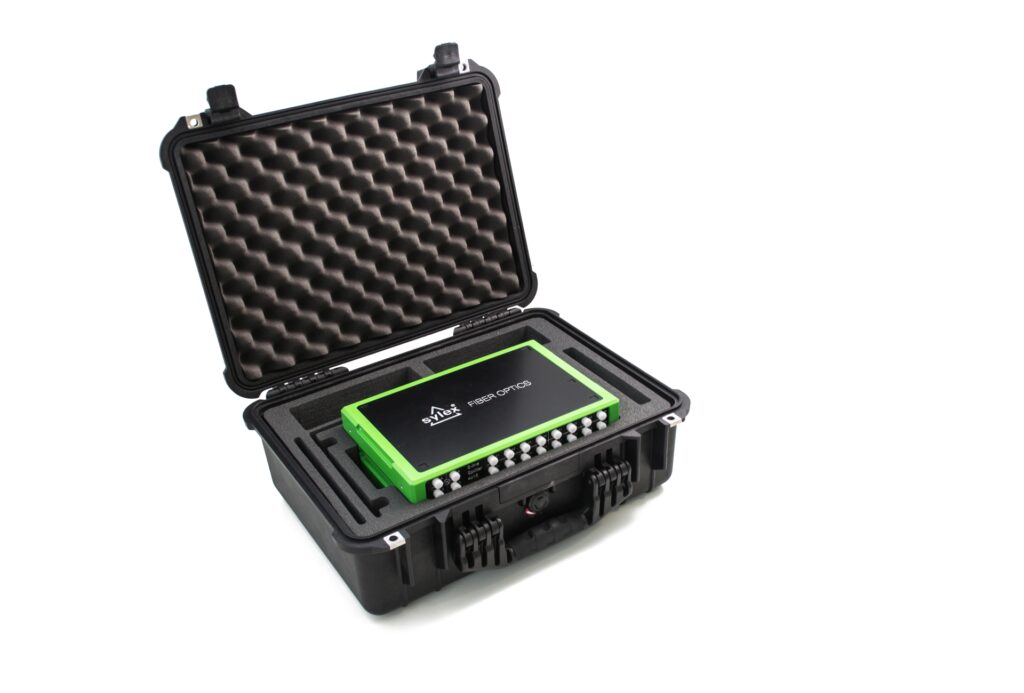

| Packaging | Cardboard box with dimensions: 364x351x140mm, Optional – Ruggedized transportation case with dimensions: 502x401x188mm | ||
| Quality Statement | All interrogators are 100% tested at SYLEX Interrogator is manufactured according to ISO 9001:2008 and ISO 14001:2004 | ||
Notes:
- 1) Slower data logging is available through down sampling.
- 2) Maximum attenuation that can be inserted in the optical line between the interrogator and the measured FBG, or series of FBG on a same power level.
- 3) Maximum attenuation that can be inserted between the FBG with the highest and lowest power level in one channel.
- 4) FOTR = Fully Operational Temperature Range (-5°C to +50°C).
- All parameters tested with FBG’s FWHM 200pm and 40% Reflectivity.
