    SPC-02 S-line Comp

    Type: Industrial PC

    Communication: USB, LAN, HDMI, WiFi

    OS: Windows 10

    Compatibility: S-line Interrogators: Scan 800 (SCN-80) and Scan 400 (SCN-40)

    Na stiahnutie
    Trhy
    Položiť otázku
    Share this entry
    Charakteristika

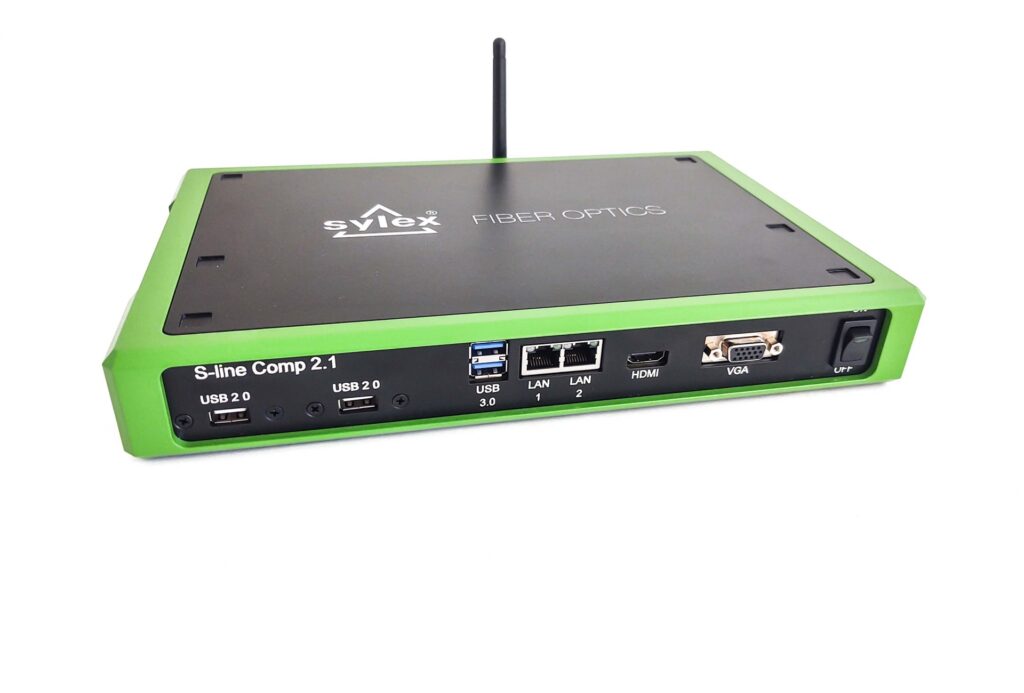

    • S-line Comp 2.2 is the successor of the previous S-line Comp generation with enhanced performance and options.
    • S-line Comp 2.2 features an industrial-grade computer with a WOL function and Wi-Fi option packaged into an S-line family-compatible module.
    • S-line Comp 2.2 is supplied with preinstalled Sentinel 2.0 (SentinelD) automated data acquisition and evaluation software.
    Príslušenstvo
    • Sentinel 2.0 – automated data acquisition and evaluation software
    • Wifi antenna
    • Power adapter, 90-264V input range, 12V/2A output, with EU-UK-US compatible sockets

    3D pohľad
    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.

    Product specification

    Performance propertiesCPU:Intel Pentium N4200, 4×1,1GHz (2,5Ghz turbo), 2MB Cache
    Display:Intel® HD Graphics 500/505
    Memory:8GB DDR3 1866MHz CL13
    Ethernet:Intel® Gigabit Ethernet i211AT/i210IT, 10/100/1000Base-TX, RJ-45
    WiFi:Wi-Fi 5 802.11ac 2×2 Dualband + Bluetooth
    Storage:SATA III, 128GB SSD
    OS:Windows 10 IoT LTSC 2019
    Physical propertiesDimensions (without cable)300x200x42mm
    Weight (without cable)2,02kg
    Power consumption9-18V, 20W
    Interface1x USB 2.0, 2xUSB 3.2 GEN 1, Wi-Fi 5 802.11ac
    Display portHDMI 1.4b Supports 3840 x 2160 (4K x 2K)

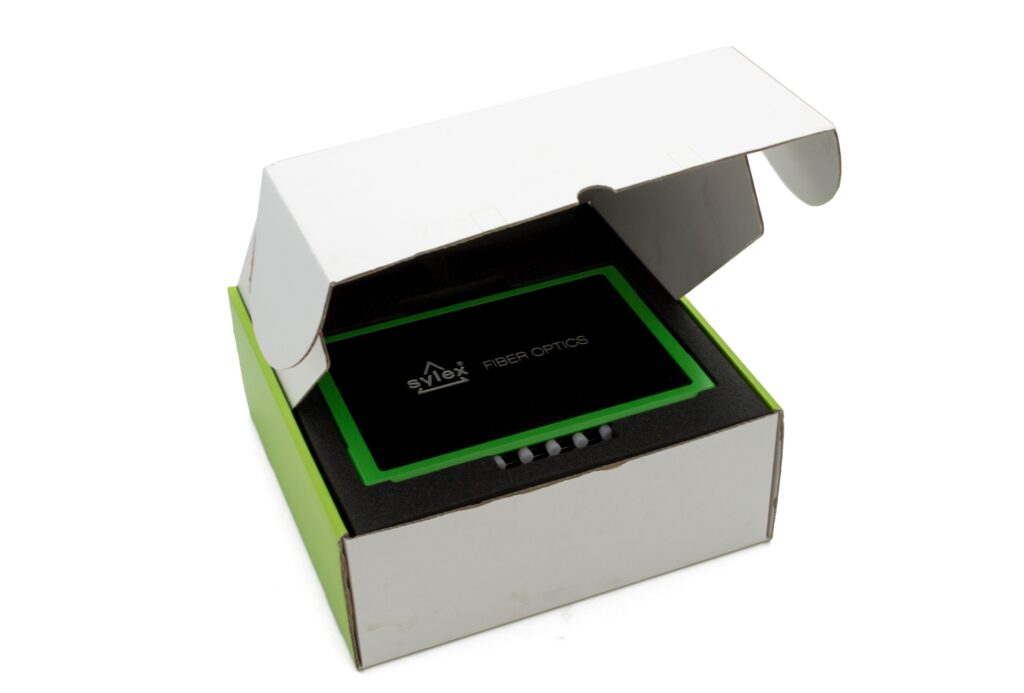

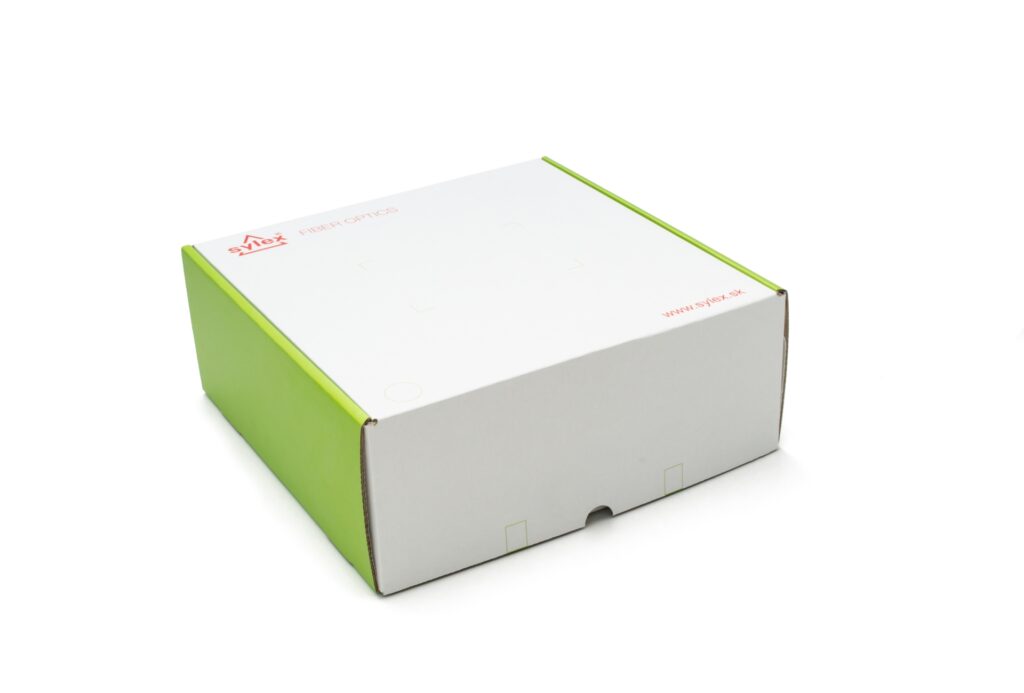

    PackagingCardboard box with dimensions: 364x351x140mm

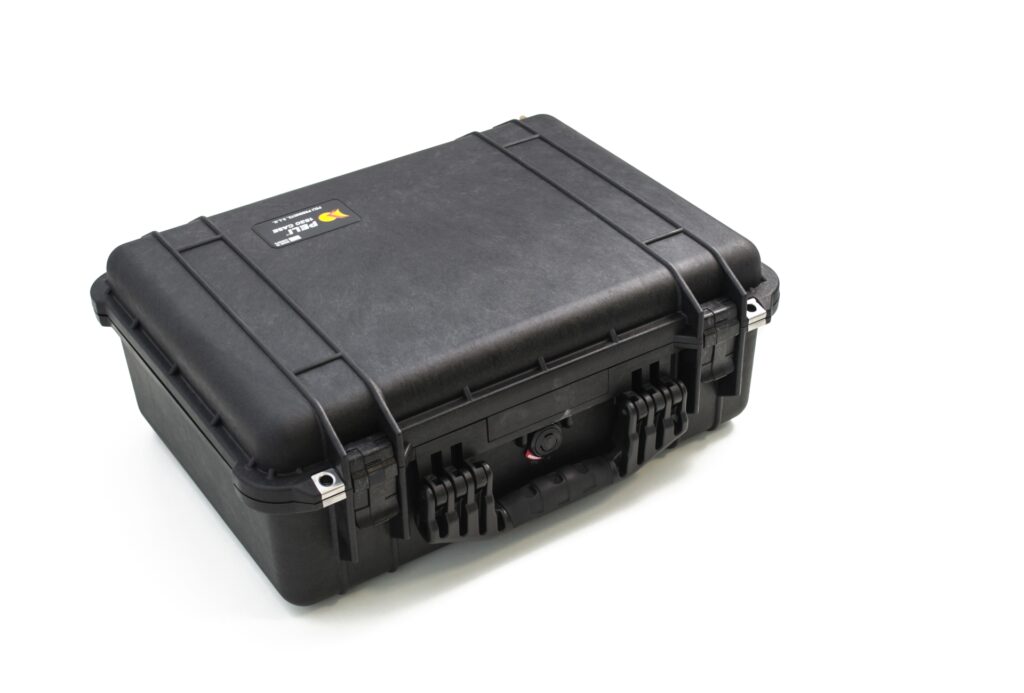

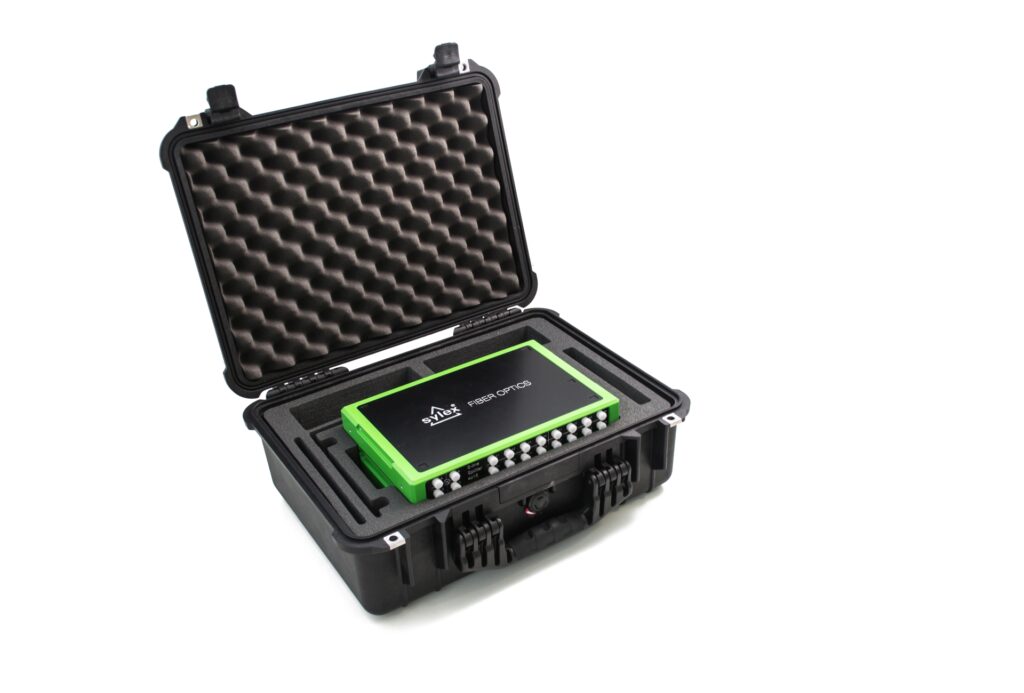

    Optional – Ruggedized transportation case with dimensions: 502x401x188mm
    Quality StatementAll computers are 100% tested at SYLEX
    Computer is manufactured according to ISO 9001:2008 and ISO 14001:2004

    Súvisiace produkty

    SCN-80 S-line Scan 800

    Type: Static/Dynamic

    Wavelength range: 80nm

    Sampling rate: up to 5 kHz

    Nr. Of optical channels: 1
